Specifications
small smart solar charge controller1. Waterproof class: IP67
2.Integra

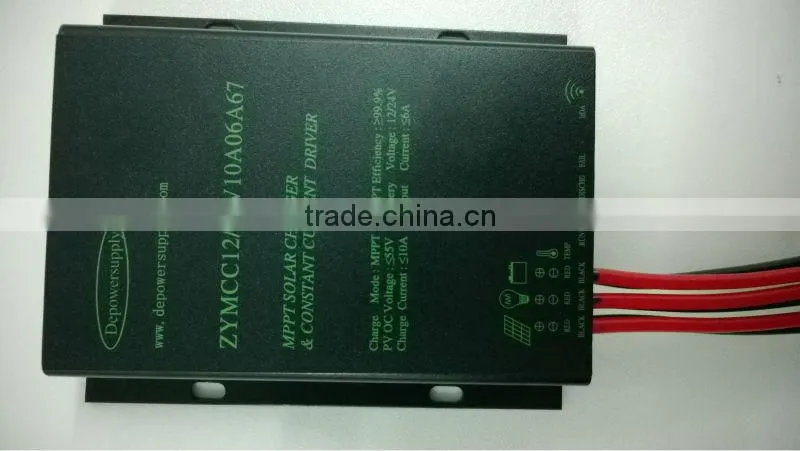

small smart solar charge controller
smart solar charge controller Features:
1. High-Efficiency MPPT function (Efficiency≥99.9%)
2. Integration of constant Current driver which can drive 100W (200W/24V) LED.
3. LED Driver start to drive LED with different current in different time phase.
4. Battery capacity management function
When battery capacity discharge to the set value, LED driver will reduce driving current. In order to delay LED lighting time. In addition, it will make battery work in the Shallow discharge state.
5. Charge function
It is three phase time charge battery, which contains MPPT charge, constant voltage charge and float charge.
6. Flexible parameter set by Wireless infrared communication.
7. Efficiency of charger and constant current driver is up to 96% by Synchronous rectification.
8. Protect function
Battery reverse connection protection;Battery under voltage protection;The solar panel reverse connection protection;To prevent the battery discharge to the solar panel;The LED output short circuit and open circuit protection.
9. Ingress protection: IP67.
10. Controller is no Aluminum electrolytic capacitor Design, extra long life extending to 25years.

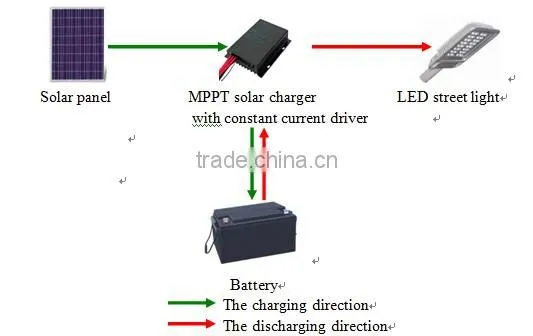

small solar charge controller manual Application Chart:
small solar controller Environments:
(1) Thecontrollersupports monocrystalline silicon, polycrystalline silicon and thin film solar panels.
(2) ThecontrollersupportsLead acid battery.
(3) Thecontrollersupports LED light.

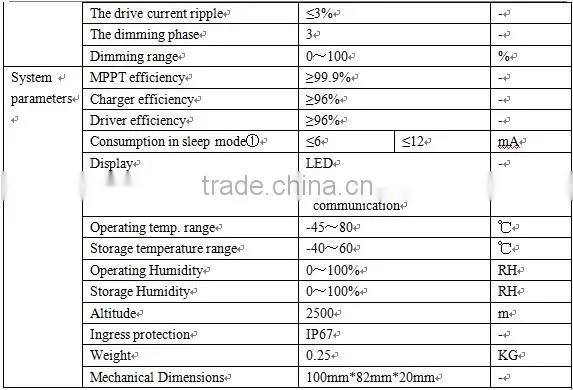

smart solar charge controller Specification:
Item |
12V system |
24V system |
Unit |
|
|
Battery management |
Max. charge current |
10 |
A |
|
under voltage protection |
10.8 |
21.6 |
V |
|
Exit the under voltage protection |
11.4 |
22.8 |
V |
|
Constant voltage charge |
14.4 |
28.8 |
V |
|
Constant voltage floating charge |
13.8 |
27.6 |
V |
|
Capacity management voltage |
12 |
24 |
V |
|
Tem. compensation coefficient |
-4mV/°C/2V |
- |
||
|
Solar panel parameters |
PV open voltage |
≤55 |
V |
|
PV short current |
≤15 |
A |
||
Optimal work voltage |
≥18 |
≥36 |
V |
|
|
LED Driver parameters |
driving current |
600~6000 |
mA |
|
driving voltage |
16~60V |
32V~60V |
V |
|
Max. driving power |
100 |
W |
||
small solar charge controller Mechanical parameters:
small solar controller Ordering Code:
small smart solar charge controller
