Product Details
Place of Origin: | Guangdong, China | Brand Name: | Eltek Valere | Model Number: | Micropack 12/120 WOR 241120.300 |
Product Description
Specifications
Micropack 12V rectifier Eltek 241120.300 Micropack 12/120 WOR1. Small size
2. Hotswap
3. High efficiency
Micropack 12V rectifier Eltek 241120.300 Micropack 12/120 WOR

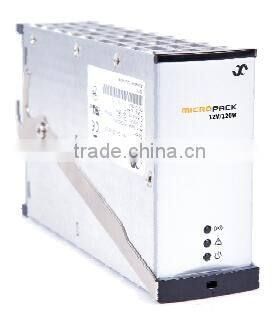

Micropack 12/120 WOR
Rectifier Module
GREAT SMALL POWER
Convection cooled rectifier for system installation in harsh and noise sensitive environments.
The Micropack 12V/120W is a power supply for small power systems. Suitable for load ranges typically between 120W and 480W. Perfect for control cabinets, safety systems and building automation applications.
Applications
1. Telecom - Wireless, fiber and fixed line communication
2. Industrial – Power utilities, process industry, marine and
offshore
Eltek Micropack 12/120 WOR 241120.300 Micropack 12V rectifier

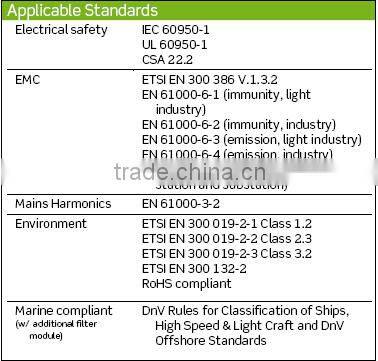

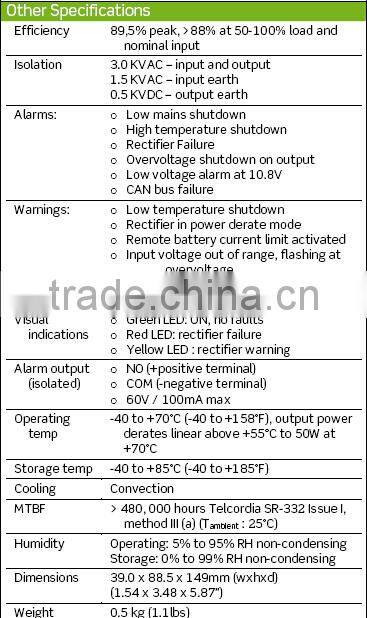

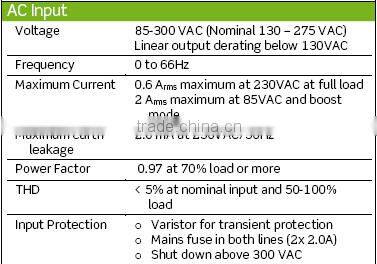

Additional Technical Specifications
Dimensions: 39 x 88.5 x 149mm (wxhxd)
(1.54 x 3.48 x 5.87”)
Weight: 0.5 kg (1.1 lbs)
Ordering Information:
Micropack 12V rectifier Eltek 241120.300 Micropack 12/120 WOR
241120.300 Micropack 12/120 WOR
241120.900 Stand alone DIN rail fixing
241120.930 Marine Filter
241120.901(2) Micropack power core 2(4) rectifiers
241120.911 Bulk Feed (40A)
242100.400 Compack Controller
