Eltek Flatpack2 Rectifier Module 48/1800 241115.001

Specifications

Eltek Flatpack2 Rectifier Module 48/1800 241115.001
1. Highest efficiency in minimum space
2. Plug-and-play connect
3. UL, CE

Eltek Flatpack2 Rectifier Module 48/1800 241115.001

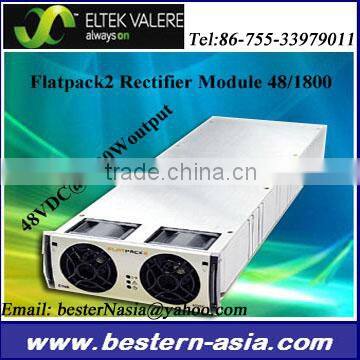

Flatpack2 48/1800 rectifier module

Versatile and powerful solution for any application

The combination of cost-effective design, power density and
reliability makes the Flatpack2 a product family that truly stands
outs and provides unparalleled network availability. The versatility
of the Flatpack2 rectifier means that it can be used in a wide
variety of 48VDC and 24VDC applications across the globe.

Application:

1. Wireless, fiber and fixed line communication

2. Broadband and network access

3. Small and large

Realization of Flatpack2 systems is possible by fitting 4
rectifiers across a 23” or 19” shelf.

Flatpack2 48/1800

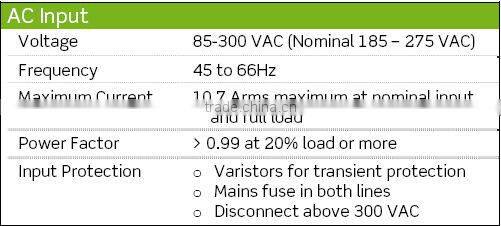

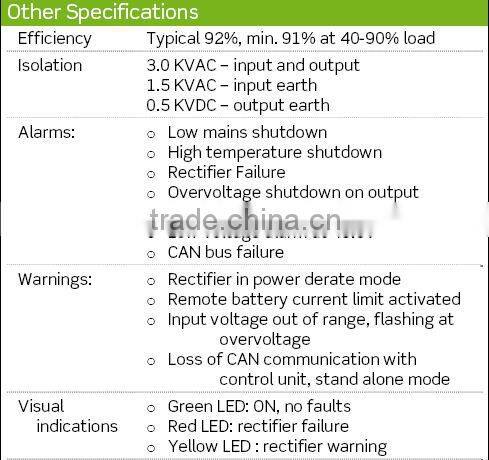

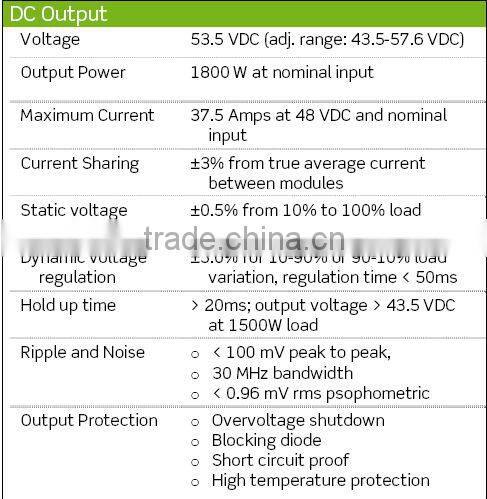

Additional Technical Specifications

Dimensions:109 x 41.5 x 327mm (wxhxd)

(4.25 x 1.69 x 13”)

Weight:1.9 kg (3.97 lbs)

Ordering Information:

241115.001Flatpack2 Rectifier Module 48/1800
