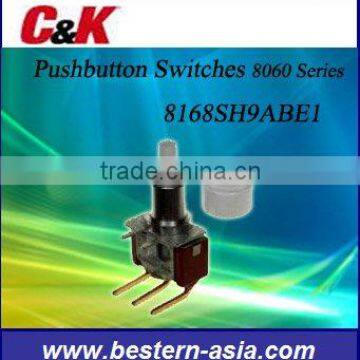

C&K 8168SH9ABE1 Pushbutton Switches (8060 Series)
- 1000000 Piece / Pieces per Month
- Hong Kong
You May Like
Product Details
| Place of Origin | United States | Brand Name | C&K | |
| Model Number | 8168SH9ABE1 | Max. Current | 6A | |
| Max. Voltage | 120Vac |
Product Description
Specifications
1. Original C&K 8168SH9ABE1 X 10pcs exstockC&K 8060 Series
Alternate Action and Momentary Pushbutton Switches
Features/Benefits
• Long travel
• Available with LED
• Long life contact design
• Epoxy terminial seal compatabile with bottom wash cleaning
• RoHS compliant models available
Typical Applications
• Instrumentation
• Computers and peripherals
• Telecommunications and networking equipmen
Specifications
1. Contact Rating: Q contact material: 6 AMPS @ 120 V AC or 28 V DC; 3 AMPS @ 250 V AC. See page A-57 for additional ratings.
2. Electrical Life: 50,000 make-and-break cycles at full load.
3. Contact Resistance: Below 20 m½ typ. initial @ 2-4 V DC, 100 mA, for both silver and gold plated contacts.
4. Insulation Resistance: 109½ min.
5. Dielectric Strength: 1,000 Vrms min. @ sea level.
6. Operating Temperature: –30ºC to 65ºC
7. Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging).
8. Cap Installation Force: 10 lbs. maximum permissible
