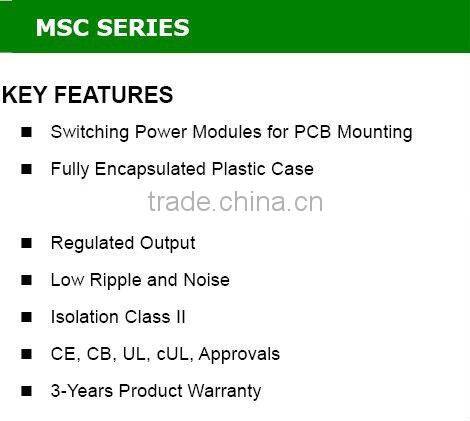

40W 12V Dual Outputs AC-DC Medical Power Module, ARCH MSC-12D

Model No.( Dual Outputs )

MSC-12D

Max output wattage ( W )

40W

Output

Output 1

Output 2

Voltage (V.DC.)

+12V

-12V

Current (mA) max

1666

1666

Voltage set accuracy

±2%

Line regulation (Typ.)

0.5%

Load regulation (10-100%) (Typ.)

1% (symmetric load)

Cross regulation (Typ.)

5%

Minimum load

10%

Efficiency (Typ)

83%

Capacitor Load (max.)

          ±1000 uF

Input

Voltage

90-264 VAC or 100-375 VDC

Frequency (Hz)

47-440 Hz

Current (Full load)

860 mA max. (115 VAC) / 460 mA max. (230 VAC)

Inrush current (<2ms)

10 A max. (115 VAC) / 20 A max. (230 VAC)

Leakage Current

0.1 mA max. (115 VAC) / 0.2 mA max. (230 VAC)

External fuse (recommend)

3.15 A slow blow type

Output

Ripple & Noise

3.3V: 50mV of Vout

others: 1% of Vout

Hold-up time

18 ms min.

Switching frequency

132 kHz

Protection

Over current protection

Above 105% rated output power

Over voltage protection

Zener diode clamp

Short circuit protection

Hiccup mode, indefinite (automatic recovery)

OTP

100°C

Isolation

Input-Output (V.AC)

4000V

Environment

Operating temperature

-25°C…+70°C (Case Temperature max. +95°C)

Storage temperature

-40°C…+85°C

Temperature coefficient

0.01%/°C

Humidity

95% RH

MTBF

200,000 h~400,000 h @ 25°C

Physical

Dimension (L x W x H)

3.5 x 2.5 x 1.06

Inches

( 89.0 x 63.5 x 27.0 mm ) Tolerance ±0.5 mm

Case Material

Plastic resin + Fiberglass (flammability to UL 94V-0)

Weight

280 g

Cooling method

Free air convection

Safety & EMC

Class II

To IEC / EN 60536

Approval

cUL / UL / CB / ANSI/AAMI ES 60601-1: 2005,

1st Edition and CAN/CSA-C22.2 No. 60601-1:08, 2nd Edition, MOPP

EMI

EN 55011 class B

EMC Standards

EN60601-1-2

ESD Susceptibility

EN60601-1-2

Radiated Susceptibility

EN60601-1-2

EFT / Burst

EN60601-1-2

Surge

EN60601-1-2

Conducted Susceptibility

EN60601-1-2

Safety Approvals

EN60601-1
