US$ 290 - 306 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wired & Wireless
VPN Support:
Yes
Contact Supplier Request Quote Chat Now
Shenzhen Inctel Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
VPN Support Yes
Throughput 850M/S
Simultaneous Sessions not tested
Certification CE,FCC,ROSH
Brand Name Partaker Or INCTEL
Model Number IN-RC6F
Place of Origin Guangdong, China



1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports 1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports

Soft route is with the use of a desktop or server software to form a routing solution, mainly by software settings to reach the router function; while the hard route is based on use of special hardware devices, including the processor, power supply, embedded software, Setting the router functionality provided.


Software router is not complicated, very simple, normal operation will use PC software can be installed on the route, as the name suggests is the system software setup routing function

Depending on the different operations can be divided based on the windows platform and software-based routers Linux / bsd platform development, based on the Windows platform software firewall more common ISA Server, Winroute Firewall, Internet behavior management soft grass routes, etc. Some of these software is commercialized, usually based on the number of authorized users of different charges and different, the cost of buying genuine software firewall for many small and medium enterprises is undoubtedly spending a small fortune, grass Internet behavior management software-based routing is limited windows platform and also hit a soft free routing software; and based on Unix / Linux platform software firewall we generally less contact, to benefit from open source operation, currently based on Unix / Linux platform software firewall mushroomed continue to introduce these Most software firewall is free, a common sea spiders, ikuai8, RouterOS, m0n0Wall, SmoothWall, Ipcop, CoyoteLinux [1], etc. These systems are characterized by low total general hardware requirements, or even just need a 486 computer, a floppy disk, you can install two cards out of a very professional software firewall, which has eliminated a lot of friends down the low-end computers, means to take one out of the computer, install a free firewall software, do not spend a penny on DIY out a professional firewall, and these systems also include NAT function itself, and can achieve broadband sharing, which means that this free firewall is actually a good broadband router, this is how exciting things, but for now, this kind of free software route is usually inserted in order to survive or because of excessive advertising leads to dissatisfied users.
1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports



Configuration
Model  IN-RC6F
CPU Intel Celeron 1037u 1.8Ghz CPU
Network Intel PCI-E 1000M 4 * 82574LV (2 groups Bypass) + 2 * 82580DB gigabit fiber ports (good heat a small stable and reliable performance, can expand more two Gigabit Gigabit 82599ES 82580DB or optical)
RAM Support NB Memory SO-DIMM DDR3 204Pin  (Maximum 8G DDR3)
Storage Support  2*MINI PCIE+2*SATA+CF Card+3G Slot
Wi-Fi None
Package

1U, 43*28*4.6/ 6.5KGS





Intel PCI-E 1000M 4 * 82574LV (2 groups Bypass) + 2 * 82580DB gigabit fiber ports

      With Fan




Upgrade Service:

1. USB Bluray DVD add $48, Normal DVD add $28

2. More configuration about lower or higher RAM, HDD, SSD Industrial SLC Options, please refer to our big directory or contact our pre-sales for guide.



Upgrade link for the upgrade service:  /store/group/Upgrade-link/1608019_260064727.html

(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8,  Upgrade value, 1pc=$1)

1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports

No RAM, NO SSD/HDD included, please upgrade by extra fee!



Our firewall appliance can install routing software like Radius_Manager, RouterOS, ROS, Panabit, PFSense, monowall, PFS, OPENWRT, Yunbs, XiaoCao, Wayos, Netzone, Bytevalue, Bithighway, Hi-Spider, iKuai etc 1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports



Type

IPC standard 1U chassis. 430MM * 280MM * 46MM

Nics

Intel PCI-E 1000M 4 * 82574LV (2 groups Bypass) + 2 * 82580DB gigabit fiber ports (good heat a small stable and reliable performance, can expand more two Gigabit Gigabit 82599ES 82580DB or optical)

Processor

Intel Celeron 1037u 1.8Ghz CPU

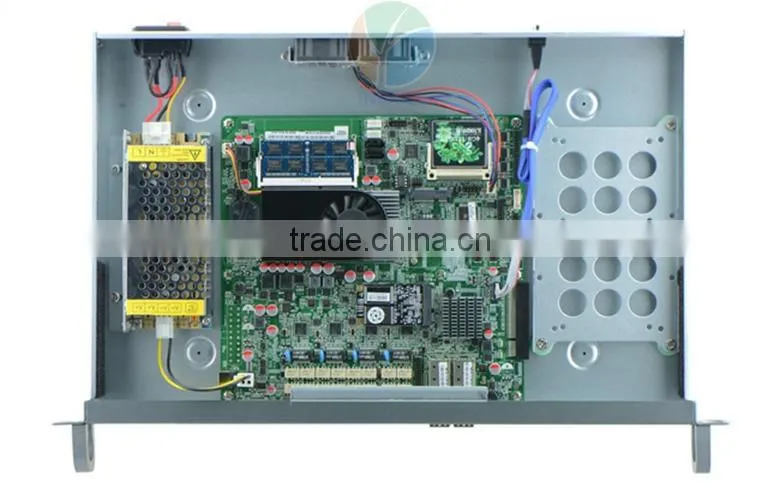

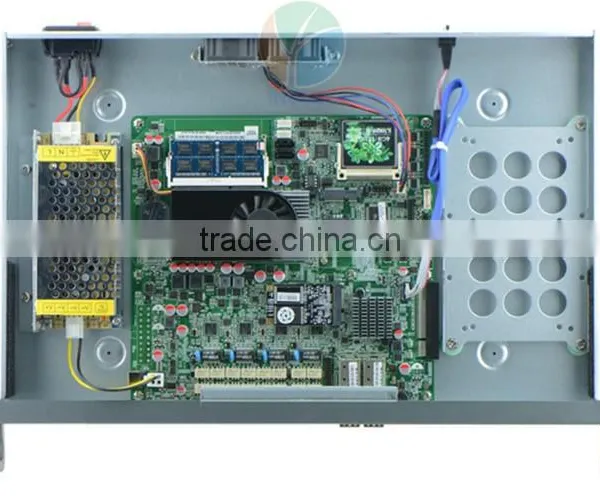

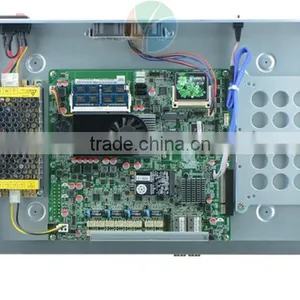

Motherboard

Green Network Security Industrial Motherboard silent version with turbo fan

Features

1037u- Multi-network 4 Gigabit firewall ROS Router+2 SFP

Power Supply

Industrial power fanless design. 12V / 5A power want is a stable 365 days without failure

Chassis

1U, 43*28*4.6/ 6.5KGS

OEM

LOGO can be customized easily,  LOGO neutral easy for twice sales

Expansion

2*MINI PCIE+2*SATA+CF Card+3G Slot



Model

IN-RC6F

Processor

Intel Celeron 1037u 1.8Ghz CPU

Memory

Support 204 Pins DDR3 low-power low heat, Max. 4G RAM

Motherboard

Green Network Security Industrial Motherboard silent version with turbo fan

NIC

Intel PCI-E 1000M 4 * 82574LV (2 groups Bypass) + 2 * 82580DB gigabit fiber ports (good heat a small stable and reliable performance, can expand more two Gigabit Gigabit 82599ES 82580DB or optical)

Heat sink

Processor with a dedicated turbo silent cooling fan ensures long working hours and stable heat

Storage

Industrial grade SSD/CF card

Chassis

IPC standard 1U chassis. 430MM * 280MM * 46MM

Chassis Dimensions

1U, 43*28*4.6/ 6.5KGS

I/O

DC+Console+USB*2+Lan*4+SFP*2+VGA

Package

1U Router, Rack Ears, HDD Bracket, With Power Cord

Software

Our firewall appliance can install routing software like Radius_Manager, RouterOS, ROS, Panabit, PFSense, monowall, PFS, OPENWRT, Yunbs, XiaoCao, Wayos, Netzone, Bytevalue, Bithighway, Hi-Spider, iKuai etc



     1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports



About Power Cord:

We will ship the type of power cord, based on your area. 1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports

 1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports



1037U Multi Gigabit Routing Network Security Router with Intel PCI E 1000M 4*82574LV 2*Bypass 2*82580DB Gigabit Fiber Ports
