6SR quality stainless steel impeller submersible pump
>> Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
>> Operating conditions
Maximum fluid temperature up to +35°C.
Maximum sand content: 0.25%.
Maximum immersion :100m.
Minimum well diameter: 6".
>> Motor and Pump
Rewindable motor or Full obturated screen motor
Three-phase: 380V - 415V/50Hz
(1) Direct start ( 1 cable )
(2) Star-delta start ( 2 cable )
Equip with start control box or digital auto-control box

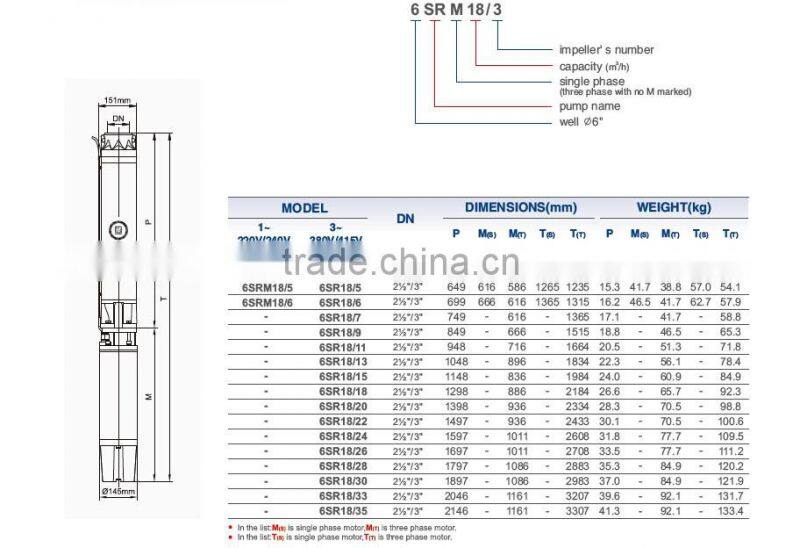

NEMA dimension standards
Curve tolerance according to ISO 9906
>> Options on request
Special mechanical seal
Other voltages or frequency 60 Hz
>>Warranty: 1 year
(according to our general sales conditions).
>>Features
1. CS, GS, RoHS certificated.
2. 100% copper wire, stainless steel shaft, brass/cast iron outlet.
3. Wide voltage range design, single-phase and three-phase.
4. Strict complete testing for each product.
5. Dedicated sales representitives.
>>Materials
Components | Material |
Pump external casing | AISI 304 SS |
Delivery casing | Cast-iron ASTM NO.30 |
Suction lantern | Cast-iron ASTM NO.30 |
Diffuser | Plastic. PC & AISI 304 SS |
Impeller | (1) Plastic. POM (2) Plastic.PC |
Shaft | (1) AISI 316 SS (2) AISI 304 SS |
Shaft coupling | (1) AISI 316 SS (2)AISI 304 SS |
Wear ring | AISI 304 SS |
Motor external casing | AISI 304 SS |
Top cover | (1) Cast-iron ASTM NO.30 (2) AISI 304 SS |
Buttom support | (1) Cast-iron ASTM NO.30 (2) AISI 304 SS |
Seal | (1) NBR (2) Carbon-SIC/TC |
Shaft | AISI 303 SS-ASTM 1045/5140 |
Thrust Bearing | (1) Graphite-Ceramic (2) NSK |
Radial Bearing | (1) Graphite-Ceramic (2) NSK |
>>Certificates
Q: Can you do OEM?
A: Yes.
Q: How about the MOQ?
A: Generally, it is 100 PCS for each model.
Q: How about the lead / delivery time?
A: Usually 35 days. But it varies in Peak season.
Q: How about the warranty?
A: 1 year.
Q: Have your pumps got certificates?
A: Yes, We got CE,GS,SONCAP, RoHS, ISO2008.
