The Latest Dual Core Machine 1037u Routing Software Flow Control RIPPLEOS Openwrt Firewall

25*43.5*4.6CM/6.5KGS

Type

Standard 19-inch 1U, full-mold production,sturdy fabric

Nics

Intel PCI-E 1000M 6 * 82583v (small heat stable and reliable performance is better)

Processor

Ivy Bridge mobile Celeron 1037U low-power CPU supports virtualization (stronger than the D525 is about twice the performance, lower power consumption, less heat)

Motherboard

Blue Network Security industry leading brands industrial motherboards (with the new card heatsink, supports full high WIFI wireless network card that supports SATA6GB, a stronger performance than the D525, more stable without the motherboard BIOS support, not the motherboard battery can also power on)

Features

Ivy Bridge mobile Celeron 1037U, 6 1000M consumes only 20 watts, (D525 machine is 29 watts) 2M of L2 cache is doubled D525, D525 2.5 times the performance and twice the D2550, and support for virtualization (intel VT), and other virtual machines can run kvm.

Power Supply

Genuine Taiwan Meanwell NES-75-12 75W fanless industrial-grade power supply (optional 220V AC, 48V DC input, full power, reliable, relative to peers with Meanwell NES-50-12 50W power supply more secure)

Chassis

The new internal galvanized magnetic, external piano paint, with wall-foot cabinet posts

OEM

LOGO can be customized easily,  LOGO neutral easy for twice sales

Expansion

1*MINI-PCIE+1*CF Card+1* 44 PIN IDE+ 1* SATA

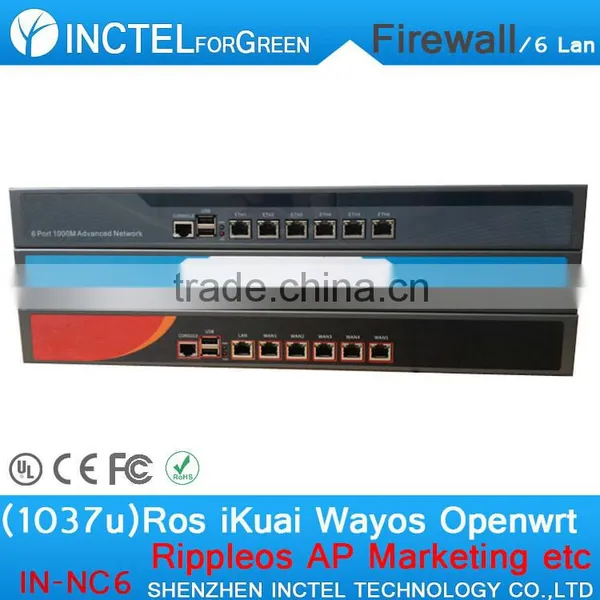

Model

IN-NC6

Processor

Intel Celeron 1037u 1.8Ghz CPU

Memory

Support 204 Pins DDR3 low-power low heat, Max. 8G RAM

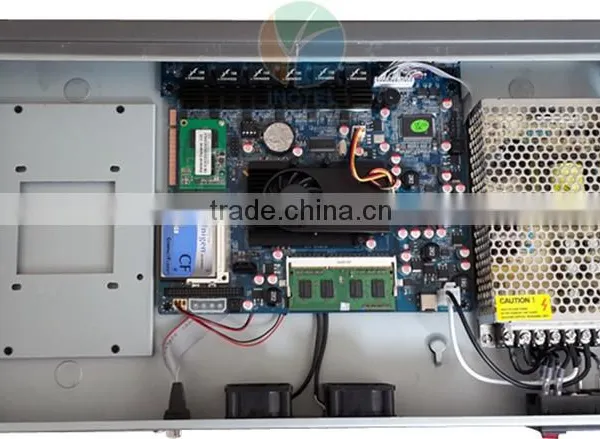

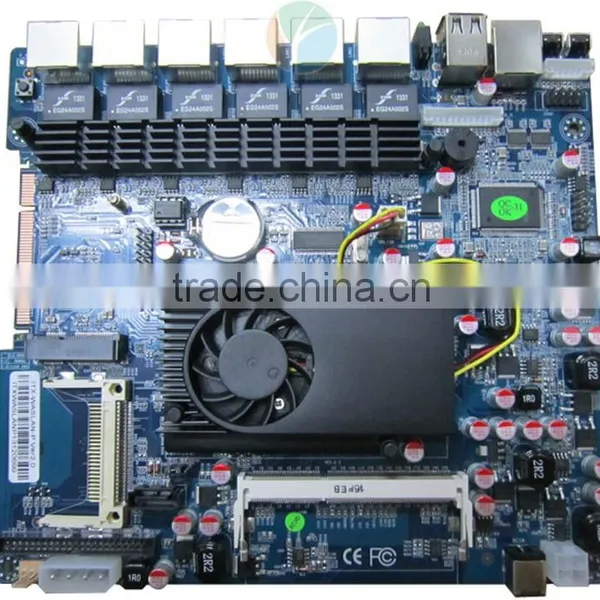

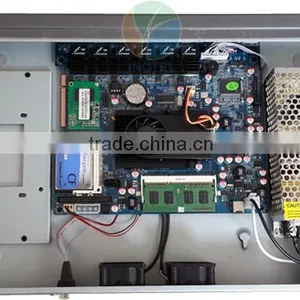

Motherboard

Original new network security industry's most well-known brand motherboard VER version 2.0, V1.23 version with non Chengdu plant, using Intel ICH8M chipset integrated graphics card (built-in), 1 * MINI-PCIE expansion interface, 1 * CF card memory card interface, 1 * 44-pin IDE storage interface, 1 * SATA hard disk interface, maximum support 4G memory, support incoming call boot (circuit direct implementation does not depend BIOS), wake on LAN support, support for system power management, support temperature management, network card with a heat sink! !

NIC

Set 6 Intel motherboard (Intel) Gigabit Ethernet interface, using Intel 82583V / L 10/100 / 1000M Ethernet controller card bus with PCI-E

Heat sink

Processor with a dedicated turbo silent cooling fan ensures long working hours and stable heat

Storage

High-speed 1GB SLC industrial CF card. OEM quality, but off the card or electronic disk, often for no reason lost data, damage to the system, resulting in network is not normal, like a time bomb! ! (I fully understood)!

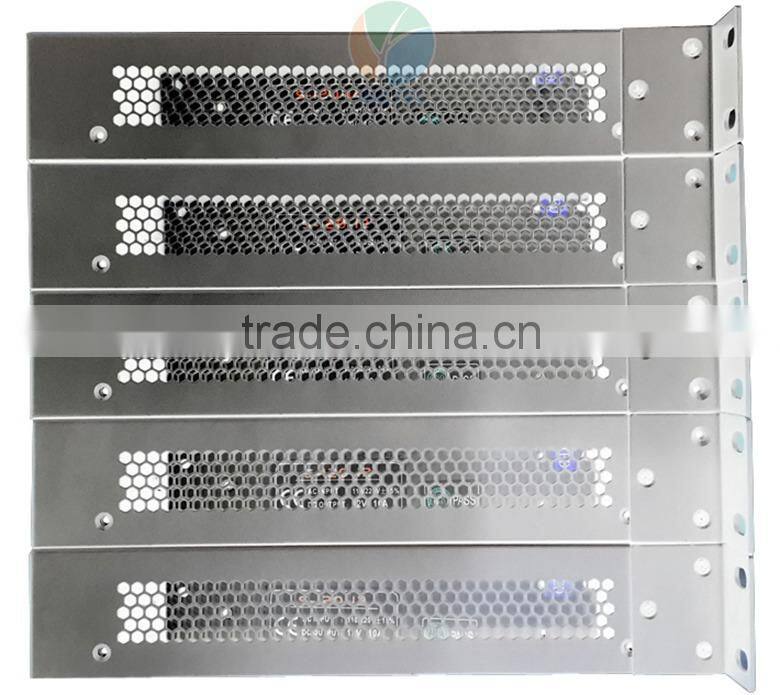

Chassis

Standard 19-inch 1U, full-mold production, surface treatment of fine, sturdy fabric

Chassis Dimensions

483MM * 250MM * 44MM Machine weight 5.5KG Package

Tips

Built-in SSD hard drive bracket directly on the SSD Solid State Drive

The new chassis, new blue plate

Package

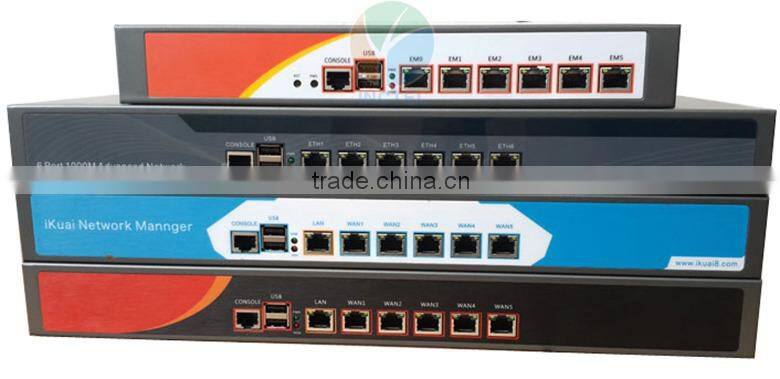

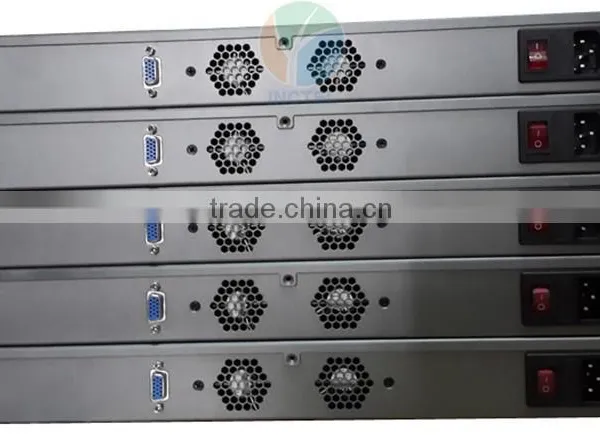

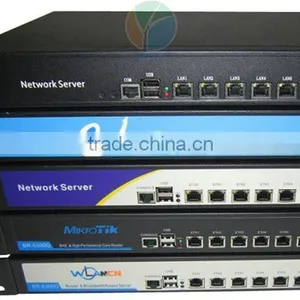

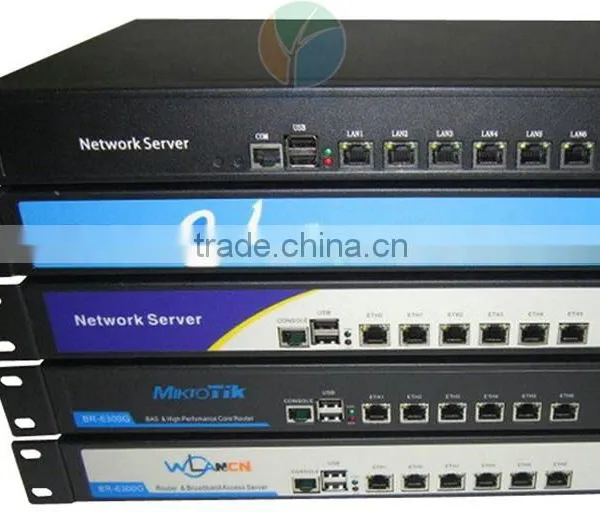

RJ45 standard COM port, compatible with cisco standard, built-in standard SATA interface, minipci-e interface can be installed SSD, scalable wifi wireless card. With VGA facilitate debugging (without optional VGA port), front 2 USB interface, do not disassemble reinstall the system (tutorials), optional 2.5-inch hard drive, please contact customer service instructions when buying.

Standard 1U size deep 25CM wide 43.5CM high 4.6CM (refer Volans 49,006,200 dimensions) 25 cm depth for a variety of conventional machines

Software

Our firewall appliance can install routing software like Radius_Manager, RouterOS, ROS, Panabit, PFSense, monowall, PFS, OPENWRT, Yunbs, XiaoCao, Wayos, Netzone, Bytevalue, Bithighway, Hi-Spider, iKuai etc
