High Quality Stable OBD GPS Tracker with OBD Interface
- 2000 Unit / Units per Month
- shenzhen
- Credit Card PayPal
- Fashionable Smart Personal Watch GPS Tracker with OLED Screen 108
- Smart GPS Watch Tracker/Personal GPS Tracker with Geo-Fence and Voice Talking for Children and Elder
- Manufacturer Wholesale 3G MINI Smart Watch GPS with Dual-Way Calling & SOS
- GPS Kids Mobile Watch with Dual-Way Calling & Sos / LBS GPS Tracking
- Best Selling GPS Kids Tracker with SIM Card Slot / LBS GPS Tracking Smart Watch for kids
- Kids Wrist Watch GPS Tracking Device / LBS GPS Tracking smart watch gps watch for kids
Product Details
Type: | Gps Tracker | Use: | Automotive | Screen Size: | Other, NULL |
Function: | Other, GPS TRACKING | Place of Origin: | Guangdong, China | Brand Name: | TRACKPRO |
Model Number: | TR90 | Warranty: | 1 Years |
Product Description

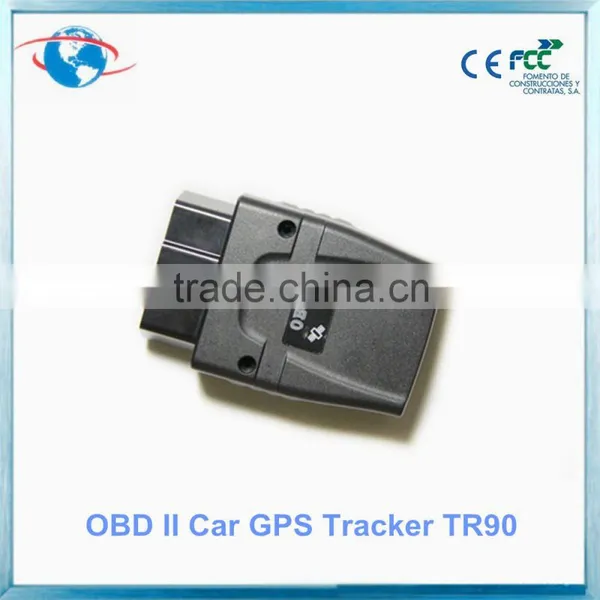

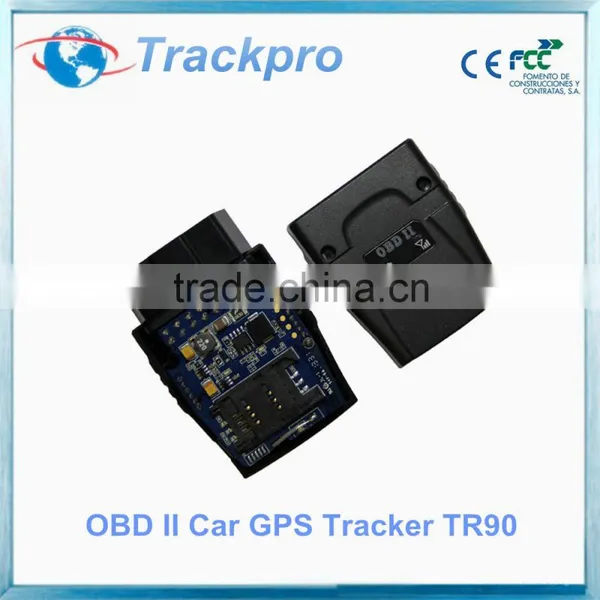

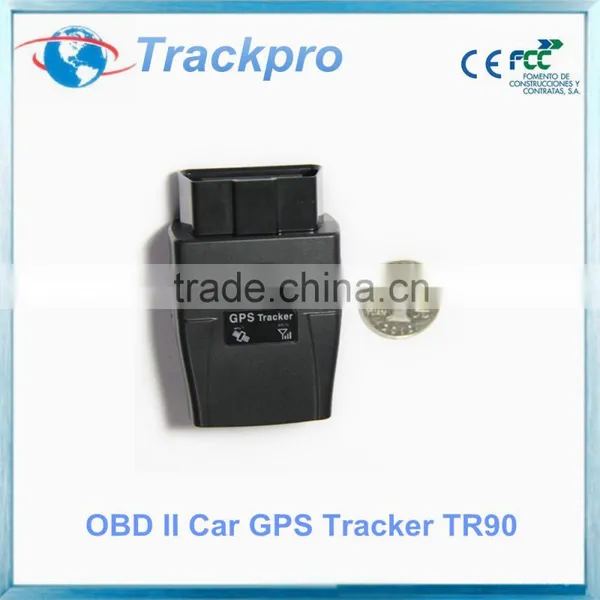

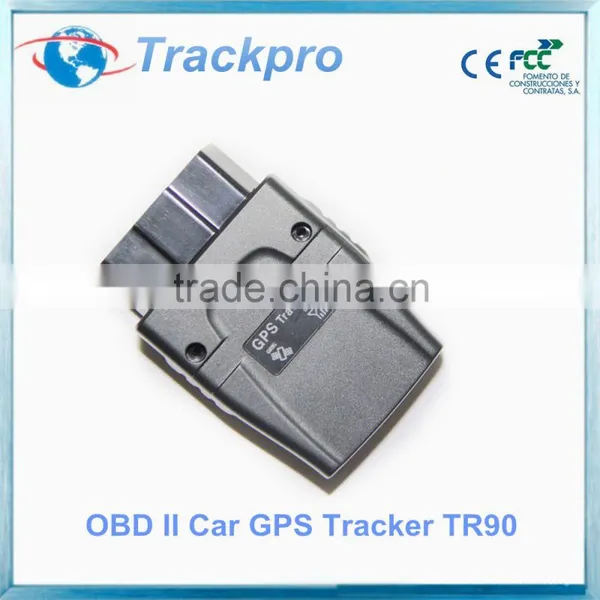

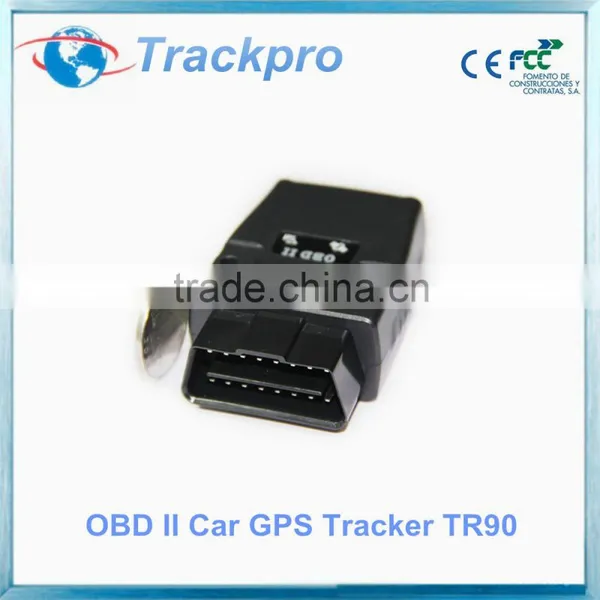

High Quality Stable OBD GPS Tracker with OBD Interface
Specifications
Voltage | 12VDC/24VDC |
Standby Current | <3mA |
Work current | <120mA |
GPS positioning accuracy | 15m |
GSM positioning accuracy | 100m |
GPS Frequency | 1575MHz |
GSM Frequency | 850/900/1800/1900MHz |
Hot/warm/cold start time | <3s,<15s,<60s |
Dimensions (mm) | L*W*H:56.5 X 47 X 24.6 |
Net Weight | 45 g |
Features
- Easy installation, plug-n-play
- Iphone&Android APP Software
- Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world
- Supports single positioning and feedbacks position via GPRS at setting times
- Supports Vehicle positioning and tracking
Environment for use
- Limited working temperature:-20°C~80°C
- Storage temperature:-45°C~90°C
- Humidity:<95%
- sure the terminal is installed in OBD2 interface of the vehicle
Physical Display
Installation Guide
The connector is underside of your dashboard, below your steering wheel but above your gas and brake pedals.
The connector may be covered by a small flap, but will usually be visible without requiring any disassembly.
1. Offer remote help in the installation and use of the product and server for customers
2. Free Android and IOS app
3. you can also just host your gps trackers on our gps tracking software. Our software is compatiable with most trackers in the market
4. Professional engineer will always be there for your technical support!
Locating on web-based gps tracking software
Android/IOS app also supported
Q: Why the tracker can't be switched on?
A: 1. Check if wiring is correct or not.
2. Charge the tracker.
Q: No response to SMS command
A: 1. Wrong password. Please check your password.
2. No GSM mobile signal or weak GSM network. Try later.
3. Out of SIM credit. Please pop up.
4. SIM is damaged. Change a sim card.
5. SIM card is without sending function. Change a SIM or enable SMS sending function and caller identification function.
6. SIM card isn't installed properly.
