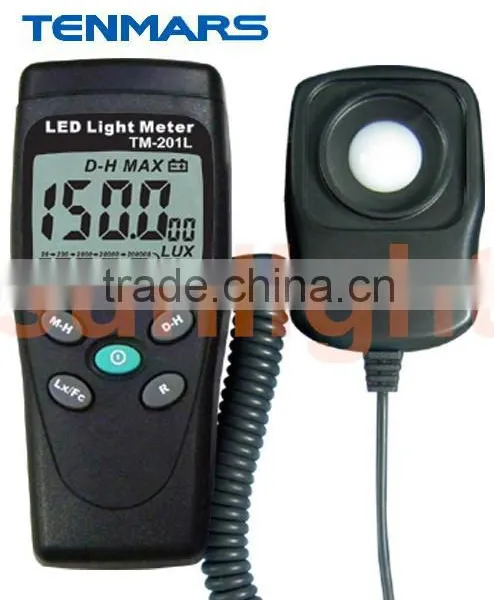

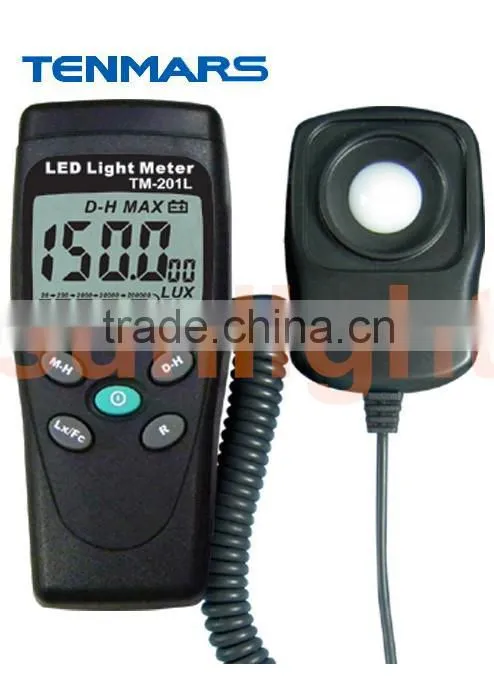

TM-201L LUX-FC LED Light Meter
Description:
•According to JISC1609:1993 and CNS 5119 general A class specifications.
•Spectral responce close to CIE luminous spectral efficiency.
•Measuring intensities of illumination in Lux or Foot-candle.
•Silicon photodiode and filter.
•Measuring lights source include all visible light sources.
•Length of wire for light sensor: approximately 1.5M.
Application:
- LED white light Luminous Intensity Measurement.
Specification:
Display:
- 3½ digits LCD with maximum reading 1999.
Functions:
-Max Hold
-Manual zero adjustment
-Manual ranging
Specifications:
Measuring range |
200, 2,000, 20,000, 200,000 Lux, |
Accuracy |
+/-3% (Calibrated to standard incandescent lamp 2856º K) andcorrected LED day while-light spectrum.+/-8% other visible light source |
Meter size (L*W*H) |
130x55x38mm |
Sensor size (L*W*H) |
80x55x25mm |
Weight (including battery) |
250g |
