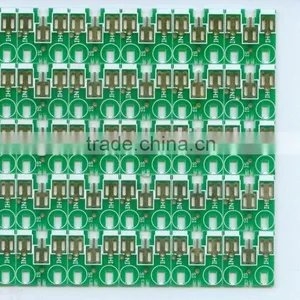

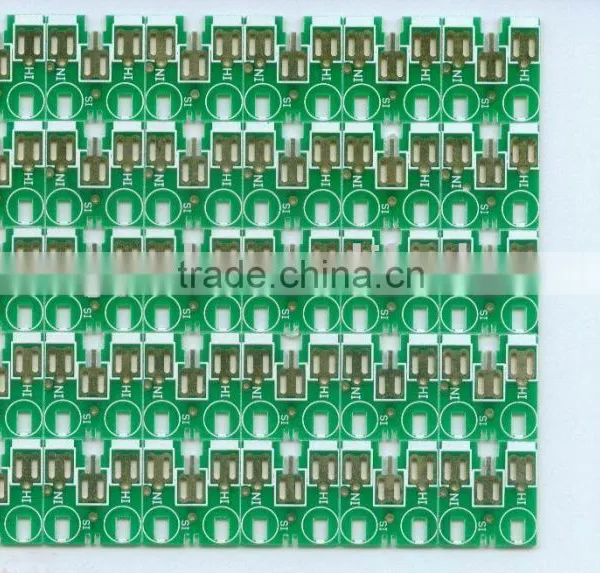

Help CenterPlating Gold PCB(double-sided PCB,pcb,circuit Board)
Related Products
-
Plating Gold Pcb(double-sided Pcb,rigid Pcb,pcb Supplier )US$ 0.07 - 3MOQ: 300 Pieces -
Circuit Board(pcb Board,double Sided Pcb,rigid Pcb)US$ 0.1 - 2MOQ: 300 Pieces
-
Plating Gold Pcb(double Sided Pcb, 2-layer Pcb, Pcb BoardUS$ 0.1 - 2MOQ: 300 Pieces
-
Plating Gold Pcb(double-sided Pcb, Rigid Pcb, Pcb Supplier)US$ 0.07 - 3MOQ: 300 Pieces
-
Plating Gold Pcb(double-sided Pcb, Rigid Pcb, Pcb Supplier)US$ 0.1 - 2MOQ: 300 Pieces
Specifications
double sided pcb is the best selling in our factory.(pcb, circuit board) Certificate: UL, ISO 9001, ISO14001,SGS , RoHSPlating gold PCB, double-sided PCB,pcb,circuit board
Reference - Our Production Capability for Rigid PCB:
1) Layer: 1,2,multilayer
2) Board finished thickness: 10%
3) Material: FR-4, CEM-1,CEM-3, High TG, FR4 Halogen Free,FR-1,FR-2
4) Max. finished board size: 1500mmx500mm
5) Min. drilled hole size: 0.3mm
6) Min. Line width: 0.13mm
Min.Line spacing:0.1mm
7) Surface finish/treatment : HASL / HASL lead free, Chemical tin,Chemical Gold, Immersion Silver/Gold,OSP,Gold plating
8) Copper thickness: 0.5-2.0 OZ
9) Solder mask color: green/yellow/black/white/red/blue
10)Inner packing: Vacuum packing / Plastic bag
Outer packing: Standard carton packing
11) Hole tolerance: PTH: ±0.076 NPTH: ±0.05
12) Certificate: UL, ISO 9001, ISO 14000,SGS , RoHS,CQC
13) Profiling: Punching, Routing, V-CUT, Beveling
14) Provides OEM services to all sorts of printed circuit board assembly
