Help CenterHigh Quality Vacuum Belt Filter Cloth for Dewatering of Concentrates,Tainlings and Coal
Related Products
-
New Filtering Medium Cheap Ceramic Plate With Porous High Pricision SeparationUS$ 20 - 50MOQ: 10 Pieces -
Mesh Nylon Filter Cloth for Disc Filter in the Dewatering of Ore Slurry and Industril FilteringUS$ 5,280 - 20,000MOQ: 1 Set
-
Disc Filtering Ployester Filter Cloth With Automatic Cleaning Device and Good DewateringUS$ 5,280 - 20,000MOQ: 1 Set
-
China Long Life Time Mineral Separator and Copper Separation Machine is on SaleUS$ 5,280 - 48,600MOQ: 1 Set
-
Ore Benefication Plant for Concentrates Dewatering and Tailings DewateringUS$ 5,280 - 48,600MOQ: 1 Set
| Model Name: | PGT Series vacuum disc filter |
| Filtration Area: | 10-96 square meters |
| Capacity: | 0.6-0.85 T/hr.m2 |
| Usage: | Dewatering for various materials like iron ore and non-ferrous metals. |
Application
It is specially designed for dehydration of iron ore concentrate and non-ferrous metals. It is also suitable for coal washing beneficiation, non-metal ore, chemical engineering and environment protection.
How Does it Work
Technical Data
Filter diameter(mm) |
2100 |
3100
|
|||||||||||||||||||||||||||||||||
Filtration area (m2) |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
48 |
60 |
72 |
84 |
96 |
|||||||||||||||||||||||
Filter disc quantity |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
4 |
5 |
6 |
7 |
8 |
|||||||||||||||||||||||
Quantity of each filtration disc |
20 |
||||||||||||||||||||||||||||||||||
Principal shaft power (KW) |
4 |
5.5 |
7.5 |
||||||||||||||||||||||||||||||||
Mixer shaft power (KW) |
35.5 |
7.5 |
11 |
||||||||||||||||||||||||||||||||
Cake discharged way |
reverse blow |
||||||||||||||||||||||||||||||||||
Weight of machine(t) |
10.4 |
11.0 |
11.6 |
12.2 |
12.8 |
13.4 |
14.0 |
18 |
21 |
24 |
27 |
30 |
|||||||||||||||||||||||
Size |
L(mm) |
2335 |
2920 |
3315 |
3705 |
4095 |
4485 |
4875 |
4175 |
4675 |
5175 |
5675 |
6175 |
||||||||||||||||||||||
W(mm) |
2480 |
4280 |
|||||||||||||||||||||||||||||||||
H(mm) |
2690 |
3740 |
|||||||||||||||||||||||||||||||||
Capacity (t/ h) |
0.6-0.85 |
||||||||||||||||||||||||||||||||||
The technical data above mentioned is as referred

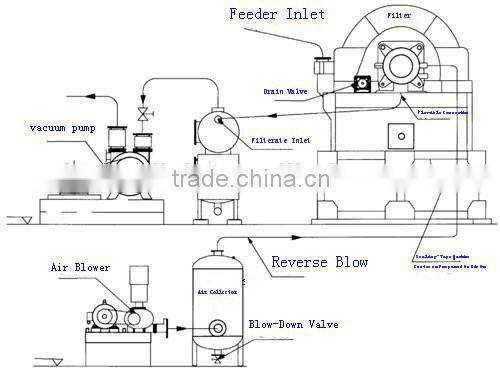

Sketch Picture
Working Condition
1,the particle size of solid in the slurry is -100mesh to -400mesh
2,the temperature of slurry is 10-50°C, no corrosion
3,the best concentration of slurry is 35%-65%(metal mineral) or 20%-40%(coal or other lightweight material)

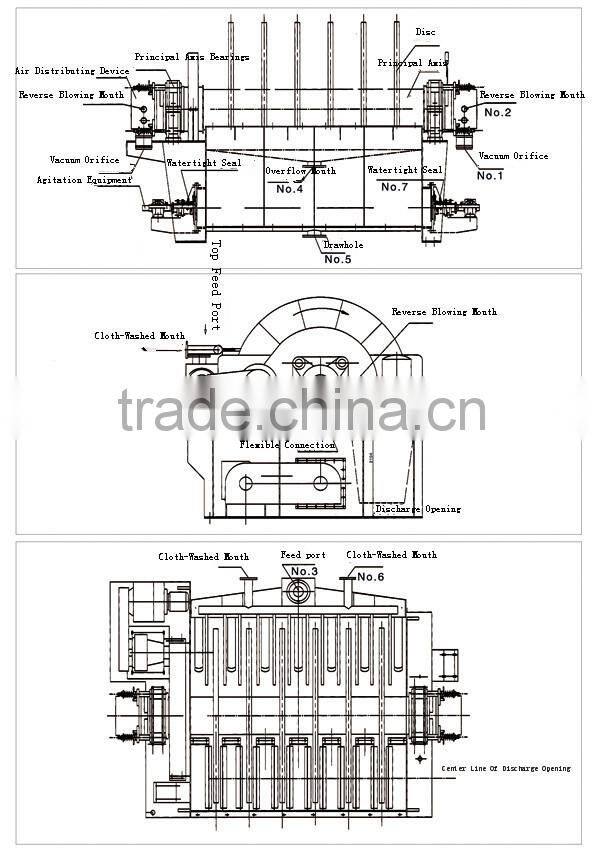

Sketch Picture Of Structure

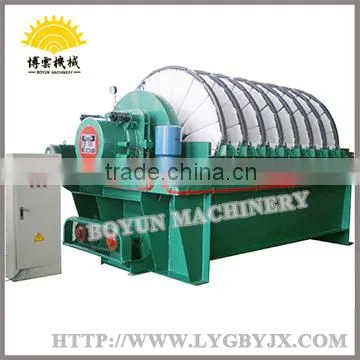

Filter Cloth Self Cleaning Disc Vacuum Filter With Long Working Life

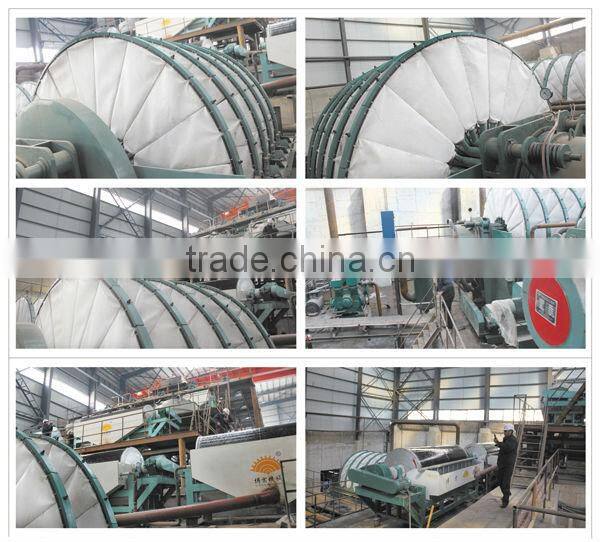

Installation In Customer's Factory
Certificate
Why choose BOYUN company?
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide 1-years warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
In order to give you a responsible quotation, you can inform us the following information:
1. What’s the material you are going to deal with?
2. What’s the granularity of the material?
3. What’s the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
