Crystal Quartz Glass Rod

Name: Crystal Quartz Glass Rod
Brand: Liaison Quartz
Availability: InStock

FOB Price

US$ 1 - 5 / Piece

100 Pieces(Min. Order)

Port lianyungang shanghai Tsingtao
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Liaison Quartz
Model Number	N/A	Type	Clear Quartz Rod
Application	Semiconductor, Heating and Lighting	Outside Diameter	1mm-100mm
Silicon Dioxide Component	99.9%	Transmittance	>85%
Ovality	0.1~0.3

Packaging Details

Liaison Quartz standart packing:
Inside: Carton Box
Outside: Wooden Case
Liaisonquartz standard packing for Crystal quartz glass rod

Product Description

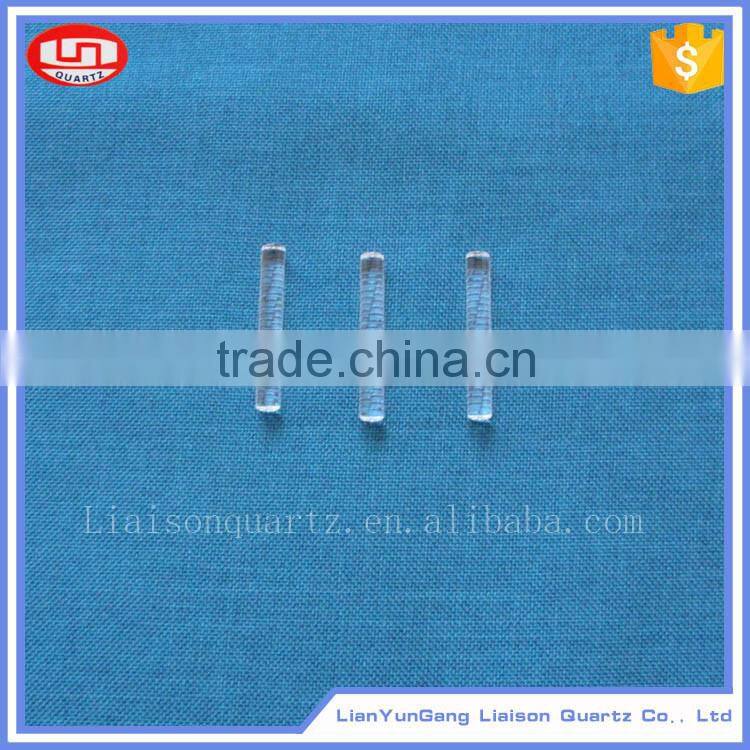

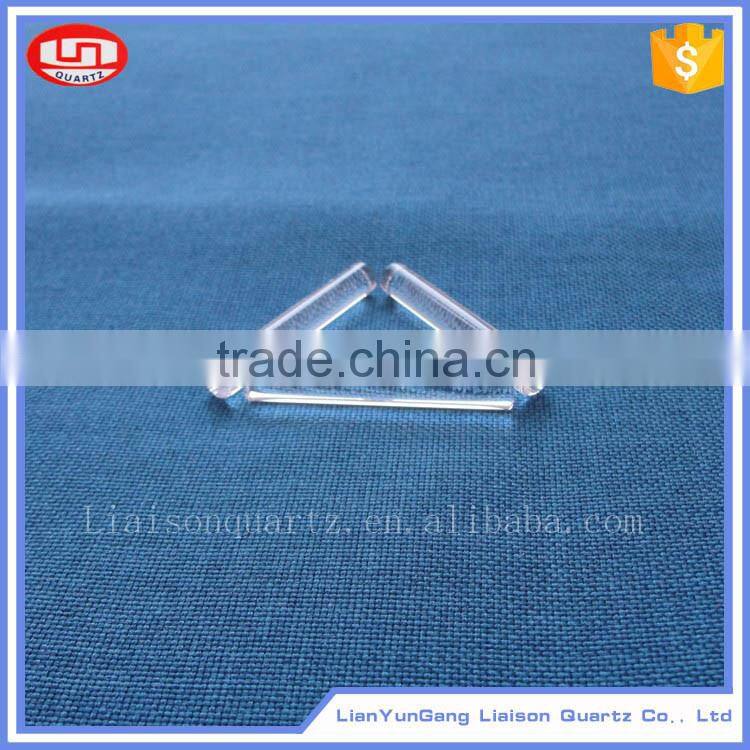

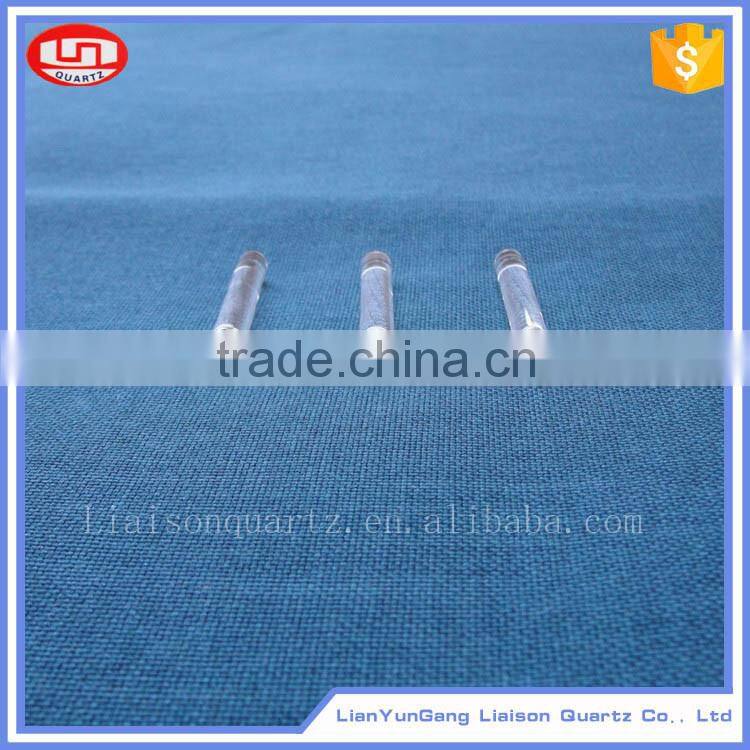

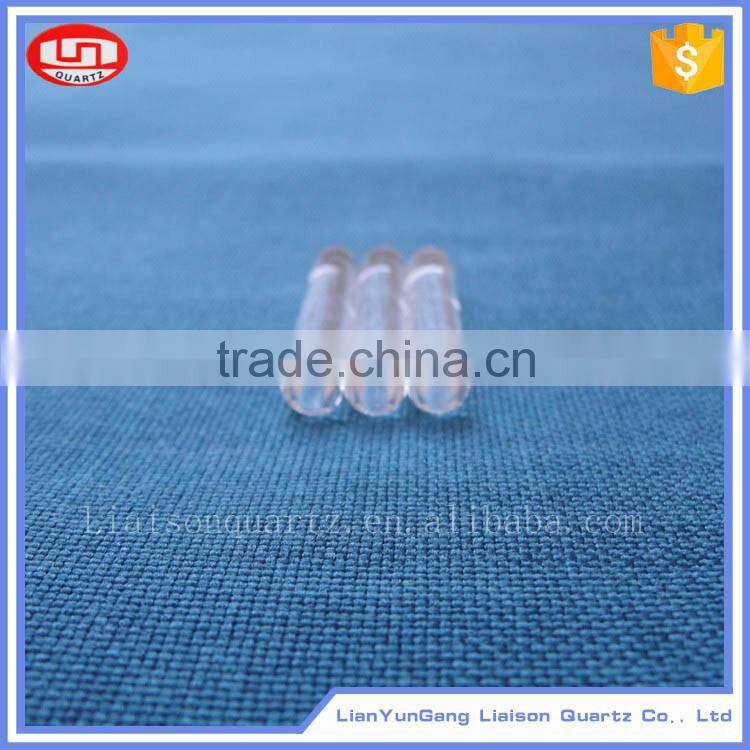

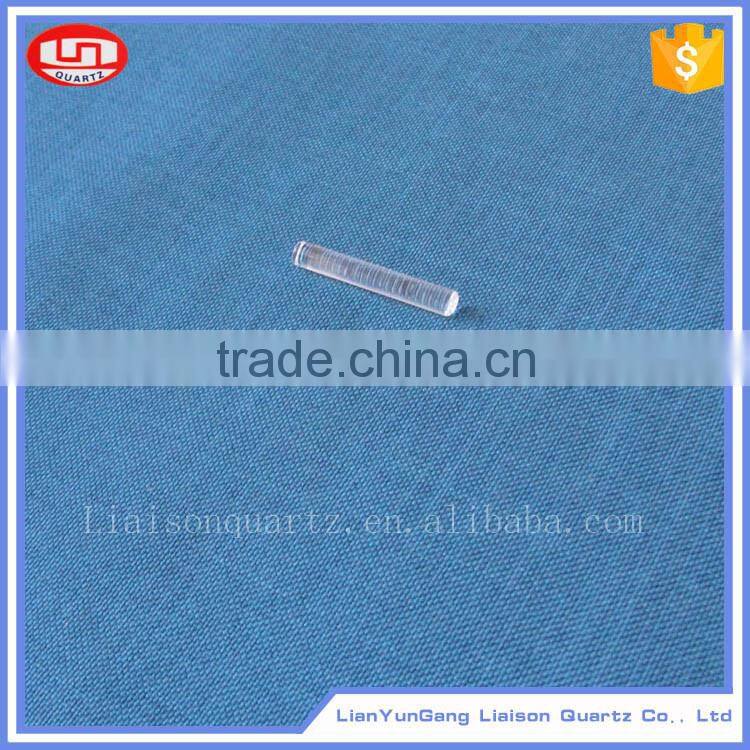

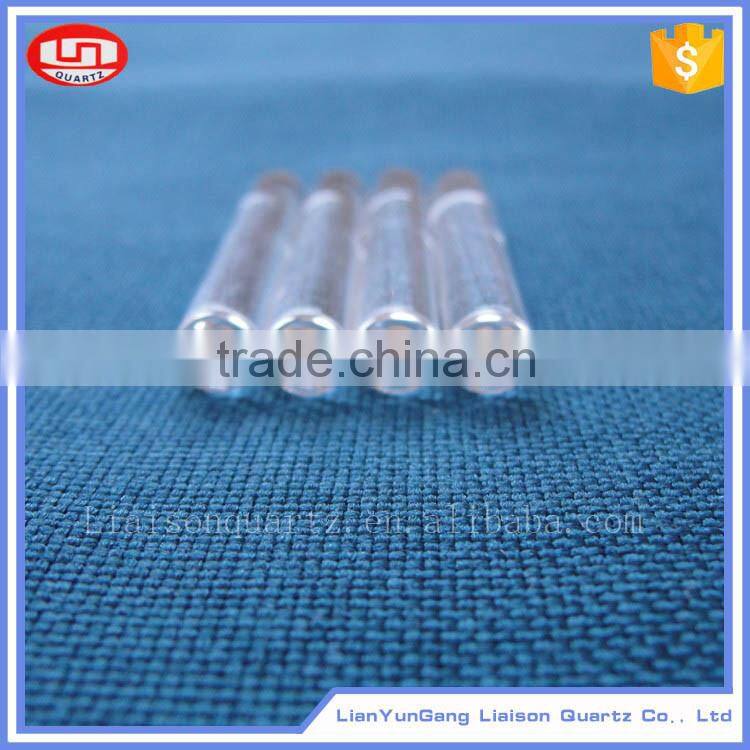

Crystal quartz glass rod

Product Description

SiO2	99.99%
Density	2.2g/cm3
Degree of hardness Moh's Scale	6.6
Melting Point	1732C
Working Temperature	1100C
Acid tolerance	30 times than Ceramics , 150 times than Stainless steel
Visible light transmittance	Above 93%
Resistance value	10000 times than ordinary glass
Strain point	1100C
Annealing point	1180C
softening point	1680C

Dimension Specification(mm)

Diameter and Tolerance	Max. out of Round
2.0+/-0.1	0.1
2.5+/-0.1	0.1
3.0+/-0.1	0.1
4+/-0.15	0.15
5+/-0.15	0.15
8+/-0.2	0.2
10+/-0.2	0.2
15+/-0.2	0.2
19+/-0.3	0.3

Chemmical Composition(Unit:PPM)

Al	Fe	K	Na	Li	Ca	Mg	Cu	Mn	Cr	B	Ti
5~12	0.19~1.5	0.71~1.6	0.12~1.76	0.38~0.76	0.17~1.23	0.05~0.5	0.05	0.05	<0.05	<0.1	<1.0

Application of quartz rod : Linear light source products, light guide stick, light pipe, Fiber Lighting, Quartz fiber manufacturing,semiconductor silicon wafer, hollow half round.

Application of standard clear quartz tube: halogen lamp, mercury lamp, single end lamp,automobile lamp,stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing,quartz ware and pipe.

Application of Ultraviolet quartz tube : Single-ended metal halide lamp,automobile metal halide lamp,G12 metal halide lamp, anti-explosion metal halide lamp, High power stage light and so on.

Application of free ozone quartz tube : Kill germs free ozone light,the material of hospital ,family,and public place Ultraviolet kill germs,and water treatment.

Application of film coated quartz heater tube: Instant Hot water heater, Alkaline water purifier, Electrothermal heater, Oven heating, Aquarium heater,Screen Printing, Drying, Sealing, Food Warming, Plastic Forming, Laminating.

Application of quartz plate: military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, firehole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.

Production Flow

General process of quartz rod : Cutting-Cleaning-Drying-Fire polishing-Packing

Company Profile

Lianyungang Liaison Quartz Co., Ltd.

Lianyungang Liaison Quartz Co., Ltd. covers an area of more than 8,000 square meters, with a building area of 4,000 square meters. We have nearly 50 existing engineering and technical personnel, with an annual output of nearly 500 tons of high-quality quartz glass tubes. Our main products are transparent quartz glass tube, creamy white quartz glass tube, low-quartz glass tube, filter UV quartz glass tube and ozone quartz glass tube. We sell our products to clients in the United States, the UK, Japan, South Korea and more than 30 domestic and overseas manufacturers. Our company follows the tenet of "quality first, supremacy of users" and adheres to the aim of "integrity, efficient innovation and pragmatism". We adhere to the policy of "technical innovation". We pay attention to product quality and after-sales service. We welcome friends from at home and abroad to seek common development. Our company is located in Donghai County in Jiangsu Province. With highways, railways, and civil aviation and maritime networks, the transportation is extremely convenient. We set up a company in 2005 to import advanced quartz tube processing equipment, including quartz tube cutting, mouth and back burning, and flanging equipment. Our facilities are widely used in disinfection product, aquatic light, and heater production. We warmly welcome clients' presence in all sectors.
