YJQ-W2Q Pneumatic Indent Crimp Tools for the Renovator Tool and Cable Connector B11
- Shanghai/Ningbo port
 - Credit Card PayPal

You May Like
-


YJQ-W2Q Four Indent Pneumatic Crimp Tool Wire Range 12-26AWG Used in Electronic Connectors
 -


YJQ-MH992 Fined Tipped Crimp Tool Miniature Adjustable Plier 36AWG Used in Racing Car Field
 -


YJQ-W7A DMC MH860 Electrical Tools Names Adjustable Aviation Hand Crimp Tool M22520/7-01 16-28AWG Multifunctional Plier D65
 -


DMC Stanard Adjustable Pneumatic Crimp Tool DMC WA22 YJQ-W1Q-BM2 M22520/2-01 20-32AWG
 -


YJQ-W7Q-BM2 Pneumatic &hand Tool Crimping Tool Suitable for Wire Range 16-28AWG Used in Electronic Connectors B53
 -


YJQ-W7A (M22520/7-01)adjustable Wire Crimper Wire Range16-28AWG Electronic Connectors

Product Details
| Place of Origin | Zhejiang, China | Brand Name | precisetool | |
| Model Number | YJQ-W2Q | Type | Other, Pneumatic crimp tool unit |
Product Description
YJQ-W2Q Pneumatic Indent Crimp Tools for the renovator tool and cable connector B11 designs for precise crimping.

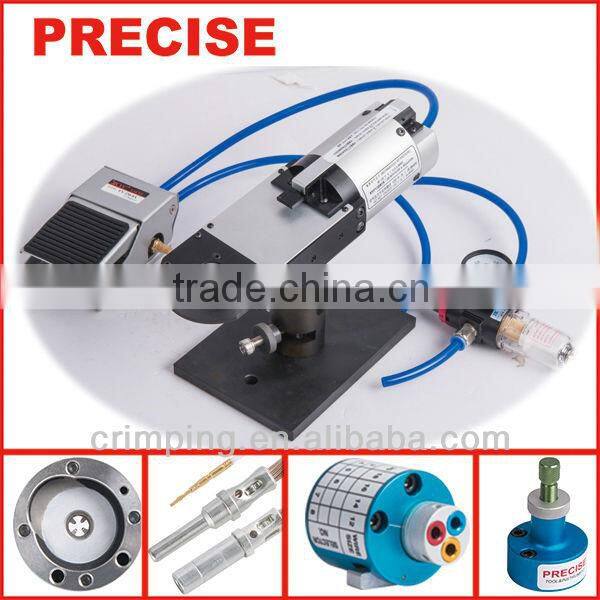

YJQ-W2Q-BM2 contains YJQ-W2Q crimp tool frame, BM-2 bench mount, Foot value, Pressure regulating valve and Air hose etc. which are supplied with the tool. (The positioner should be ordered separately)
WORKING PRINCIPLES
1. Crimping Method
The crimping tool adopts curve propulsion mechanism, its applied force transfers through four curves in the head cavity of the right plier handle to the four indenters. The four intenders do the centripetal linear motion, which makes its front-end teeth crimp the contact to complete the crimping process. The cycle controlled precision ratchet assures the consistency of impression and the crimping quality of wires and contacts.
2. Crimping Range Adjustment
The crimping tool has eight selector numbers; the accurate data are listed as follows:
Selector NO.  | Intender Working Diameter mm/INCH  | |
A GO  | B NO GO  | |
1  | 0.71/0.028  | 0.84/0.033  |
2  | 0.81/0.032  | 0.94/0.037  |
3  | 0.91/0.036  | 1.04/0.041  |
4  | 0.99/0.039  | 1.12/0.044  |
5  | 1.14/0.045  | 1.27/0.050  |
6  | 1.32/0.052  | 1.45/0.057  |
7  | 1.50/0.059  | 1.63/0.064  |
8  | 1.73/0.068  | 1.86/0.073  |
3. Gaging Instructions

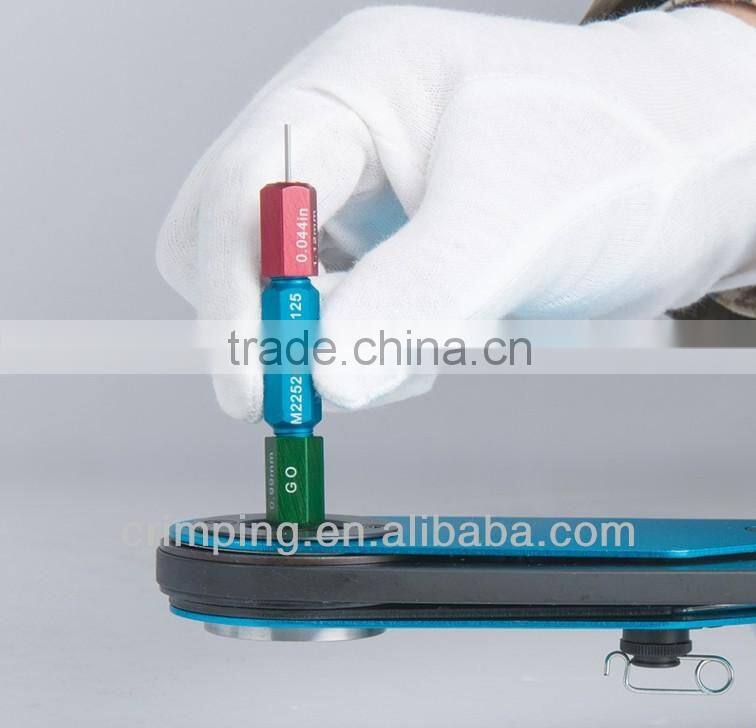

“GO” Gaging: keep the tool in fully closed position, insert the green “GO” gage end into the indenter, it should be easy to enter, otherwise, the selector gear is incorrect.
(CAUTION! DO NOT CRIMP GAGE!)
“NO GO” Gaging: keep the tool in fully closed position, insert the red “NO GO” end into the indenter, it can’t pass through completely, otherwise, the selector gear is incorrect.
(CAUTION! DO NOT CRIMP GAGE!)
CRIMPING INSTRUCTIONS
- Connect the tool frame, base plate, pressure regulating valve and hose as the follow picture. (The units should be purchased separately besides the tool frame)

2. Working air pressure: 80-120 P.S.I.
Maximum pressure: 120 P.S.I.(5.5-8.3BAR)
It is suitable for all positioners which is matched with M22520/1-01 adjustable hand crimp tool.(The positioners should be purchased separately)
3. Insert the contact and prepare the wire through the indenter from the opposite side. Supply air for the tool frame by using foot treadle or hand switch. Loosen it after the crimping operation finished.
4. Remove the finished assembly and insert the next contact to be crimped.
CAUTIONS
- Keep the crimping tool and other units clean and properly stored when not in use or no operator maintenance.
 - Don’t try to immerse tools in cleaning solution or spray oil into tools to lubricate.
 - If finding anomalies due to the incorrect ways, don’t attempt to disassemble tools or make repairs. Please stop using it and connect us as soon as possible, our company will offer complete refurbishing and recalibration services.
