Home > Tools & Hardware > Hand Tools > Pliers > YJQ-W7A DMC MH860 Electrical Tools Names Adjustable Aviation Hand Crimp Tool M22520/7-01 16-28AWG Multifunctional Plier D65

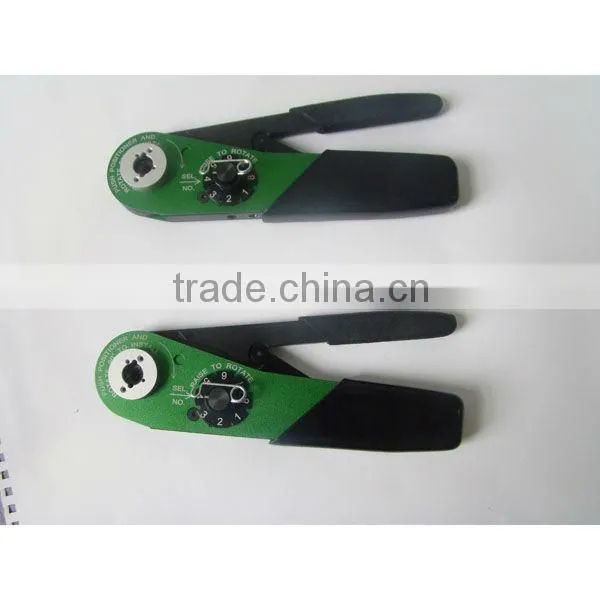

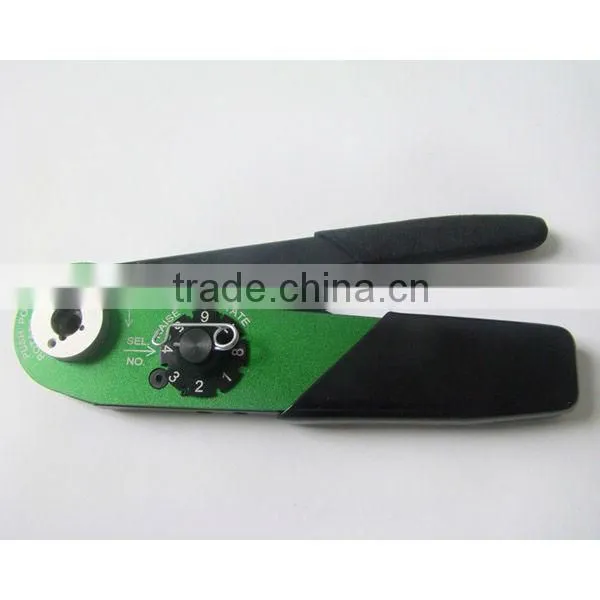

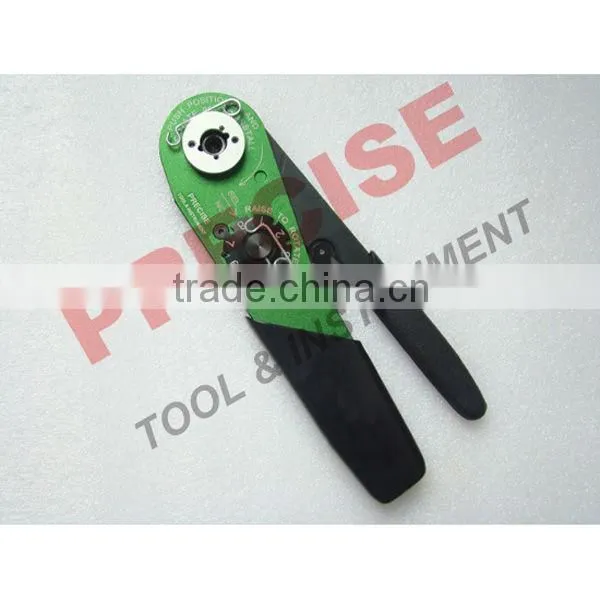

YJQ-W7A DMC MH860 Electrical Tools Names Adjustable Aviation Hand Crimp Tool M22520/7-01 16-28AWG Multifunctional Plier D65

Name: YJQ-W7A DMC MH860 Electrical Tools Names Adjustable Aviation Hand Crimp Tool M22520/7-01 16-28AWG Multifunctional Plier D65
Brand: Precisetool
SKU: 131350441
Availability: InStock

YJQ-W7A DMC MH860 Electrical Tools Names Adjustable Aviation Hand Crimp Tool M22520/7-01 16-28AWG Multifunctional Plier D65 thumbnail-1

YJQ-W7A DMC MH860 Electrical Tools Names Adjustable Aviation Hand Crimp Tool M22520/7-01 16-28AWG Multifunctional Plier D65 photo-1

US$ 170 - 170 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Precisetool

Model Number:

YJQ-W7A

Contact Supplier Request Quote Chat Now

Jiaxing Jingrui Instrument&Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Precisetool

Model Number YJQ-W7A

Type Other, hand crimp tool

Material Chrome Vanadium

Application Multi Functional

YJQ-W7A electrical tools names Adjustable aviation hand crimp tool M22520/7-01 16-28AWG multifunctional plier D65

GENERAL INFORMATION

1. YJQ-W7A is compatible with the M22520/7-01 which is widely used for the crimping of wires and contacts in electronic connectors.

2. Wire crimp range: 16AWG (1.32mm^2) to 28AWG (0.08mm^2).

WORKING PRINCIPLES

1. Crimping Method

The crimping tool adopts curve propulsion mechanism, its applied force transfers through four curves in the head cavity of the right plier handle to the four indenters. The four intenders do the centripetal linear motion, which makes its front-end teeth crimp the contact to complete the crimping process. The cycle controlled precision ratchet assures the consistency of impression and the crimping quality of wires and contacts.

2. Crimping Range Adjustment

The crimping tool has eight selector numbers, the accurate data are listed as follows:

Selector NO.	Intender Working Diameter mm/INCH
Selector NO.	A GO	B NO GO
1	0.41/0.016	0.53/0.021
2	0.48/0.019	0.61/0.024
3	0.56/0.022	0.69/0.027
4	0.64/0.025	0.76/0.030
5	0.74/0.029	0.86/0.034
6	0.84/0.033	0.96/0.038
7	0.94/0.037	1.07/0.042
8	1.04/0.041	1.17/0.046

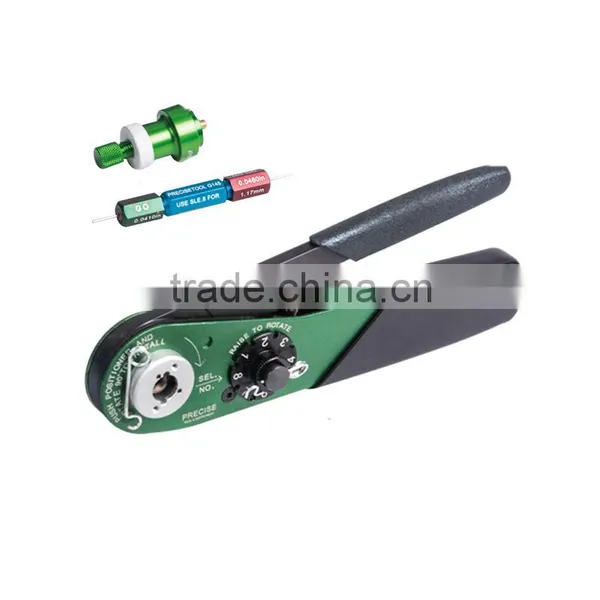

3. Gaging Instructions

“GO” Gaging: keep the tool in fully closed position, insert the green “GO” gage end into the indenter, it should be easy to enter, otherwise, the selector gear is incorrect

(CAUTION! DO NOT CRIMP GAGE!)

“NO GO” Gaging: keep the tool in fully closed position, insert the red “NO GO” end into the indenter, it can’t pass through completely, otherwise, the selector gear is incorrect.

(CAUTION! DO NOT CRIMP GAGE!)

CRIMPING INSTRUCTIONS

1. Insert the contact and prepare the wire through the indenter from the opposite side.

2. Squeeze the handles together until ratchet releases. Then the handle will return to its open position automatically.

YJQ-W7A APPLICATION

MIL-DTL-22992	MIL-DTL-24308
MIL-DTL-26482 SERIES 1	MIL-DTL-26482 SERIES 2
MIL-DTL-26500	MIL-DTL-26518 CLASS R
MIL-DTL-28748	MIL-DTL-28804
MIL-C-38300	MIL-PRF-38999 SERIES 1
MIL-PRF-38999 SERIES 2	MIL-PRF-38999 SERIES 3
MIL-PRF-38999 SERIES 4	AS50151(FORMERLY MIL-C-5015) SERIES 3400
AS50151(FORMERLY MIL-C-5015) SERIES 3450	MIL-C-81511 SERIES 1
MIL-C-81511 SERIES 2	MIL-C-81511 SERIES 3
MIL-C-81511 SERIES 4	MIL-DTL-81659 SERIES 1
MIL-DTL-81659 SERIES 2(ARINC 404)	MIL-C-81703 SERIES 2
MIL-C-81703 SERIES 3	MIL-DTL-83527(ARINC 600)
MIL-DTL-83723 SERIES 2	MIL-DTL-83723 SERIES 3
MIL-DTL-83733	MIL-C-85028 SERIES AS
AS81714	MIL-STD-1549

YJQ-W7A APPLICATION MARKET

civil aviation & military plan/ helicopter	weapon launcher
aviation	railway
physical geography & maritime	manufacturing industry & environmental protection
Instrument	racing car
nuclear industry	other fields

CAUTIONS

1. Keep the crimping tool and other units clean and properly stored when not in use or no operator maintenanc.

2. Don’t try to immerse tools in cleaning solution or spray oil into tools to lubricate.

3. If finding anomalies due to the incorrect ways, don’t attempt to disassemble tools or make repairs. Please stop using it and connect us as soon as possible, our company will offer complete refurbishing and recalibration services.
