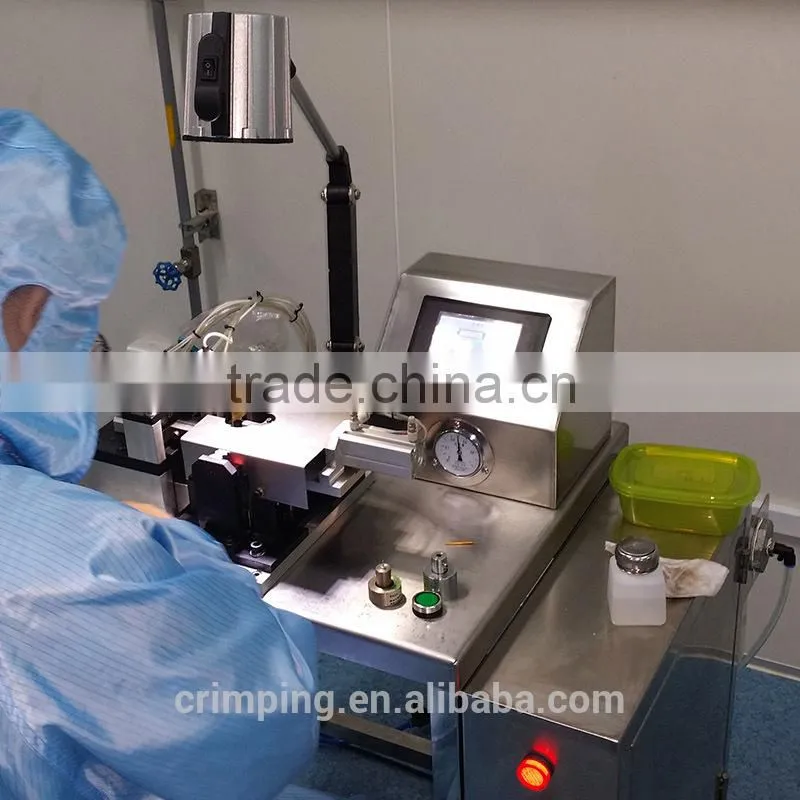

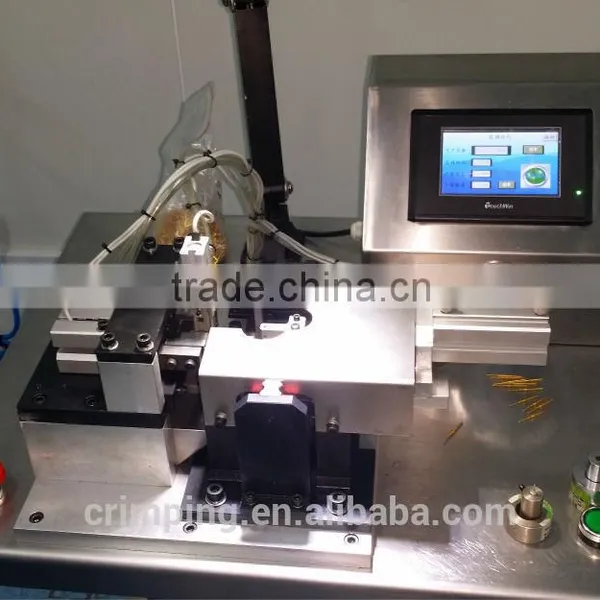

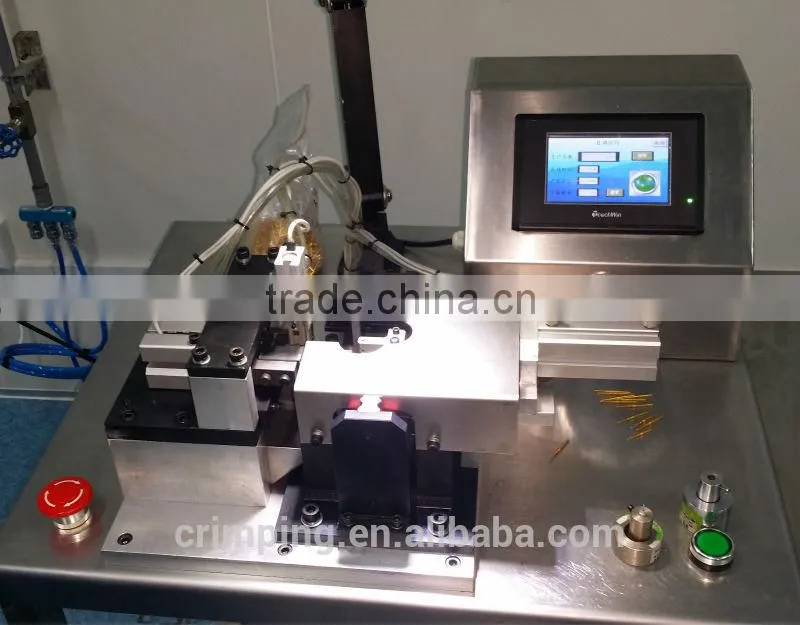

SKJ-01 Pneumatic Contact Necking Machine/Shrinking Machine for Electronic Connectors
1,General Introduction

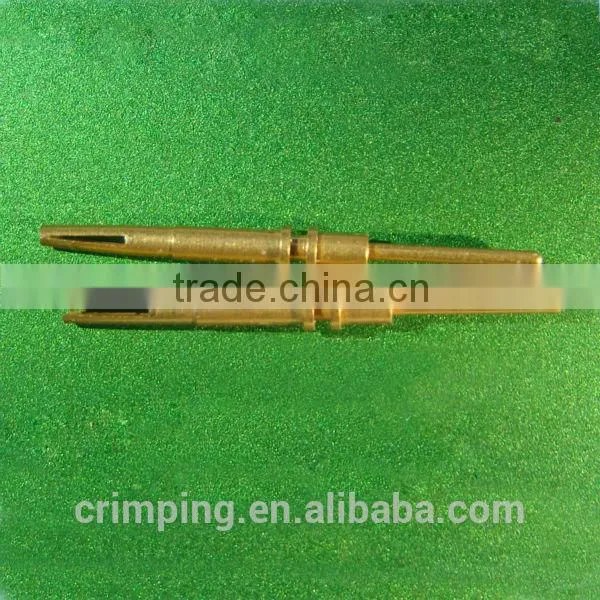

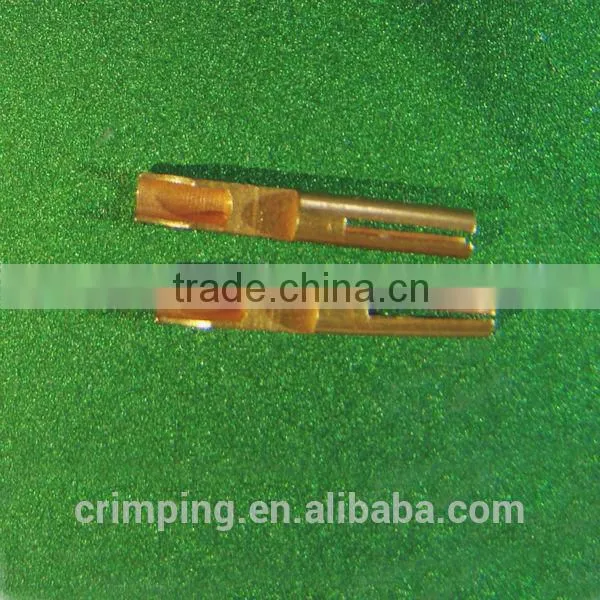

SKJ-01 half-automatic contact necking machine is a professional device in the electronic contacts production process. The function is to precisely operate on the plug interface of the contact, so that to create a relatively stable force of the contact. The machine is controlled by PLC automatic system, one-time finish necking pressing operation. Easy and Efficient.
2, Technical Parameters
(1)Working Voltage:220v,50HZ, Control Voltage:24v
(2) Compressed Air :0.65-0.8MPa

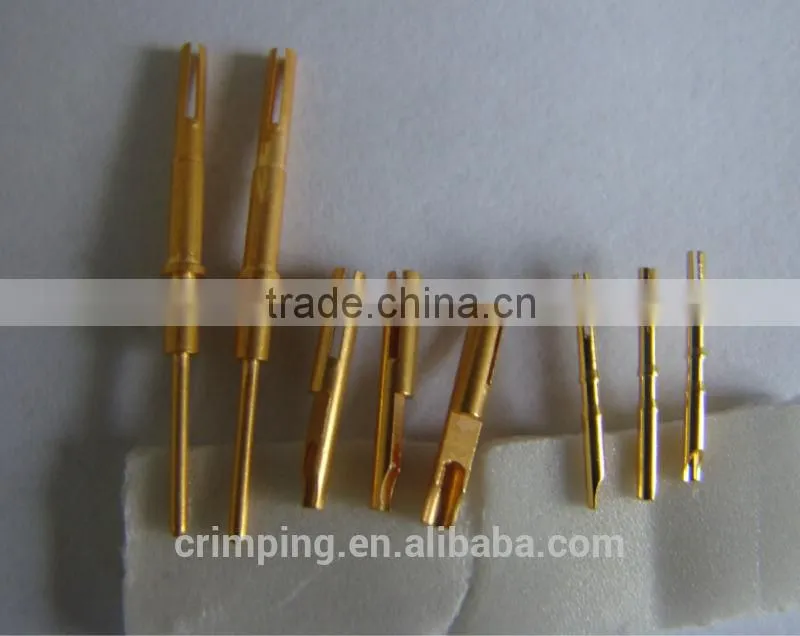

(3)Shrinking Pressure: suitable for any contact pin and socket below ¢1.
3, Structural Composition
The machine is composed by gripper mechanism, parallel push mechanism, vertical push mechanism, convergent mechanism, electrical control box and workbench.
