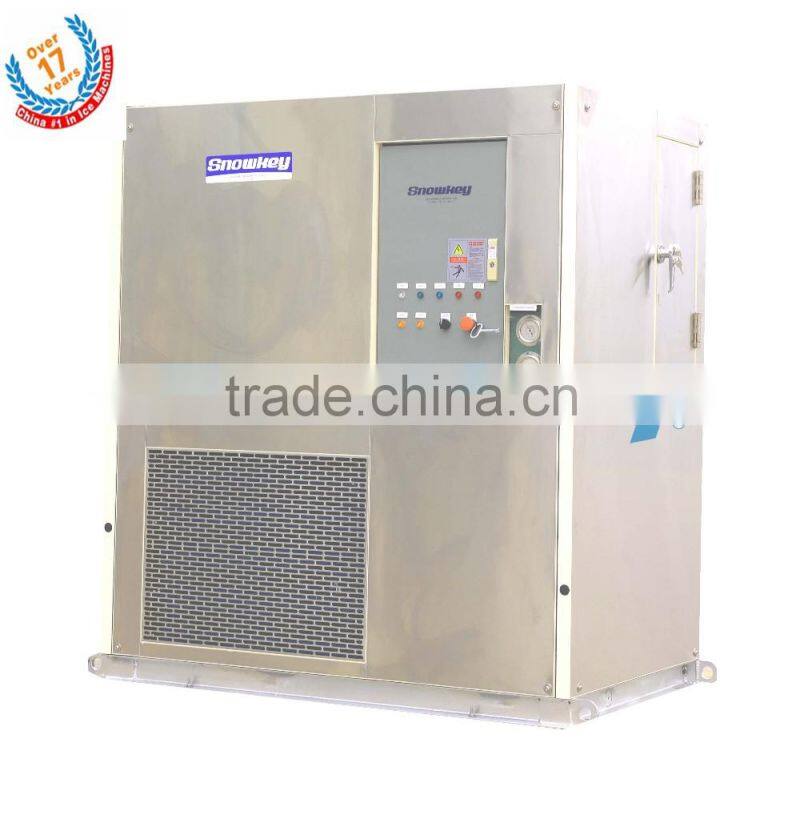

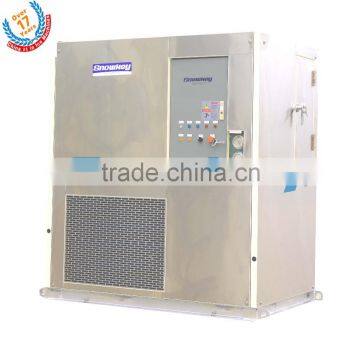

2016 Hot Sale 1T Plate Ice Machine Commercial Ice Machine Ice Maker For Sale
- 20 Set / Sets per Month
- fuzhou
- T/T
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
- New York FRICK Industrial Refrigeration Unit 649C1091G01 Kunteng 4-LX Control System Main Board
- New GEA explosion-proof energy level sensor model 62750016
Product Details
Condition: | New | Capacity: | 1000kg/24h | Brand Name: | Snowkey |
Model Number: | P10A | Ice Shape: | Other, plate ice | Voltage: | 380v/50hz/3p |
Power(W): | 4.67kw | Dimension(L*W*H): | 1590*1070*1775mm | Weight: | 1200kg |
Certification: | CE | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Plate ice machine applications
1 Aquatic product processing, cooling,preserving and transportation
2 Edible ice making factory
3 Port ice making factory
4 Chemical projects and dye cooling and temperature reduction
5 Medical treatment and medicine
6 Cooling, temperature reduction and preservation, etc.
7 Cold storage central air conditioner
8 Cold water temperature reduction system
Plate ice machine conditions
Electrical require: Full electric system complying
With the general international standard
Standard condilion: Water inlet temp.16°C Amibenttemp. 25°C
Application condilion: Ambient temp.5°C~40°C water temp. 5°C~35°C
Special condition: Ambient temp.-30°C~60°C water temp.5°C~46°C
Ice thickness: 10~12mm
Refrigerant: R717,R22 ,R404A,R507A
Plate ice machine evaporator feature
1.SNOWKEY plate ice ranges from 5mm to 30mm (wherein, 15mm to 30mm is specially designed) in thickness and 20mm to 50mm in width and has no fixed shape. Its thickness and width maybe freely adjusted according to use.
2.SNOWKEY plate ice boasts even cooling effect, good ventilation, and even constant refrigeration temperature. So it is very suitable for refrigerating aquatic products.
3.As transparent crystal, SNOWKEY plate ice doesn't melt easily, so it can be stored for a longer time. Ordinary ice is opaque since it contains air bubbles and impurities and is small in density, soft in texture and likely to melt. However, SNOWKEY plate ice is pure in color and luster, hard, transparent, dry and powerless. Due to small surface area, it achieves better cold storage effect and spends 30% more time in melting than other types of ice.
4.SNOWKEY plate ice fully conforms to the certification requirements of HACCP and FDA. It can be applied to such fields as ice cold storage air conditioners, edible ice, aquatic foods, chemical industry, etc.
Some standard plate ice machine list parameters and outline drawing | ||||||
Modle(PIM) | 100WF | 150WF | 200WF | 300WF | 400WF | 1000WF |
Ton/Day(ton) | 10 | 15 | 20 | 30 | 40 | 100 |
Machine structure | Evaporator compressor unit | |||||
Thickness(mm) | 10~12 | 10~12 | 10~12 | 10~12 | 10~12 | 10~12 |
Length(mm) | 2110 2200 | 2900 1600 | 3620 2700 | 2900*2 2700 | 3620*2 2700*2 | 3620*5 2700*5 |
Width(mm) | 1700 1250 | 2200 1810 | 2200 2200 | 2200 2200 | 2200 2200 | 2200 2200 |
Hight(mm) | 2385 1270 | 2390 1360 | 2490 2190 | 2390 2190 | 2490 2190 | 2490 2190 |
Cooling water(DN) | 80 | 80 | 100 | 100 | 125 | 200 |
Raw water inlet(DN) | 25 | 40 | 40 | 50 | 50 | 65 |
Water drain (DN) | 50 | 40 | 40 | 50 | 50 | 65 |
Power supply cable port (mm) | 40 | 40 | 40 | 50 | 50 | 70 |
Net weight(kg) | 2500 | 2700 | 3000 | 5400 | 6000 | 15000 |
Compressor power (HP) | 50 | 60 | 80 | 120 | 160 | 400 |
Ice machine pump power(kw) | 1.1 | 1.5 | 2.2 | 2.2 | 4.4 | 8.8 |
Crusher power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 4 |
Evaporator(unit) | 20 | 32 | 40 | 64 | 80 | 200 |
Charged refrigerant(kg) | 60 | 100 | 140 | 220 | 280 | 600 |
