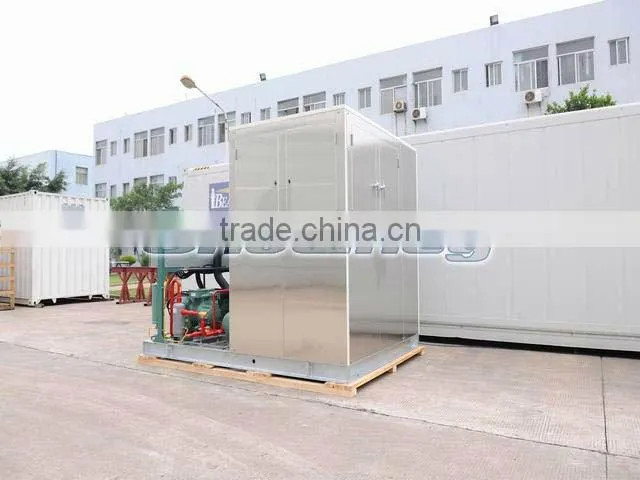

15T Medium-Sized New Design Plate Ice Machine-2012(15T/Day)

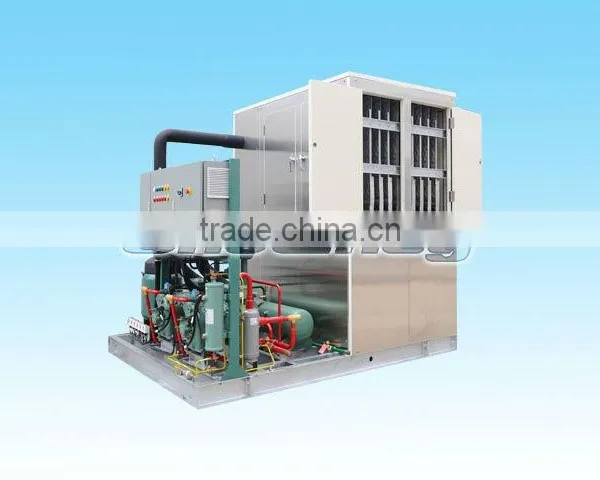

Specifications

1.High efficiency
2.energy saving.
3.save energy by more than 30%.
4.Certification:ISO9001 , ISO14001 , CE , PED

 Plate ice machine applications
1 Aquatic product processing, cooling,preserving and transportation
2 Edible ice making factory
3 Port ice making factory
4 Chemical projects and dye cooling and temperature reduction
5 Medical treatment and medicine
6 Cooling, temperature reduction and preservation, etc.
7 Cold storage central air conditioner
8 Cold water temperature reduction system


Plate ice machine conditions
Electrical require:        Full electric system complying
 With the general international standard
Standard condilion:     Water inlet temp.16°C Amibenttemp. 25°C
Application condilion: Ambient temp.5°C~40°C water temp. 5°C~35°C
Special condition:         Ambient temp.-30°C~60°C water temp.5°C~46°C
Ice thickness:                10~12mm
Refrigerant:                     R717,R22 ,R404A,R507A
Plate ice machine feature
1.SNOWKEY plate ice ranges from 5mm to 30mm (wherein, 15mm to 30mm is specially designed) in thickness and 20mm to 50mm in width and has no fixed shape. Its thickness and width maybe freely adjusted according to use.
2.SNOWKEY plate ice boasts even cooling effect, good ventilation, and even constant refrigeration temperature. So it is very suitable for refrigerating aquatic products.
3.As transparent crystal, SNOWKEY plate ice doesn't melt easily, so it can be stored for a longer time. Ordinary ice is opaque since it contains air bubbles and impurities and is small in density, soft in texture and likely to melt. However, SNOWKEY plate ice is pure in color and luster, hard, transparent, dry and powerless. Due to small surface area, it achieves better cold storage effect and spends 30% more time in melting than other types of ice.
4.SNOWKEY plate ice fully conforms to the certification requirements of HACCP and FDA. It can be applied to such fields as ice cold storage air conditioners, edible ice, aquatic foods, chemical industry, etc.



Plate ice machine evaporator feature

Plate ice evaporator mainly fall into two kinds, namely, aluminium alloy plate ice evaporator and stainless steel plate ice evaporator. Plate ice evaporator adopts direct expansion systems and use R-22, R507A, R404A or ammonia (NH3) as the cooling medium.
1 Evaporator manufactured with special technologies
The 735mm*1445mm large-sized evaporator is manufactured of pure stainless steel with the world's most sophisticated laser-welding technologies.

2 Special water circulation system
The raw material water flows evenly on the surface of the evaporator, and gathers into the water tank through the special water trough at the bottom of the evaporator. Then the water is pumped to the water distributor in the top of the evaporator and returns to the surface of the evaporator to freeze.

3 Mode of peeling ice at a high speed and without additional heat
It's unnecessary to introduce hot gas from outside since the hot Freon gas produced by the plate ice machine itself is fed into the plate ice evaporator.

4 Modular design
The machine body adopts steel welding and galvanized structure, which boasts anti-corrosion, high stability, and can ensure good running in various hard working conditions.



Some standard plate ice machine list parameters and outline drawing
Modle(PIM)	100WF	150WF	200WF	300WF	400WF	1000WF
Ton/Day(ton)	10	15	20	30	40	100
Machine structure	Evaporator compressor unit
Thickness(mm)	10~12	10~12	10~12	10~12	10~12	10~12
Length(mm)	2110 2200	2900 1600	3620 2700	2900*2 2700	3620*2 2700*2	3620*5 2700*5
Width(mm)	1700 1250	2200 1810	2200 2200	2200 2200	2200 2200	2200 2200
Hight(mm)	2385 1270	2390 1360	2490 2190	2390 2190	2490 2190	2490 2190
Cooling water(DN)	80	80	100	100	125	200
Raw water inlet(DN)	25	40	40	50	50	65
Water drain (DN)	50	40	40	50	50	65
Power supply cable port (mm)	40	40	40	50	50	70
Net weight(kg)	2500	2700	3000	5400	6000	15000
Compressor power (HP)	50	60	80	120	160	400
Ice machine pump power(kw)	1.1	1.5	2.2	2.2	4.4	8.8
Crusher power(kw)	0.75	0.75	0.75	1.5	1.5	4
Evaporator(unit)	20	32	40	64	80	200
Charged refrigerant(kg)	60	100	140	220	280	600
