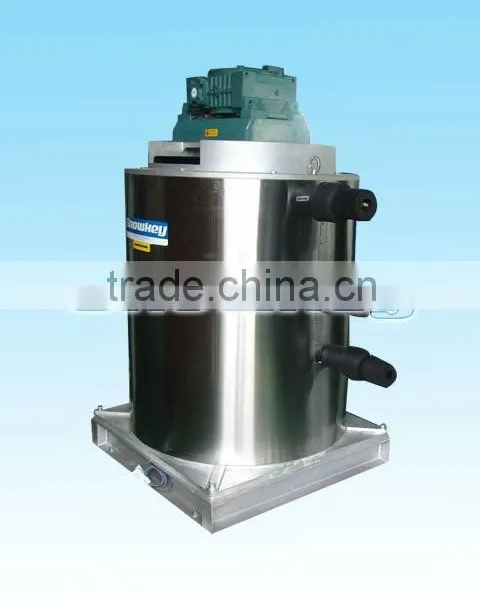

Help Center7.5T Sea-water Flake Ice Evaporator(7.5T)
Related Products
-
Flake Ice Machine With Air-cooler Condenser (5Ton/Day)US$ 28,000 - 35,000MOQ: 1 Set -
Ice Flake Making MachineUS$ 5,000 - 20,000MOQ: 1 Set
-
Ice Flake Making Machines for Sale(3Ton/Day)US$ 18,000 - 18,400MOQ: 1 Set
-
Flake Ice Machine for Sales in SupermarketUS$ 5,000 - 100,000MOQ: 1 Set
-
Snowkey Hot Sale Ice Flake Machine for Fishery F100AF 10000kgs per 24 Hours Flake Ice MachineUS$ 25,000 - 40,000MOQ: 1 Unit
Specifications
1 Ice--dry, uniform, clean2 Special design & engergy saving
3 Special material & processing technology
4 Water return system
Small flake ice machine Evaporator condition
Electrical require: Full electric system complying,With the general international standard
Standard condilion: Water inlet temp.16°C
Amibenttemp. 25°C
Application condilion: Ambient temp.5°C~40°C
water temp. 0.5°C~35°C
Special condition: Ambient temp.-30°C~60°C
water temp.0°C~46°C
Ice thickness: 1.5~2.2mm
Refrigerant: R717,R22 ,R404A,R507A
Small flake ice machine Evaporator Materials selection
Evaporator
Freeze Surface -
1.SUS304
2.SUS316L
3.Q345 Plated Chrome
Topbottom
1.SUS304
2.SUS316L
3.Q345 Plated Chrome
Small flake ice machine Evaporator features
Special design,high efficiency and engergy saving
——In the course of evaporator design and development, the internal struccture is paied with spwciial attention so as to improve the heat conduction efficiency of the inner wall of evaporator and keep the loop unblocked with special technology.
——The internally-scraping ice-making mode has been adopted.Unde this mode,ice blades scrape ice on the inner wall of the evaporator while the evaporator itself doesn't move, it reduces the loss of energy as much as possible, guarantees the supply of cooling agent as well as lowers the probability of cooling agent leakage.
Special material
——In terms of the material for the evaporator, a secial of kind of imported alloy is adopted,Its heat conduction performance is superior and conforme with international standards for refrigeration and pressure containers.
Special processing technology
——Special technology of processing alloy material is adopted for the evaporator.We have specially researched and developed a set of technology of welding, surface treatment and stress elimination.Besides we have also adopted sophisticated equipment of welding, heat treatment and stress eliminating as well as photo-furance.
Water return system
——The water flowing down the inner wall of evapprator flows into the water trough through the water pan at the bottom of evaporator and then into the water tank.The large-area design and structure of water reception pan ensure that no water leaks from leaks from the bootom of ice laker and adoid lumped ice flakes
Small flake ice machine Evaporator's model,performance parameter and diagram
| Model | F050S | F075S | F10S | F12S | F16S | F20S | F25S |
| Capacity(T/day) | 0.5 | 0.75 | 1 | 1.2 | 1.6 | 2 | 2.5 |
| Evaporating temp.°C | -20°C | -20°C | -20°C | -20°C | -20°C | -20°C | -20°C |
| Reducer Power(Kw) | 0.18 | 0.18 | 0.18 | 0.18 | 0.37 | 0.37 | 0.37 |
| Circulating Pump Power(Kw) | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.03 | 0.03 |
| Water pipe | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
| Overflow pipe | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
| Drain pipe | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
| Weight(Kg) | 104 | 120 | 108 | 140 | 200 | 220 | 250 |
| Dimension(mm) | 478 | 478 | 478 | 478 | 650 | 650 | 650 |
| Hight(mm) | 680 | 735 | 795 | 795 | 969 | 969 | 1029 |
| Necessary Ref Capacity (KCAL/H) |
2350 | 3600 | 4700 | 5700 | 7520 | 9400 | 17500 |
Ice Between Snowkey And Other Company:

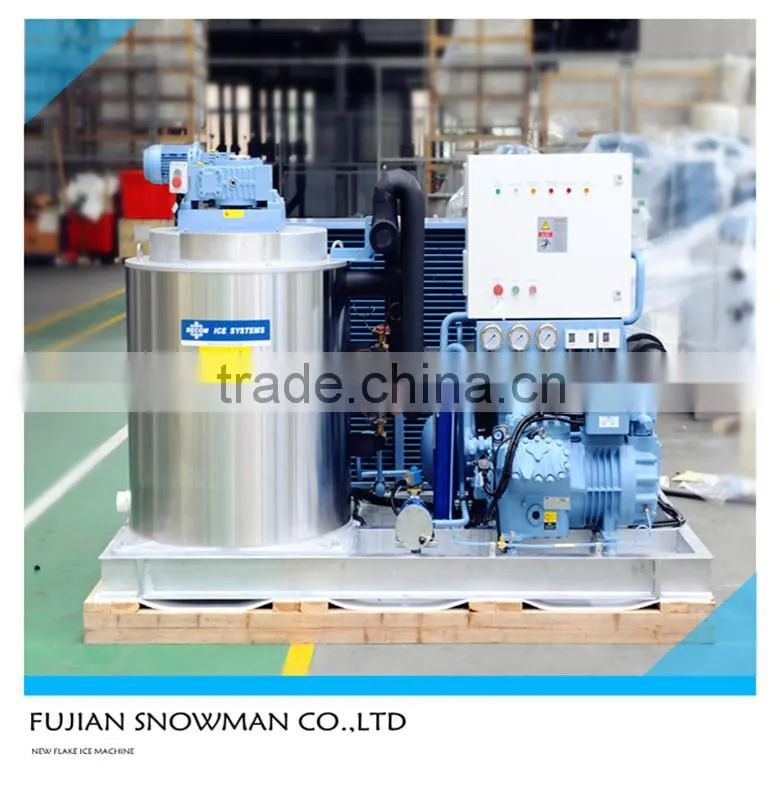

Snowkey Flake Ice Machine:
Snowkey Certificates:
Snowkey Factory:
