Energy-saving Concrete Mixing Flake Ice Cooling System Concrete Cooling
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Capacity:
From 10ton/day to 120ton/day
Place of Origin:
Fujian, China
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CHINA TOP1 Concrete Cooling System in Mid-East Best SellerUS$ 100,000 - 2,000,000MOQ: 1 Set -
Concrete Cooling SystemsUS$ 100,000 - 2,000,000MOQ: 1 Set
-
Containerized Automatic Ice Storage BinNegotiableMOQ: 1 Unit
-
Concrete Cooling SystemsUS$ 100,000 - 2,000,000MOQ: 1 Set
-
Nuclear Power Plant-FuqingUS$ 100,000 - 2,000,000MOQ: 1 Set
Condition
New
Capacity
From 10ton/day to 120ton/day
Place of Origin
Fujian, China
Brand Name
SNOWKEY
Model Number
FIP/AIS/WCS
Ice Shape
Flake Ice
Voltage
380v/50hz/3p
Power(W)
to order
Dimension(L*W*H)
12056*2347*2684mm
Weight
to order
Certification
CE
Warranty
16 months after sending the bill of lading date
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1,The leader of global concrete cooling system field;2,ASME for pressure vessels,CE certificate.
3,Global after-sales service
Snowkey-The most professional ice maker in the world.
Snowkey offer you best solutions for concrete batch plant.
1,Containerized Flake Ice Plant (from 10ton/day to 180ton/day);
| MODEL | FIP10 | FIP15 | FIP20 | FIP25 | FIP30 | FIP35 | FIP40 | FIP45 | FIP50 | FIP60 | FIP70 | FIP80 | FIP90 | FIP100 | FIP120 | FIP140 | FIP180 |
| ice capacity | 10t/day | 15t/day | 20t/day | 25t/day | 30t/day | 35t/day | 40t/day | 45t/day | 50t/day | 60t/day | 70t/day | 80t/day | 90t/day | 100t/day | 120t/day | 140t/day | 180t/day |
| water supply | 0.4t/hr | 0.6t/hr | 0.8t/hr | 1.1t/hr | 1.3t/hr | 1.5t/hr | 1.7t/hr | 1.9t/hr | 2.1t/hr | 2.5t/hr | 2.9t/hr | 3.4t/hr | 3.8t/hr | 4.2t/hr | 5.1t/hr | 5.9t/hr | 7.6t/hr |
| necessary cooling capacity | 65kw | 75kw | 100kw | 125kw | 150kw | 175kw | 200kw | 225kw | 250kw | 300kw | 350kw | 400kw | 450kw | 500kw | 600kw | 700kw | 900kw |
| install power | 75kw | 81kw | 88.9kw | 115.8kw | 145.8kw | 136.4kw | 174.2kw | 209.4kw | 222.1kw | 222.1kw | 256.9kw | 334.5kw | 388.8kw | 440.1kw | 440.1kw | 509.7kw | 771.7kw |
| running powr | 59.8kw | 65.8kw | 76.6kw | 95.5kw | 110.5kw | 128.5kw | 147.4kw | 175.8kw | 194.2kw | 217.4kw | 241.8kw | 281.3kw | 322.4kw | 382.2kw | 428.7kw | 477.5kw | 636.9kw |
| water consume | 210L/hr | 226.9L/hr | 277.3L/hr | 347.3L/hr | 395.1L/hr | 480.7L/hr | 528.5L/hr | 601.5L/hr | 666.1L/hr | 776.7L/hr | 882.1L/hr | 1021L/hr | 1123L/hr | 1333L/hr | 1554L/hr | 1765L/hr | 2248L/hr |
| container | 20' | 20' | 20' | 40' | 40' | 40' | 40' | 40' | 40' | 40' | 40' | 2*40' | 40' | 2*40' | 2*40' | 2*40' | 2*40' |
2,Containerized Ice Storage Bin(from 18ton/day to 200ton/day);
| MODEL |
ICE CAPACITY(Tons) |
TYPE |
LENGTH (mm) |
WIDTH |
HEIGHT |
WEIGH |
| AIS18 | 18 | Container ized | 12192 | 2438 | 2591 | 3.6 |
| AIS23 | 23 | Container ized | 12192 | 2438 | 2896 | 4.5 |
| AIS40H | 40 | Container ized | 12192 | 2438 | 5515 | 12 |
| AIS40 | 40 | Combined type | 12192 | 3530 | 3520 | 15 |
| AIS50 | 50 | Combined type | 12192 | 4130 | 3520 | 15.5 |
| AIS50H | 50 | Combined type | 12192 | 3560 | 4000 | 15.5 |
| AIS60 | 60 | Combined type | 12192 | 4130 | 4000 | 16 |
| AIS75 | 75 | Combined type | 12192 | 5191 | 4000 | 18 |
| AIS90 | 90 | Combined type | 15000 | 5191 | 4000 | 22.5 |
| AIS100 | 100 | Combined type | 15000 | 5191 | 4312 | 23 |
| AIS150 | 150 | Combined type | 15000 | 5191 | 5872 | 30 |
| AIS200 | 200 | Combined type | 15000 | 5191 | 7432 | 40 |

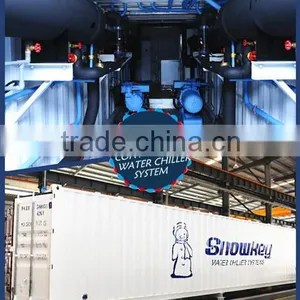

3,Containerized Water Chiller System(from 18ton/day to 200ton/day);
| MODEL | ICW36 | ICW60 | ICW72 | ICW96 | ICW120 | ICW156 | ICW180 | ICW240 | ICW312 | ICW360 | ICW480 | ICW576 |
| cold water capacity(Tons/day) | 36 | 60 | 72 | 96 | 120 | 156 | 180 | 240 | 312 | 360 | 480 | 576 |
| necessary cooling capacity(kw) | 66.5 | 110.8 | 133 | 177.3 | 221.7 | 288.2 | 332.5 | 443.3 | 576.3 | 665 | 886.8 | 1064 |
| power consume(kw) | 18.9 | 27.3 | 37.8 | 46.4 | 53.9 | 76.1 | 82.2 | 111 | 154.8 | 157.9 | 214.3 | 271.1 |
| COP(kw/kw) | 3.8 | 4.3 | 3.7 | 4 | 4.3 | 4 | 4.2 | 4.2 | 3.9 | 4.4 | 4.4 | 4.1 |
| container size | 20' | 20' | 20' | 20' | 20' | 20' | 20' | 40' | 40' | 40' | 40' | 40' |
| (advise)water tank volume(m³) | 12 | 20 | 24 | 32 | 40 | 52 | 60 | 80 | 104 | 120 | 160 | 192 |
