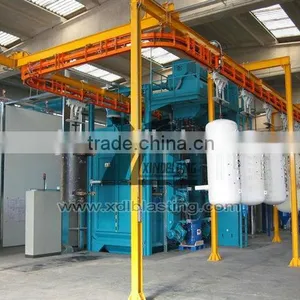

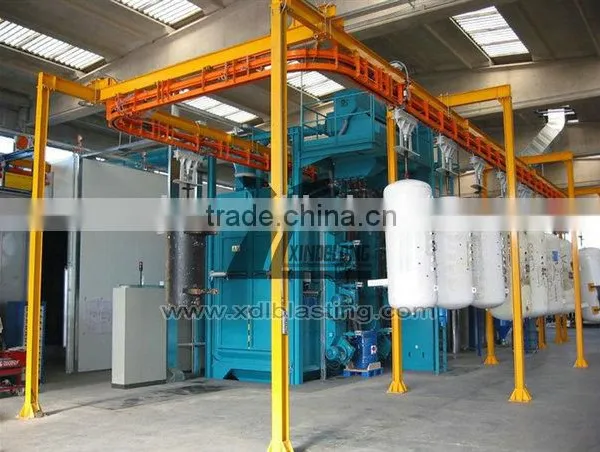

SXQ58 Series Piled And Released Type Shot Blasting Machine
SXQ58 series belongs to overhead conveyor shot blasting machine and it is mainly used for batch cleaning of small and medium castings, forgings, alloys, etc. They can eliminate sticky gravel and scale and other impurities on it,obtaining bright surface with certain rough degree,and improve decoration quality.
Model |
Unit |
SXQ583 |
SXQ585 |
SXQ588 |
SXQ5810 |
Blasting Job Size |
mm |
800×1200 |
800×1500 |
550×2200 |
1300×2800 |
Working Position Qty |
|
2 |
3 |
2 |
3 |
Blasting Turbine |
sets |
4 |
6 |
4 |
6 |
Blasting Volume |
kg/min |
150×4 |
150×6 |
320×4 |
320×6 |
Blasting Turbine Power |
kw |
15×4 |
15×6 |
22×4 |
22×6 |
Hook Loading Capacity |
kg |
300 |
500 |
800 |
1000 |
Productivity |
Hook/hr |
40 |
55 |
40 |
50 |
Blasting Chamber Size |
mm |
3062 x1800 x2800 |
8500 x1800 x 3885 |
6800 x2600 x 3325 |
8500 x2300 x 4800 |
Air Volume |
m3/hr |
15000 |
18000 |
18000 |
1800 |
|
Total Power (Excluding Dust Removing) |
kw |
90 |
200 |
137 |
200 |
