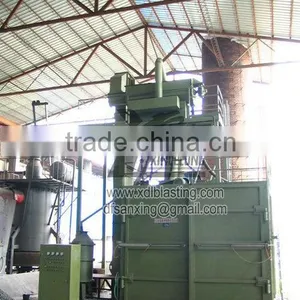

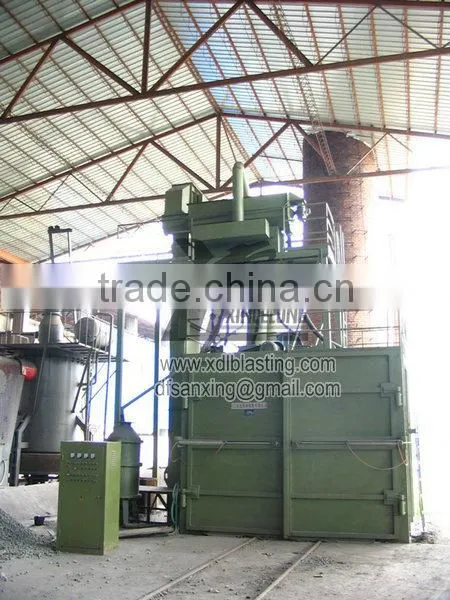

SXQ3620 Trolley Type Shot Blasting Machine
This series is trolley type shot blasting equipment. Shot blasting makes bundle high-speed shots throw to surface of the workpiece on the roll trolley so as to eliminate sticky gravel and scale and other impurities on it, obtaining bright surface with certain rough degree. Shot peening is mainly used for single air blasting disposal to complex inner piece after shot blasting, they could be mainly applied to large and medium-sized workpieces such as machine tool, metallurgy, motorcycle, construction machinery and equipment, re-mining machinery,and so on.
Model |
SXQ365 |
SXQ3610 |
SXQ3620 |
Size of blasting jobs |
Φ2500×1300mm |
Φ2500×1300mm |
Φ2600×1300mm |
Trolley Loading |
5000kg |
10000kg |
20000kg |
Trolley Table Size |
Φ2000mm |
Φ2000mm |
Φ2000mm |
Steel Shots Size |
Φ1.5~2.5mm |
Φ1.5~2.5mm |
Φ1.5~2.5mm |
Blasting Turbine Capacity |
300kg/min×2 |
300kg/min×2 |
300kg/min×3 |
Blasting Turbine Power |
22kw×2 |
22kw×2 |
22kw×3 |
Air Volume |
13200cbm/h |
13200cbm/h |
26400cbm/h |
Total Power |
53.2kw |
53.2kw |
75.2kw |
Size of machine |
9000×4200×8850mm |
9000×4200×8850mm |
9400×4600×9290mm |
