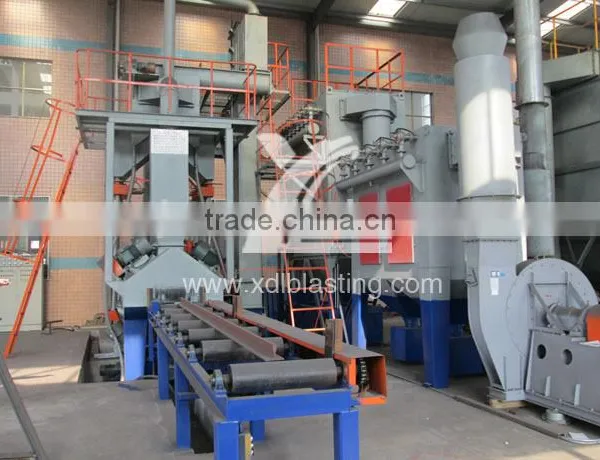

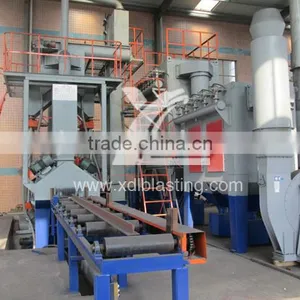

SXKK5020-6 Guide Rail Shot Blasting Machine
For Cleaning Guide Rail & Rail
This machine is mainly used for cleaning the surface of guide rails. By shot blasting, rust and oxide coat will be removed away and you will get a qualified surface of Sa2.5 and certain roughness. This will intensify the steel, improve the antifatigue capacity, add the adhesion of paint film and finally improve the inner and outer quality of steel.
The work pieces delivered by rollers into shot blasting chamber will accept hit and cut by steel shot accelerated by blasting turbines. After shot blasting, the rust and oxide coat will be cleaned off. Then the work pieces will be sent out of chamber.
Processing flow: load on in-feed rollers→ delivery-in→ shot blasting→ delivery-out→ unloading.
Blasting Chamber Open Size |
500×200mm |
Working Speed |
0.5~25m/min |
Blasting Turbine | |
Model |
Q035 |
Quantity |
4 sets |
Shot blasting capacity |
290 kg/min ×4 |
Power |
18.5kw × 4 |
Model |
Q035 |
Quantity |
2 sets |
Shot blasting capacity |
330 kg/min ×2 |
Power |
22kw × 2 |
Dust Removing System | |
Model |
BD-48 |
Fiber Bag filter |
Φ190× 2000mm |
Fiber Bag filter Quantity |
48 pcs |
Dust Cleaning Type |
Pulse Jet |
Dust Emission Density |
≤150mg/m3 |
Air Volume |
22,000 m3/hr |
Model |
LT-15 |
Cartridge Filter |
Φ325 × 1100mm |
Cartridge Filter Quantity |
15 pcs |
Dust Cleaning Type |
Pulse Jet |
Dust Emission Density |
≤50 mg/m3 |
Air Volume |
22,000 m3/hr |
Centrifugal Air Fan |
30 kw |
Quantity |
1 Set |
