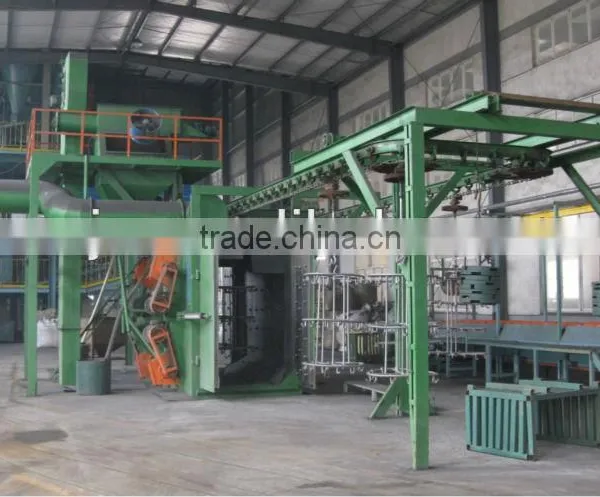

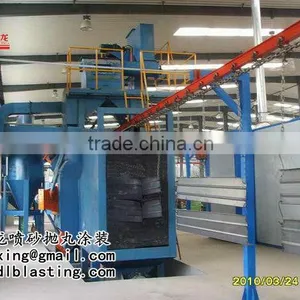

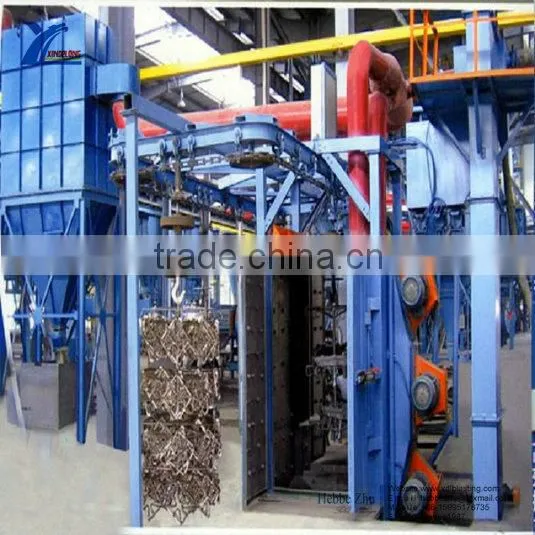

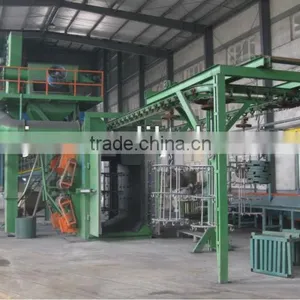

SXQ386-8 Overhead Conveyor Suspended Chain Type Shot Blasting Machine
- For Cleaning Transformer Welding Parts, Castings & Welding Parts
SXQ386-8 Overhead Conveyor Suspended Chain Type Shot Blasting Machine is used to clean or intensify the surface of casting, rivet parts or steel structures especially for thin jobs which fear the collision. It is widely used in the industry of foundry, welding steel structure and so on.
Characters of this machine:
- Compact structure, good cleanness, safe working and stable running.
- The hooks under suspended chain will take the workpieces to move continuously, It can reach non-stop production, high productivity.
Size of Blasting Jobs |
Max Size |
1,300×1,800×3,700mm |
Max Weight |
300KG |
|
Blasting Chamber |
Entry & Exit Open Size |
1,500×2,000mm |
Length of Blasting Chamber |
8,000mm |
|
The main blasting chamber will be protected by Mn13 Wearing Resistance Plate Liner | ||
Working Speed |
0.5~2.5m/min (Variable speed by Inverter) |
|
Steel Shots |
Model |
S390/S330 |
Initial Input |
4000~6000 kg |
|
Provided by the client | ||
Entry & Exit Door |
Equipped With Rubber enforced sheet |
|
|
Blasting Turbine - Direct Coupling |
Model |
SXQ034 |
Quantity |
8 sets |
|
Rotating speed |
2930 rmp |
|
Shot blasting capacity |
120 kg/min ×8 |
|
Power |
7.5kw ×8 |
|
|
Overhead Conveyor Suspended Chain (Variable Speed) |
Model |
XT100 |
|
Lifting capacity for single point |
250kg (allowed) |
|
|
Lifting capacity for double points |
500kgs(allowed) |
|
Ultimate limited lifting capacity for single point |
500kgs (ultimate limited) |
|
Chain pitch |
160mm |
|
Rails |
12# I beam |
|
Length of Conveyor |
About 35m |
|
Driving device |
1 set |
|
Tension Device |
1 set |
|
Automatic oiling Machine |
1 Set |
|
Lifting Tools quantity |
Several |
|
Power |
3 kw |
|
|
Portrait Screw Conveyor - With checking device |
Delivery capacity |
60 t/h |
Power |
4kw×1 |
|
Quantity |
1 set |
|
|
Transverse Screw Conveyor - With checking device |
Delivery capacity |
60 t/h |
Power |
3kw×1 |
|
Quantity |
1 set |
|
|
Bucket Elevator - With checking device |
Lifting capacity |
60 t/h |
Power |
5.5 kw |
|
Quantity |
1 set |
|
|
Shots-Dust Separator Air Wash Type - With checking device |
Separating capacity |
60 t/h |
|
Air speed in separating area |
4~5 m/s |
|
Power |
3kw |
|
Quantity |
1 set |
|
|
Pneumatic Shots Supply Valve |
Compressed Air Pressure |
0.4~0.6 Mpa |
Quantity |
8 pcs |
|
Cyclone Dust Collector |
Diameter |
Φ1000mm |
Qty |
1 Set |
|
|
Pulse Jet Type Dust Collector |
Model |
SXLT-18 |
Cartridge Filter |
Φ325 × 1100mm |
|
Cartridge Filter Quantity |
18 pcs |
|
Dust Cleaning Type |
Pulse Jet |
|
Dust Emission from exhausted air |
≤80 mg/m3 |
|
Air Volume |
25,000 m3/hr |
|
Centrifugal Air Fan |
22 kw |
|
Quantity |
1 Set |
|
Electrical Control System |
Voltage/Frequency |
380V/50Hz |
Operation Type |
Manual + PLC control |
|
Equipped with China Famous Brand Elements Such as CHINT |
PLC, breaker, contactor, time relay, thermal relay, button, switch etc. |
|
Total Power |
About 101 kw |
|
Overall Size of Machine |
Refer to drawing (Please provide crane bottom height at workshop where shot blasting machine will be installed) |
|
Accessories |
Free Spare Parts |
Blade 8 sets |
Disport Ball wheel 8pcs | ||
Directional Sheath 8pcs | ||
Installation Instruction Book 1pc | ||
Operation & Maintenance Book 1pc | ||
Electrical Diagram 1pc | ||
Blasting Turbine Instruction 1pc | ||
SHOT BLASTING MACHINE, BLASTING ROOM, PAINTING SPRAY ROOM, INDUSTRIAL DEHUMIDIFIER, VACUUM RECOVERY MACHINE ARE THE MAIN PRODUCTS IN DAFENG SANXING MACHINERY MANUFACTURING CO., LTD. OUR COMPANY PROVIDES SERVICE OF DESIGN AND MANUFACTUE SHOT BLASTING MACHINE, BLASTING ROOM AND PAINTING SPRAY ROOM, INDUSTRIAL DEHUMIDIFIER, VACUUM RECOVERY MACHINE ACCORDING TO OUR CLIENT'S REQUIREMENTS. WE ALSO PROVIDES INSALLATION & COMMISSION SERVICE FOR CUSTOMERS.
Shot blasting machine, Blasting Room, Painting Spray Room Expert - Dafeng City Sanxing Machinery Manufacturing Co., Ltd. was founded in 2002 by a highly experienced and academically qualified engineer. We are located in the large industrial cluster of shot blasting machines in China. After several years' development, we have become one of the largest providers of shot blasting machine, blasting room and paint spray room in China. Since the foundation, we have led the industry in China. For high quality, well design and competitive price, we establish distinguished relationships with our customers and enjoy a good reputation at home and abroad. At Sanxing, we understand that if we would not keep innovating and offer collective service of shot blasting, sand blasting and paint spray service to our customers, we would fail in the market. That is why we succeed in China and will succeed in overseas market. We warmly welcome all customers from all over the world to come to visit us and have successful cooperation.
If you are interested in shot blasting machine, please answer me following questions.
- What's the name of products do you need to do blasting?
- What's the max size of products and max weight?
- What's the productivity you need?
- What's the electrical power in your country such as voltage and frequency?
- Do you have special requirements?
- For more information concerned, please contact me directly. I will answer you asap professionally.
Guarantee and After Service
- One Year for shot blasting machine after acceptance from the clients.
- 24 hours technical support by email
- Calling or door to door service
- Company: Dafeng City Sanxing Machinery Manufacturing Co., Ltd
- Add: Dalong Industrial Park, Xituan Town, Dafeng City, Jiangsu Province, China
- Contact: Carl Chen
- Skype: surfacefinishing
- Whatsapp/Line: +86-139 1469 8671
