Help CenterXDL-1805-A1 Honeycomb Floor Type Blasting Booth for Heavy Truck Manufacturing
Related Products
-
Sandblasting Room for Heavy Duty MachineUS$ 200,000 - 400,000MOQ: 1 Set -
Blasting & Painting Booths for Ship Body Section CleaningNegotiableMOQ: 1 Set
-
2015 Newest Air Recovery Type Honeycomb Floor Sand Blasting Booth Made by XDL BLASTINGNegotiableMOQ: 1 Set
-
Blasting & Painting Rooms for ShipbuildingNegotiableMOQ: 1 Set
-
Honeycomb Floor Sand Blasting Room From XDL BLASTINGNegotiableMOQ: 1 Set
Specifications
1) Auo Pneumatic Abrasive Recovery System2) Small Pit Design
3) Easy Operation & Maintenance
4) Long Life Service
XDL-1805-A1 Honeycomb Floor Type Auto Blasting Booth
Special For Cleaning Heavy Truck Structure
1. Equipment Description
|

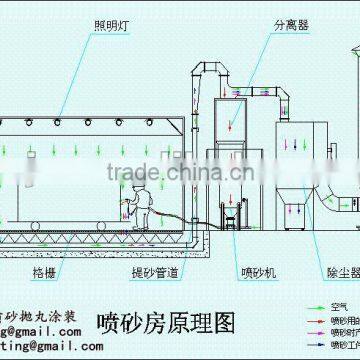

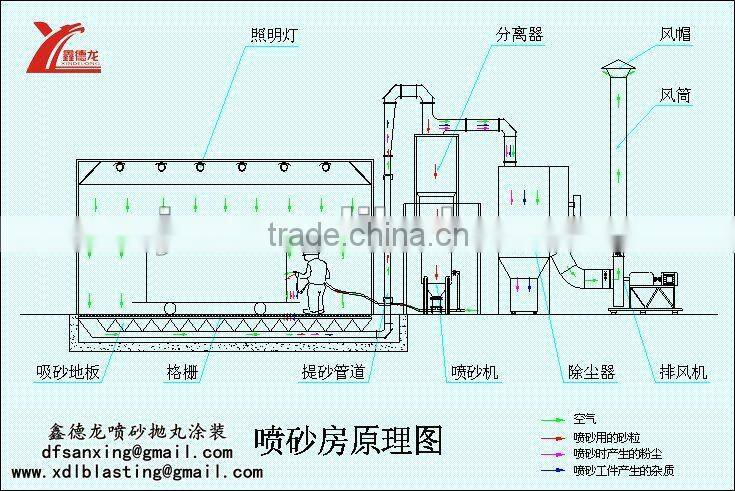

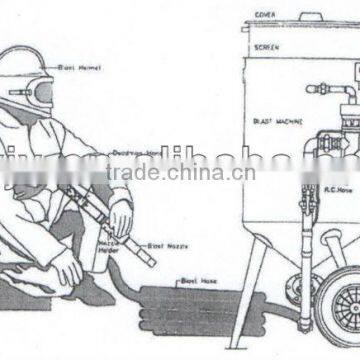

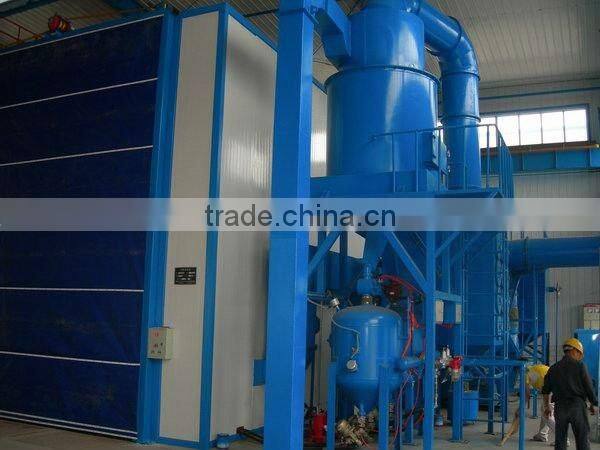

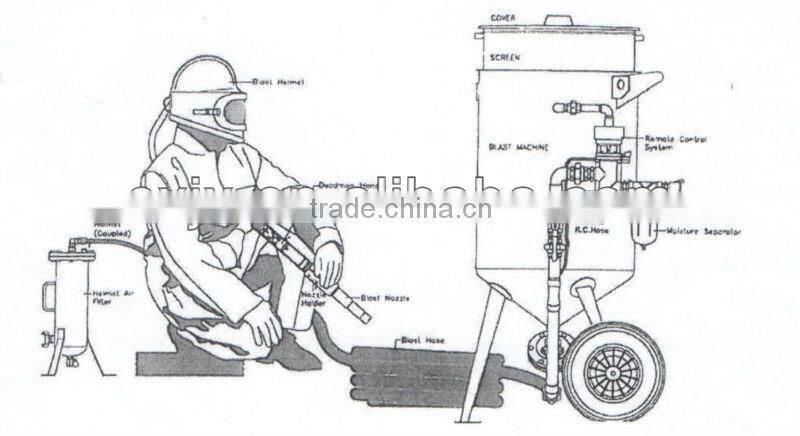

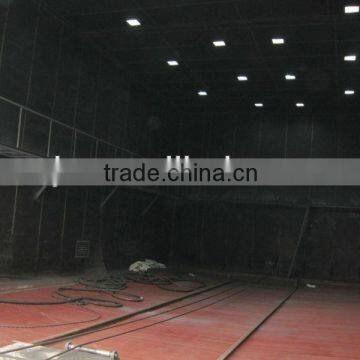

This blasting booth adopts honeycomb floor to recovery abrasives. It uses high pressure air as power to reclaim abrasive from blasting booth, then delivery abrasives into separating system through pipes. All separating, abrasive recycle and delivery adopt pneumatic delivery. it doesn't need to use bucket elevator, air wash type separator etc.. A complete air recovery blasting room is made of blasting working booth, shot blasting system, honeycomb floor, recovery separating system, dust removing system, electrical control system, protective wearing for workers, trolley system and so on.
Performance: 1) It adopts large power air fan to provide air power for blasting booth. The air power will reclaim the mixture of abrasives and dust through honeycomb floor. Because the air flow goes topdown, the dust will be descent down to the floor. Thus it can provide good working conditions and visibility for workers. 2) It doesn't need dig pitch or dig shallow pitch and can reduce construction task, thus it can reduce invest amount. The frame of blasting room adopts steel structure; the outer of room adopts color steel plates; the sandwich adopts special quieter materials. It can reduce noise and control the noise level under 80db(A). 3) The compressed air pressure is 0.8Mpa; the de-rusting grade is Sa2.5~3; the dust emission density is ≤80mg/m3; the illuminance is ≥300Lx. 4) It adopts large volume sand/grit blasting machine, auto abrasive input system and can improve the efficiency by 40%~45%. 5) The blasting nozzle quantity is determined by the blasting area per hour provided by customers. 6) It adopts advanced pulse jet cartridge filter dust collector and has the advantages of high efficiency of dust removing, long life service and dust emission density less than 80mg/m3. 7) It adopts complete sets of blasting protective wearing. |
2. Technical Parameters
|
Electrical Power Voltage/Frequency |
Motor |
380V/50Hz |
Control |
220V/50Hz |
|
Size of Blasting Jobs |
Max Size |
15,000×2,000 ×3,000 mm |
Max Weight |
2~3 tons |
|
Blasting Booth |
Door Open Size |
5,000×4,500mm |
|
Booth Size L × W × H |
18,000×5,000 ×4,500mm |
|
Blasting Productivity |
Working Time / Day |
8 hr.s |
Blasting Gun/ Φ10mm |
2 units |
|
Blasting Area per day |
15~35m2/hr×2×8hr.s =240~560m2 |
|
|
Surface Quality After Blasting |
Grade |
Sa 2.5 |
Roughness |
50µm~75µm |
|
Steel Shots/Grits |
Size |
1.0mm~1.2mm |
Initial Input |
4,000~5,000 kg |
|
Provided by the client | ||
Abrasive Recycle Type |
Auto Honeycomb floor Shots Recovery System |
|
|
Dust Removing System I for Blasting Booth |
Air volume |
26000~32000m3/hr |
Power |
30kw |
|
Pulse Jet Dust Collector |
LT4-48 |
|
Dust Emission Density |
80mg/m3 |
|
|
Dust Removing System I for Shot Recycle System |
Air volume |
17322~19717m3/hr |
Power |
45kw |
|
Pulse Jet Dust Collector |
LT4-32 |
|
Dust Emission Density |
80mg/m3 |
|
Noise Level |
≤90dB |
|
Illuminance |
≥300Lux |
|
If the clients need more information about blasting booth, please see as follows
No. |
Model |
Size of room |
Size of jobs |
Blasting Nozzle quantity |
1 |
XDL-0606-A1 |
6000×6000 ×5000mm |
3000×3000 ×2500mm |
2 |
2 |
XDL-0606-A2 |
6000×6000 ×6000mm |
3000×3000 ×3500mm |
2 |
3 |
XDL-0806-A1 |
8000×6000 ×5000mm |
5000×3000 ×2500mm |
2 |
4 |
XDL-0806-A2 |
8000×6000 ×6000mm |
5000×3000 ×3500mm |
2 |
5 |
XDL-1006-A2 |
10000×6000 ×6000mm |
7000×3000 ×3500mm |
2 |
6 |
XDL-1506-A2 |
15000×6000 ×6000mm |
12000×3000 ×3500mm |
2 |
7 |
XDL-1508-A2 |
15000×8000 ×6000mm |
12000×5000 ×3500mm |
2 |
8 |
XDL-1808-A2 |
18000×8000 ×6000mm |
15000×5000 ×3500mm |
4 |
9 |
XDL-1806-A3 |
18000×10000 ×8000mm |
15000×7000 ×5500mm |
4 |
