Specifications
mango juice filling and sealing machine1.Total 4 nozzles.
2.PLC english touch control
3. High speed

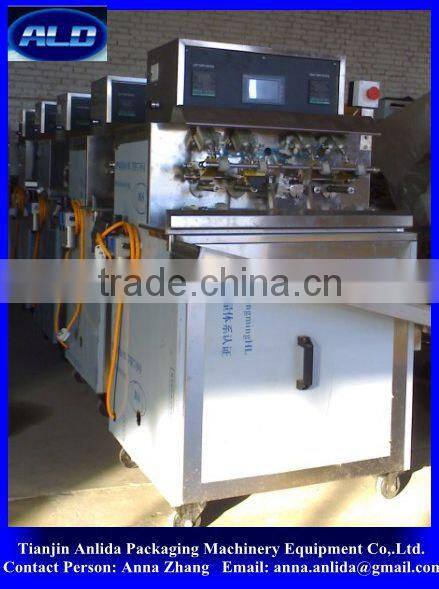

premade pouch mango juice filling and sealing machine
Application
- YBJ-500-4D used for packing various kinds of bags: fruit shape bag, bottle shape bag, spout bag, straw bag etc,Also can filling stand up pouch without spout or with spout
- This machine can pack any liquid such as juice, yogurt, water, jelly, soymilk, cooking oil, liquid soap etc. also used for semi-fluid liquid, for example, tomato sauce, jam and so on.
- Stable for various viscous products with free-flowing, such as garlic paste, tomato sauce, lotion noodle jam, edible oil ,broth, honey, ect
Function and characteristics
Attention: this type: YBJ-500-4D is different from our YBJ-500-4A, it is 1 button controlled, 4 filling nozzles as 1 work group, press the only one button, 4 nozzles filling together .
- Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
- Automatic quantitive filling and control liquid level.
- Adjustment filling volume and all the things from PLC
- The whole machine adopts stainless steel material and international brand parts according to the food hygienic requirements, guarantee hygiene and security of the food.
- The machine adopts big capacity, high intensity, stably to operate, easy to maintain, long service life.
- We have 4 nozzles,8 nozzles, customers can choose what they want.
Main technical parameter
Model |
YBJ-500-4D (4 filling nozzles) |
Speed |
500~1000 bags/hour |
Power |
750w |
Voltage |
220V/ 50HZ-60HZ |
Air pressure |
0.6 MPa, 0.15 m3/min |
Packing volume |
50~ 1000ml/bag |
Accuracy |
±1% |
Dimension |
700x600x1250mm |
Net Weight |
80kg |

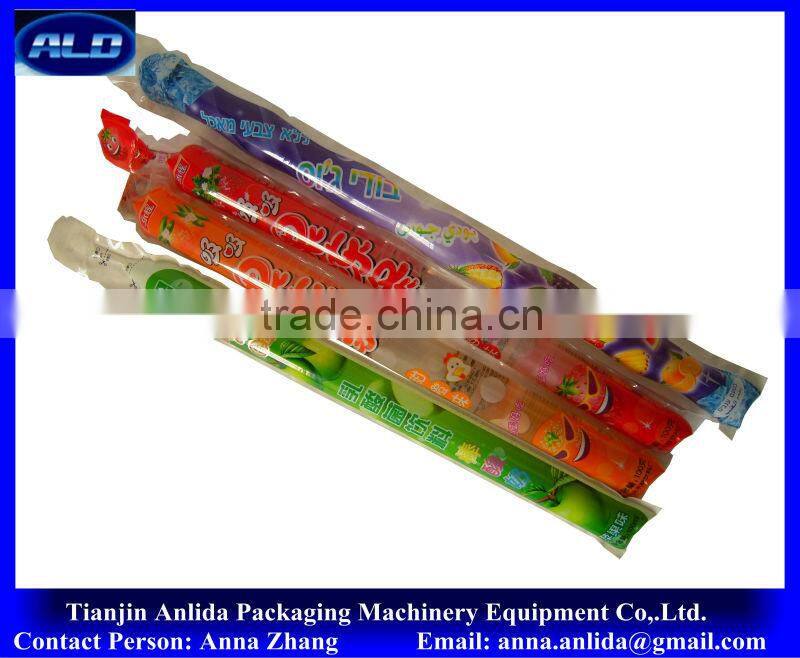

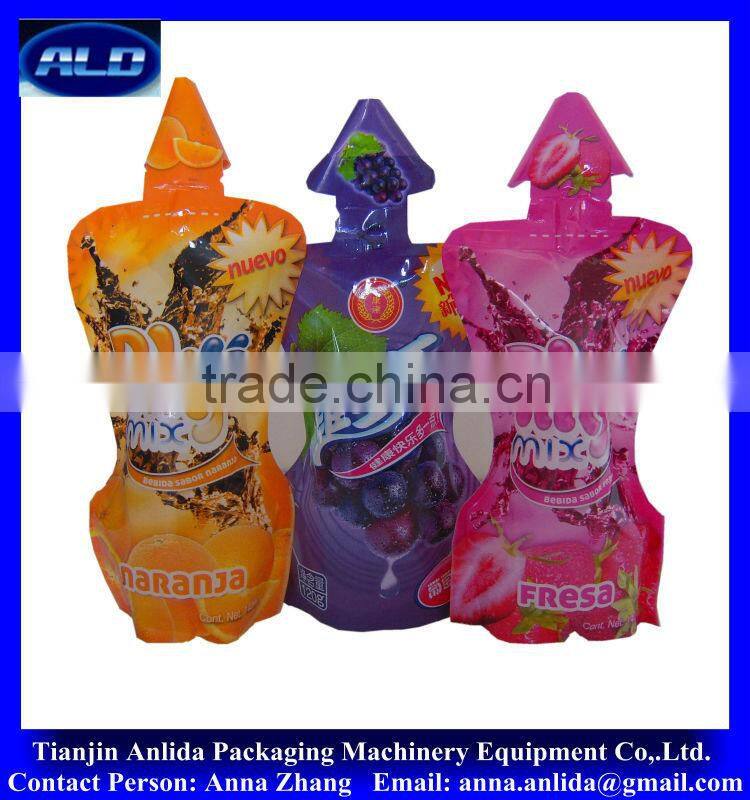

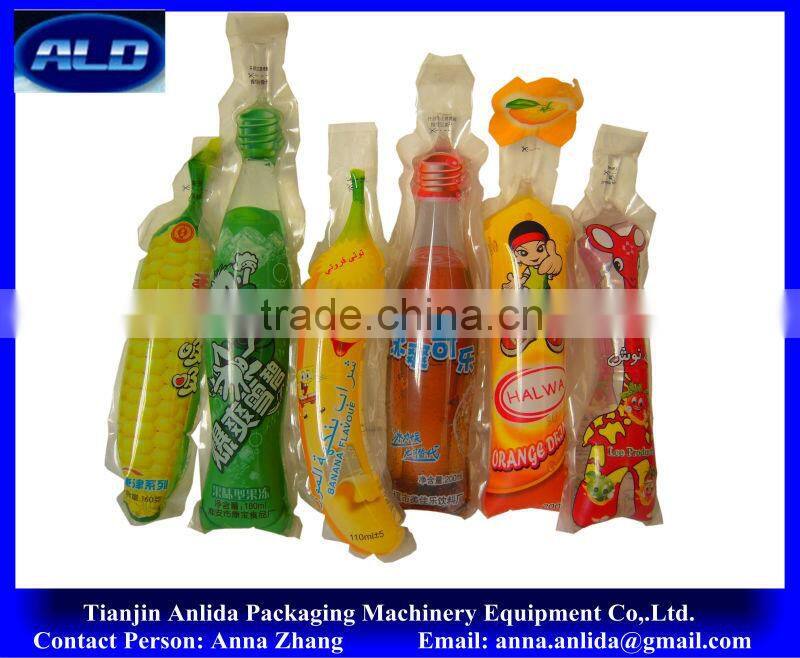

Production examples
Information about company
Customer Service
1. Pre-sale service: provide cost budget,plant layout.
2. In the sales: We appoint technican to install and adjust machine, also train the operator to know well about operation, fixing and maintaining of the machine. Or you can appoint operator to study in our factory.
3. After sales: the machine warranty is 1 year, our aftersale team will respond your questions and solve the problems by call or on-the-spot service depends on situations.
