Fully automatic digital displayed, Transformer Ratio analyzer ,Micro-controller operated,Front panel with legend
Introduction:
Ratio testers using ‘current balancing bridge’ circuits are now out dated. model Ratio tester is a new, fully automatic tester that measures transformation ratio of single phase and three phase transformers using modern electronic techniques and does not require any manual ‘null’ balancing. Ratio testers is micro controller operated user friendly, accurate, small, light weight and reliable tester. Ratio testers incorporates a large LCD screen for display of menu and results. The results can be printed on built-in printer after the test is over. Ratio testers incorporates breakthrough technology and design that gives accurate and reliable results, again and again.
The advantages:
Fully automatic: no manual balancing required
Test single phase and three phase transformers
Automatic measure transformer connection group
Automatic process transformation of group
Automatic calculation of ratio error
Isolates test voltage automatically after test
Test results saved automatically
Recall and print last 30 test results
Prints results on built-in printer
Features:
Micro-controller operated
Front panel with legend
Built-in printer
Can re call stored last 30 tests results.
Weight: 10 kg
Safety Features
Automatic cutoff after test
-
When data exceeds 30, the last is saved as 30th
And the 1st one is deleted.
Fuse protection for line short circuit
-
Fuse protection and reset protection for reverse connection of HV and LV winding
Description:
-
Ratio testers is a new generation, fully automatic, transformer turns ratio tester designed for measuring ratio, ratio error of single and three phase transformers.
The entire test is done automatically and quickly. Operator enters the test parameters and HYG-II takes over; powers up the voltage, balances the bridge, takes the readings, and displays the results on the LCD screen.
Prints test results through its built-in printer.
A key feature of the Ratio tester is automatic measure transformer connection group.
LV and HV windings are automatically isolated once the measurement is over.
True portability is achieved by the lightweight (only 10 kg), single unit design housing the tester. Ratio testers is encased in an aluminum alloy cabinet.
SPECIFICATIONS:
-
Power supply: 220V±10%, AC 50 Hz.
Measurement ratio: 1:1000
Display: LCD
Accuracy: 0.2 class
Test voltage: H.V.: 190V AC
L.V.: 0.19-190v AC (vary with ratio)
Usage environment: ≤ 40º C.
< 85% R.H.
Accessories: Mains cord.
Connection leads terminated with alligator clips, 8 meters long: 2 numbers.
Operating Manual
Calibration certificate
Dimensions:480*400*300mm
Package:Wooden case
Weight:15 kg.
Weight of Package: 30 kg.
Picture Show:
Exquisite designed, good performance, high quality, new advanced technology adopted, low price!!!
Ratio testers using ‘current balancing bridge’ circuits are now out dated. model Ratio tester is a new, fully automatic tester that measures transformation ratio of single phase and three phase transformers using modern electronic techniques and does not require any manual ‘null’ balancing. Ratio testers is micro controller operated user friendly, accurate, small, light weight and reliable tester. Ratio testers incorporates a large LCD screen for display of menu and results. The results can be printed on built-in printer after the test is over. Ratio testers incorporates breakthrough technology and design that gives accurate and reliable results, again and again.
Other Testing Equipment:
oil water content tester
Transformer oil breakdown voltage tester ( BDV test kit) series IIJ-II
Gas-chromatography transformer oil gas analyzer model DGA2013-1

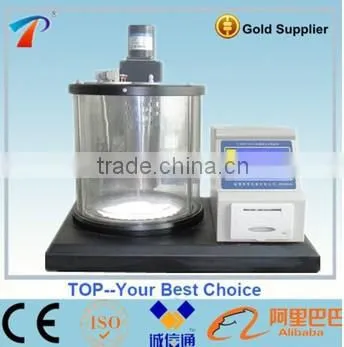

Kinematic viscosity tester model VST-2000

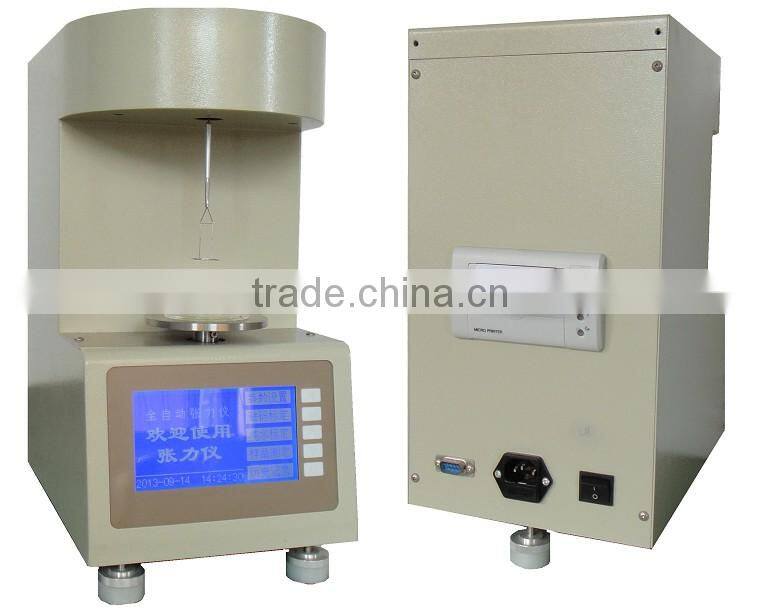

Fully automatic interfacial tension analyzer model IT-800
Transformer tester (CT/PT tester) model TPVA-404
CE& ISO Standard:
Fast delivery and logistic:
After -sales Service
1. Two years guarantee for product quality. ( except man-made damage).
2. Free training, installation and testing are available.
3. Lifelong maintenance Service
4. Spare parts supply
About Us:
Chongqing Top Oil Purifier Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We have tremendous strength in the fields of research, development and manufacturing with professional mass-production ability, perfect sales network, excellent after-sales service as well as a perfect image we earned in the competitive market.We specialized in oil purifier machine for more than 20 years. Exquisite designed,advanced technology,good performance,high quality, low price, fast delivery,good qualiy package makes our purifier machine very competitive in the market all over the world.
Our company takes the mission of existing on the basis of quality as well as developing in regard to technical innovation, introduces foreign advanced technology of vacuum oil purifying, moreover, continues researching and manufacturing the oil purifying equipments that available both in the domestic and international market.
Our goal is ‘Not Best, Only Better’. We try our best to satisfy every customer from all over the world.
Our Company Main Products:
1. Transformer Oil Purifier:
This kind of machine is used to purify used transformer oils by vacuum separation technology to remove water, gas, particles.
2. Lube Oil Purifier:
This machine is to filter used lube oils, such as hydraulic oil, gear oil and other lubricants.
It can effectively break emulsification and completely remove water, gas, particles.
3. Cooking oil recycling machine:
This machine is used to recycle waste cooking oil, dirty vegetable oil, drainage oil, swill oil and animal oil etc., it effectively and completely removes particles, odor, water, gas, etc. from waste oil. The treated oil is clean and good smell.
4. Transformer Oil BDV Tester:
This tester with automatic operation system is ued to online monitor transformer oil's dielectric strength.
5. Oil Water Content Testing Machine:
This device is designed to test water content in oil to make sure the oil is suitable for further use.
Application Field:
If you are interested in any our products, please don't hesitate contact with us and we'll try our best to serve you better.Our official website
How to contact us???
Miss Cola
Chongqing TOP Oil Purifier Co,.ltd.
Tel:+86-23-68677712
Fax:+86-23-88901306
Skype:topoilpurifier05
