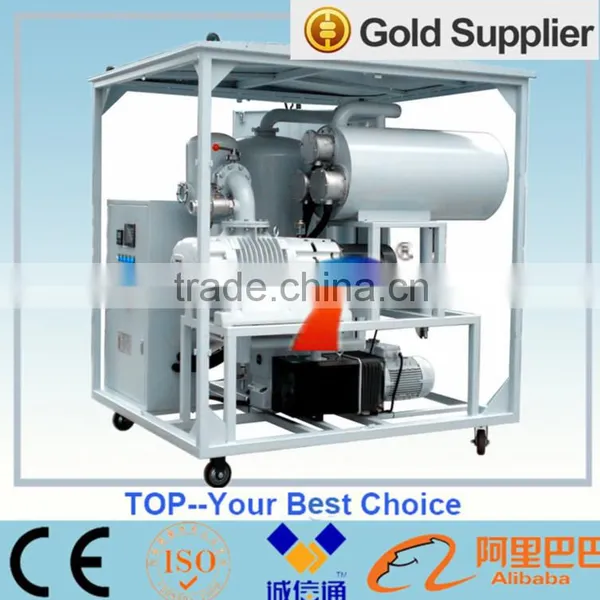

Series ZYD-30 Double-stage tHigh Vacuum transformer Oil Purifier, rapidly dewater,degas,roots pump equipped, high efficient work
1.Fast dewater, degass
2.less power consumption
3. Multi-stage precision filtration
4.water content ater treatment less than 3ppm
Application:
Series ZYD DoubleStage Vacuum Transformer Oil Purification Systems is used for transformer oil dehydration and transformer oil degasification as well as other electrical insulating liquids such as silicone fluids. The ZYD Process is able to increase and maintain the oil's dielectric strength and includes the removal of free and soluble water, free and dissolved air and gases and other particulate matter. The standard ZYD system is designed for processing oils in workshops, in storage tanks or directly in transformers (energized or deenergized transformers). Series ZYD oil purifier can be used as an independent vacuum source with functions of vacuum drying and vacuum oiling.
Feature:
1.ZYD can evacuate the vacuum for the electric equipment separately, such as the transformer. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.
2.This machine have two vacuum pumps (one is the vacuum pump, other one is the roots pump), which can improve the working value highly. Making sure the water content of the treated oil is less than 3 ppm.
3. The machine adopts the doubleinfrared liquid automatic controller, pressure automatic protector which can make sure the machine works online for 150 hours continuously without person. So it is a reliable and high automatically machine.
4. Besides the common vacuum oil purifier's function of dewatering, degassing, and removing the impurity, this machine can regenerate the seriously bad oil by separating the electricpolarity materials, such as deeply oxides and free carbon from the oil effectively. The treated oil can reach the specifications of the new oil, such as the oil dielectric strength, flash point, acid value and oxidation resisting etc.
5 Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
6.Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
7.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oiling.
Advantages:
Comparing with single stage transformer oil purifier, Series ZYD oil purifier can increase the effectiveness more than three times, more quickly and completely dewater, degas, remove particles to get higher dielectric strength. This equipment can be used as independent vacuum source with the functions of vacuum drying and vacuum oiling for the electric plants.
Flow Chart:
Technical Parameters:
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow Rate |
L/h |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
|
Working vacuum |
MPa |
-0.08 ~ -0.099 |
|||||||
Working Pressure |
MPa |
≤0.3 |
|||||||
Temperature Range |
℃ |
20 ~ 80 |
|||||||
Power |
|
Three Phase 50Hz,380V (or as needed) |
|||||||
Working Noise |
dB(A) |
70 |
70 |
70 |
75 |
75 |
75 |
75 |
|
Heating Power |
KW |
28 |
30 |
45 |
60 |
75 |
90 |
120 |
|
Total Power |
KW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
Weight |
Kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
Guarantee Value:
Item |
Unit |
After treatment |
Breakdown Voltage |
kV |
≥75 |
Moisture content |
PPM |
≤3 |
Gas content |
% |
≤0.1 |
Impurity size |
micron |
≤0.5 (no free carbon) |

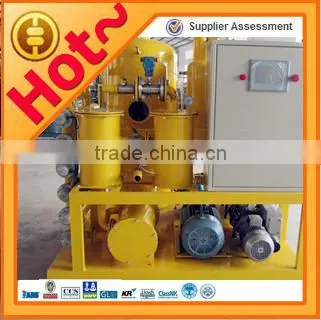

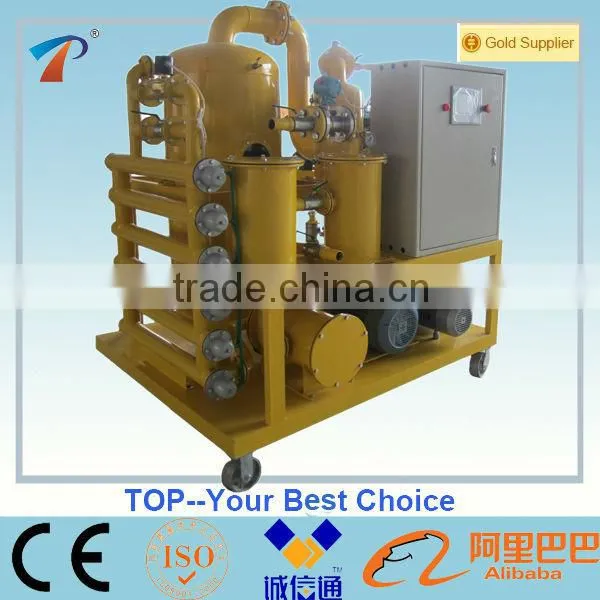

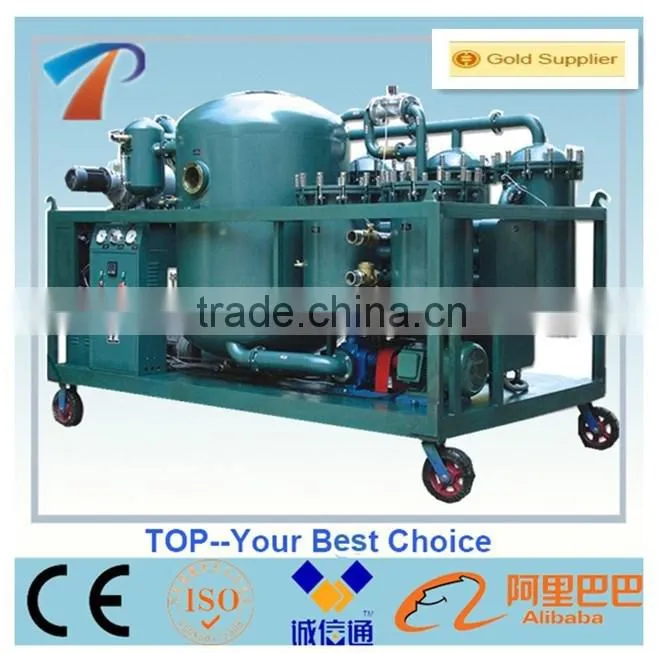

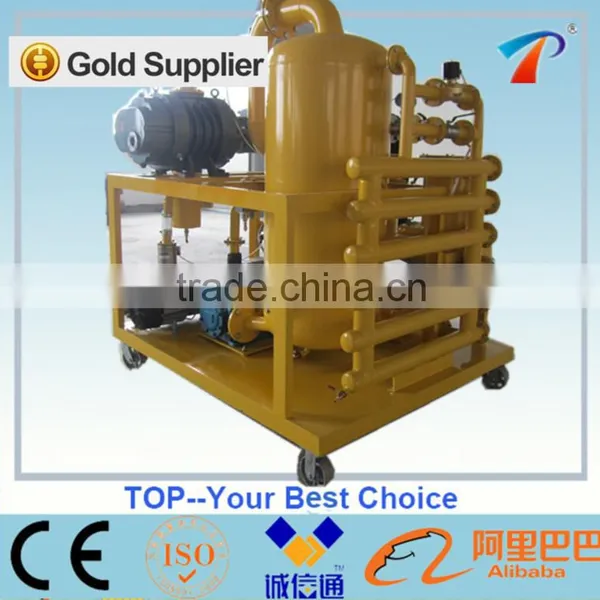

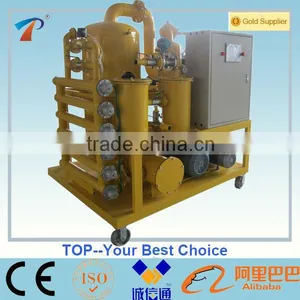

Picture Show:
Exquisite design, good performance, high quality, new and advanced technology adoptd, reasonable price!!!
Raw Material:

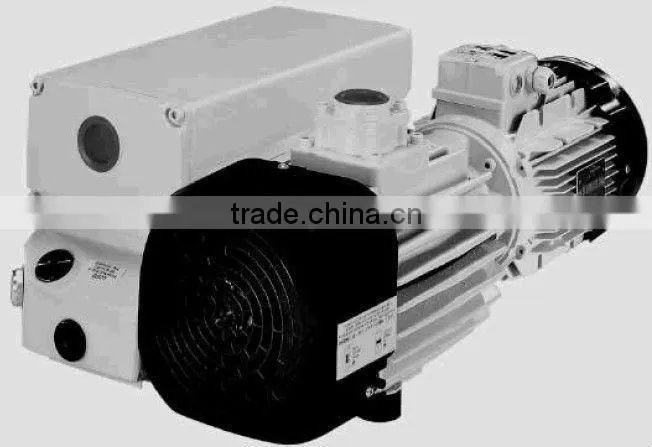

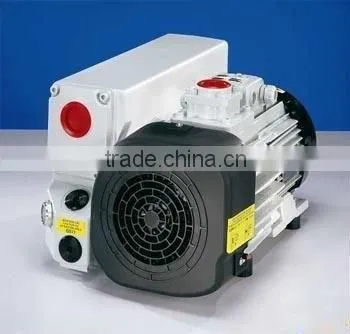

vacuum pump equipped

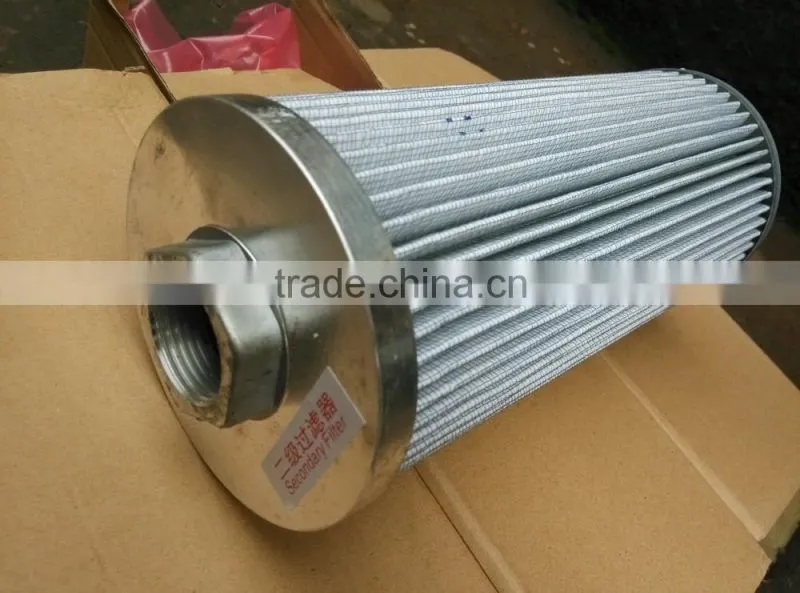

filter element with good quality

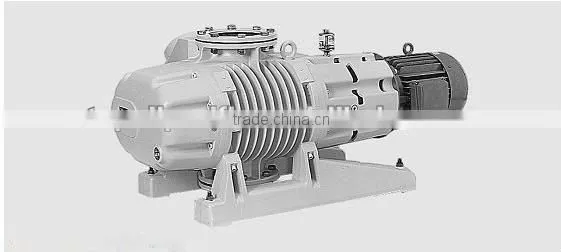

roots pump
Package:
After -sales Service
1. Two years guarantee for product quality. ( except man-made damage).
2. Free training, installation and testing are available.
3. Lifelong maintenance Service
4. Spare parts supply
Our Main Products:
1: Insulating oil purifier
1-1: Single stage vacuum insulation oil purifier
Series ZY: TOP vacuum insulation oil purifier
Series ZY-A: TOP PLC type automatic vacuum insulation oil purifier
Series ZYB: TOP vacuum insulation oil regeneration purifier
Series ZY-W: TOP weatherproof enclosed type vacuum insulation oil purifier
Series ZY-M: TOP Mobile trailer type vacuum insulation oil purifier
1-2: Double stage vacuum transformer oil purifier
Series ZYD: TOP Double-stage vacuum transformer oil purifier
Series ZYD-A: TOP PLC type double-stage vacuum transformer oil purifier
Series ZYD-I: TOP double-stage vacuum insulation oil regeneration purifier
Series ZYD-W: TOP Enclosed type double stage vacuum transformer oil purifier
Series ZYD-M: TOP Mobile trailer type online transformer oil purification plant
2: Turbine oil purifier
Series TY: TOP vacuum turbine oil purifier
Series TY-R: TOP vacuum turbine oil regeneration purifier
Series TY-A: TOP PLC type automatic vacuum turbine oil purifier
Series TY-W: TOP weather proof enclosed type vacuum turbine oil purifier
Series TY-M: TOP mobile trailer type vacuum turbine oil purifier
3: Lubricating oil purifier
Series TYA: TOP vacuum lubricating oil purifier
Series TYC: TOP vacuum lubricating oil regeneration purifier
Series TYA-A TOP PLC type automatic vacuum lubricant oil purifier
Series TYA-I: TOP vacuum phosphate ester fire-resistant oil purifier
Series TYA-W: TOP weatherproof enclosed type vacuum lubricant oil purifier
Series TYA-M: TOP mobile trailer type vacuum lubricant oil purifier
4: Special application oil purifier
Diesel oil, gasoline oil and fuel oil purifier Series TYB
Transformer oil regeneration device Series BZ
Muti-Functional oil purifying machine Series ZYB
PL Plate pressure high precise oil purifier
JL Portable oil purifying and oil filling machine
TYF Fully stainless steel type vacuum oil purifier
Series EOR Engine oil recycling distillation system
If you are interested in any our products, please don't hesitate contact with us and we'll try our best to serve you better.
