Specifications
100 years American TechnologyChina Excellent Manufacturing
Partner of Fortune top 500
Leading Brand inAmerican hose clamp

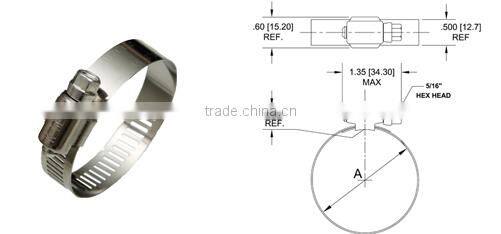

SAE J1508 Stainless Steel American Type Hose Clamp KF48SS
1)bandwidth: 12.7mm Thickness:0.6mm
2)diameter :65-89mm
3) Installation Torque : 4.0-5.1N.M, Ultimate torque 6.8 N.M
4)The hose clamp material different, its corrosion resistance is also different. Customers can choose a suitable hose clamps according to their practical application.
KF-SS” Series
All “300”Series Stainless Steel Construction
Band, housing and screw are 300 Series Stainless Steel. Screw is 5/16’’ slotted hex head.
The all-300 Series Stainless construction provides better corrosion resistance than that available from the “KH-SS” series, making this clamp well suited for marine applications.
Rated Ultimate Torque:
60in.lbs .min. (6.8Nm)
Recommended Installation Torque:
35-45in.lbs. (4.0 – 5.1Nm)
| K-Seal Size | Diameter Range | |||||||
| All Stainless Steel | All 201+carbon steel screw | AISI All 201ss | AISI All 301ss | AISI All 316ss | Decimals MIN. MAX. | Inches MIN. MAX. | Millimeters MIN. MAX | |
| KA6SS | KB6 | KB6SS | KF6SS | KL6SS | .44 .78 | 7/16 | 25/32 | 11-20 |
| KA8SS | KB8 | KB8SS | KF8SS | KL8SS | .44 .91 | 7/16 | 29/32 | 11-23 |
| KA10SS | KB10 | KB10SS | KF10SS | KL10SS | .56 1.06 | 9/16 | 1-1/16 | 14-27 |
| KA12SS | KB12 | KB12SS | KF12SS | KL12SS | .69 1.25 | 11/16 | 1-1/4 | 17-32 |
| KA16SS | KB16 | KB16SS | KF16SS | KL16SS | .75 1.50 | 3/4 | 1-1/2 | 19-38 |
| KA20SS | KB20 | KB20SS | KF20SS | KL20SS | .81 1.75 | 13/16 | 1-3/4 | 21-44 |
| KA24SS | KB24 | KB24SS | KF24SS | KL24SS | 1.06 2.00 | 1-1/16 | 2 | 27-51 |
| KA28SS | KB28 | KB28SS | KF28SS | KL28SS | 1.31 2.25 | 1-5/16 | 2-1/4 | 33-57 |
| KA32SS | KB32 | KB32SS | KF32SS | KL32SS | 1.56 2.50 | 1-9/16 | 2-1/2 | 40-64 |
| KA36SS | KB36 | KB36SS | KF36SS | KL36SS | 1.81 2.75 | 1-13/16 | 2-3/4 | 46-70 |
| KA40SS | KB40 | KB40SS | KF40SS | KL40SS | 2.06 3.00 | 2-1/16 | 3 | 52-76 |
| KA44SS | KB44 | KB44SS | KF44SS | KL44SS | 2.31 3.25 | 2-5/16 | 3-1/4 | 59-83 |
| KA48SS | KB48 | KB48SS | KF48SS | KL48SS | 2.56 3.50 | 2-9/16 | 3-1/2 | 65-89 |
| KA52SS | KB52 | KB52SS | KF52SS | KL52SS | 2.81 3.75 | 2-13/16 | 3-3/4 | 71-95 |
| KA56SS | KB56 | KB56SS | KF56SS | KL56SS | 3.06 4.00 | 3-1/16 | 4 | 78-102 |
| KA60SS | KB60 | KB60SS | KF60SS | KL60SS | 3.31 4.25 | 3-5/16 | 4-1/4 | 84-108 |
| KA64SS | KB64 | KB64SS | KF64SS | KL64SS | 3.56 4.50 | 3-9/16 | 4-1/2 | 90-114 |
| KA72SS | KB72 | KB72SS | KF72SS | KL72SS | 4.06 5.00 | 4-1/16 | 5 | 103-127 |
| KA80SS | KB80 | KB80SS | KF80SS | KL80SS | 4.56 5.50 | 4-9/16 | 5-1/2 | 116-140 |
| KA88SS | KB88 | KB88SS | KF88SS | KL88SS | 5.06 6.00 | 5-1/16 | 6 | 129-152 |
| KA96SS | KB96 | KB96SS | KF96SS | KL96SS | 5.56 6.50 | 5-9/16 | 6-1/2 | 141-165 |
| KA104SS | KB104 | KB104SS | KF104SS | KL104SS | 6.06 7.00 | 6-1/16 | 7 | 154-178 |
| KA116SS | KB116 | KB116SS | KF116SS | KL116SS | 6.50 7.75 | 6-1/2 | 7-3/4 | 165-197 |
| KA128SS | KB128 | KB128SS | KF128SS | KL128SS | 5.69 8.50 | 5-11/16 | 8-1/2 | 144-216 |
| KA140SS | KB140 | KB140SS | KF140SS | KL140SS | 6.44 9.25 | 6-7/16 | 9-1/4 | 163-235 |
| KA152SS | KB152 | KB152SS | KF152SS | KL152SS | 7.19 10.00 | 7-3/16 | 10 | 182-254 |
| KA164SS | KB164 | KB164SS | KF164SS | KL164SS | 7.94 10.75 | 7-15/16 | 10-3/4 | 201-273 |
| KA176SS | KB176 | KB176SS | KF176SS | KL176SS | 8.69 11.50 | 8-11/16 | 11-1/2 | 225-292 |
| KA188SS | KB188 | KB188SS | KF188SS | KL188SS | 9.44 12.25 | 9-7/16 | 12-1/4 | 239-311 |
| KA200SS | KB200 | KB200SS | KF200SS | KL200SS | 10.19 13.00 | 10-3/16 | 13 | 259-330 |
| KA212SS | KB212 | KB212SS | KF212SS | KL212SS | 10.94 13.75 | 10-15/16 | 13-4/4 | 277-349 |
| KA224SS | KB224 | KB224SS | KF224SS | KL224SS | 11.69 14.50 | 11-11/16 | 14-1/2 | 296-368 |
| KA236SS | KB236 | KB236SS | KF236SS | KL236SS | 12.44 15.25 | 12-7/16 | 15-1/4 | 315-387 |
| KA248SS | KB248 | KB248SS | KF248SS | KL248SS | 13.19 16.00 | 13-3/16 | 16 | 335-406 |
Q And A :
1. Q: Does your hose clamps produce by your own company or import?
A: The clamps is home made by our own factory. King Seal is an American-owned manufacturer in China. The Equipment and Technology are from USA.
2. Q: Which is better material for SS200 and SS300? We need the best one.
A: Regarding corrosion resistance, SS 300 is better than SS200, The other performances are basically same. If you prefer better corrosion resistance, SS316 is the best choice.
3. Q: We do biotechnology business. The hose clamps application environment involves acid-base environment. Please advise whether we can use SS304?
A: SS304 has relatively high corrosion resistance, but if Acid-base environment is strongly high, SS316 clamp is the best choice.
4. Q: Is SS304 material magnetic?
A: SS304 itself has no magnetism, But it could generate certain magnetism during production process.
5. Q: Your stainless steel clamps looks good, do you electroplate them on the surface?
A: We run some polish process on the surface but it’s not electroplated.
