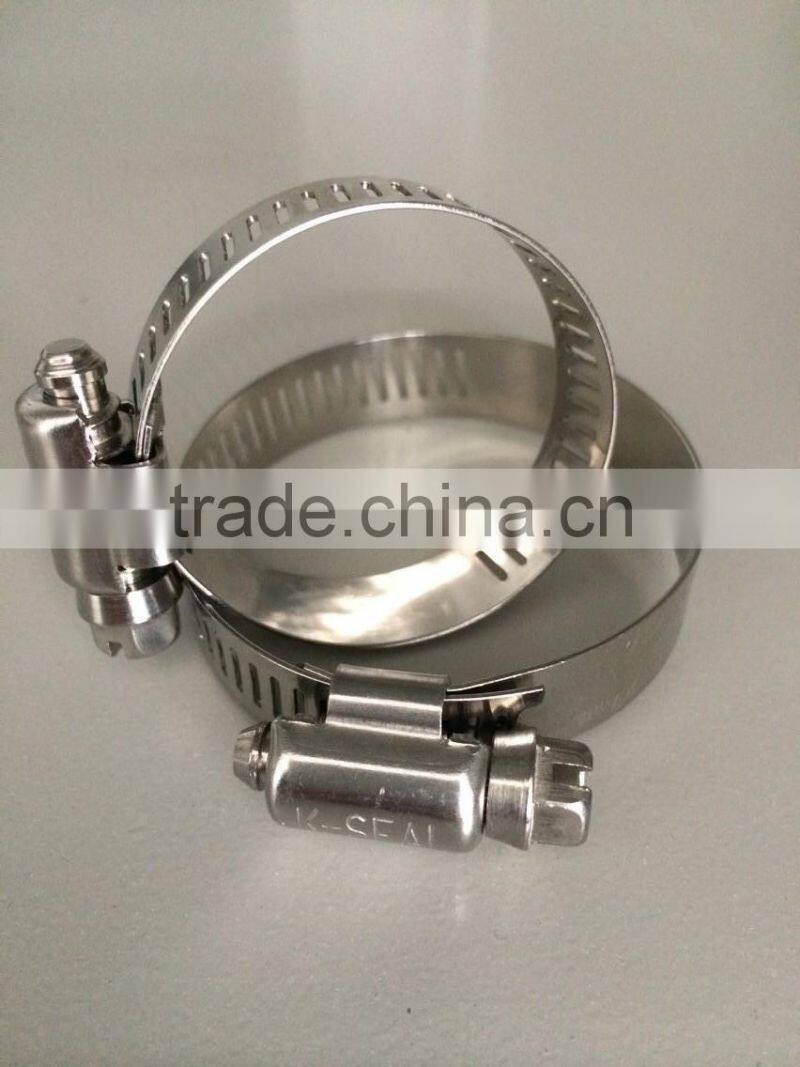

American Type Stainless Steel Agricultural Pipe Clip KB16SS
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | K-SEAL | |
| Model Number | KB16SS | Usage | Other, Hose clamp, Pipe clips | |
| Material | Other, Stainless Steel, All 201 stainless steel | Structure | F Clamp | |
| Standard or Nonstandard | Other, SAE J1508 |
Product Description
Products information:
Band width: 12.7mm
Thickness: 0.6mm
Screw: 5/16’’ slotted hex head
Meterial: All 201 SS
Rated Ultimate Torque:6.8Nm.
Recommended Installation Torque:4.0-5.1Nm.
Appearance: Polishing and washing treatment, burr and crack free, shiny and smooth.
Performance: meet or even exceed SAE J1508 standard.
Application: auto, household, plumbing, heavy duty, agricultural ect.
Why choose us:
1, American owned professional manufacturer of various hose clamps with rich experience.
2. The core technics and some production equipments are from America with precise molding and stamping.
3. Strict quality inspection throughly covered raw material, production, finish products,
various tests are conducted to guarantee STABLE superior quality.
4. Adopt same test data analysis system as global famous hose clamping manufactures.
5. Reliable and trusted supplier of American leading hose clamp brand for years.
6, Much more competitive price compared with other same quality products.
7. Professional and stable service team assure customers in time response and on time delivery.
About the material:
| KBxx | KBxxSS | KFxxSS | KLxxSS | |
| Band | AISI 200 SS | AISI 200 SS | AISI 300 SS | AISI 316 SS |
| Housing | AISI 200 SS | AISI 200 SS | AISI 300 SS | AISI 316 SS |
| Screw | Carbon Steel(Heat-treated,double-plated with zinc plus trivalent chromate.) | AISI 200 SS | AISI 300 SS | AISI 316 SS |
| Corrosion Resistance | Ordinary | Good | Better | Best |
| Rated Ultimate Torque | 50in.lbs. min.(5.6Nm) | 60in.lbs. min.(6.8Nm) | 60in.lbs. min.(6.8Nm) | 60in.lbs. min.(6.8Nm) |
| Recommended Installation Torque | 30-40in.lbs.(3.4-4.5Nm) | 35-45in.lbs.(4.0-5.1Nm) | 35-45in.lbs.(4.0-5.1Nm) | 35-45in.lbs.(4.0-5.1Nm) |
Size or Clamping range: ( Only part sizes are showed, more sizes are available)
| K-Seal Size | Diameter Range | |||||||
| All Stainless Steel | All 201+carbon steel screw | AISI All 201ss | AISI All 301ss | AISI All 316ss | Decimals MIN. MAX. | Inches MIN. MAX. | Millimeters MIN. MAX | |
| KA6SS | KB6 | KB6SS | KF6SS | KL6SS | .44 .78 | 7/16 | 25/32 | 11-20 |
| KA8SS | KB8 | KB8SS | KF8SS | KL8SS | .44 .91 | 7/16 | 29/32 | 11-23 |
| KA10SS | KB10 | KB10SS | KF10SS | KL10SS | .56 1.06 | 9/16 | 1-1/16 | 14-27 |
| KA12SS | KB12 | KB12SS | KF12SS | KL12SS | .69 1.25 | 11/16 | 1-1/4 | 17-32 |
| KA16SS | KB16 | KB16SS | KF16SS | KL16SS | .75 1.50 | 3/4 | 1-1/2 | 19-38 |
| KA20SS | KB20 | KB20SS | KF20SS | KL20SS | .81 1.75 | 13/16 | 1-3/4 | 21-44 |
| KA24SS | KB24 | KB24SS | KF24SS | KL24SS | 1.06 2.00 | 1-1/16 | 2 | 27-51 |
| KA28SS | KB28 | KB28SS | KF28SS | KL28SS | 1.31 2.25 | 1-5/16 | 2-1/4 | 33-57 |
| KA32SS | KB32 | KB32SS | KF32SS | KL32SS | 1.56 2.50 | 1-9/16 | 2-1/2 | 40-64 |
| KA36SS | KB36 | KB36SS | KF36SS | KL36SS | 1.81 2.75 | 1-13/16 | 2-3/4 | 46-70 |
| KA40SS | KB40 | KB40SS | KF40SS | KL40SS | 2.06 3.00 | 2-1/16 | 3 | 52-76 |
| KA44SS | KB44 | KB44SS | KF44SS | KL44SS | 2.31 3.25 | 2-5/16 | 3-1/4 | 59-83 |

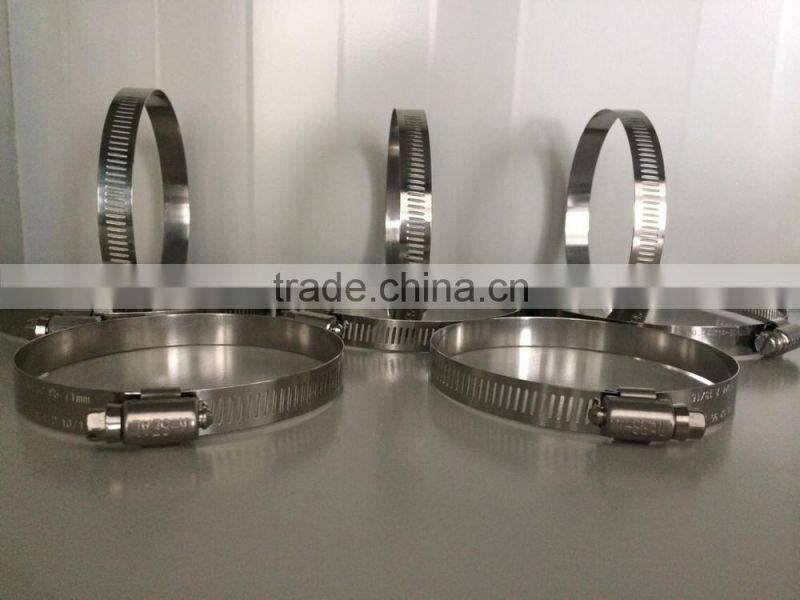

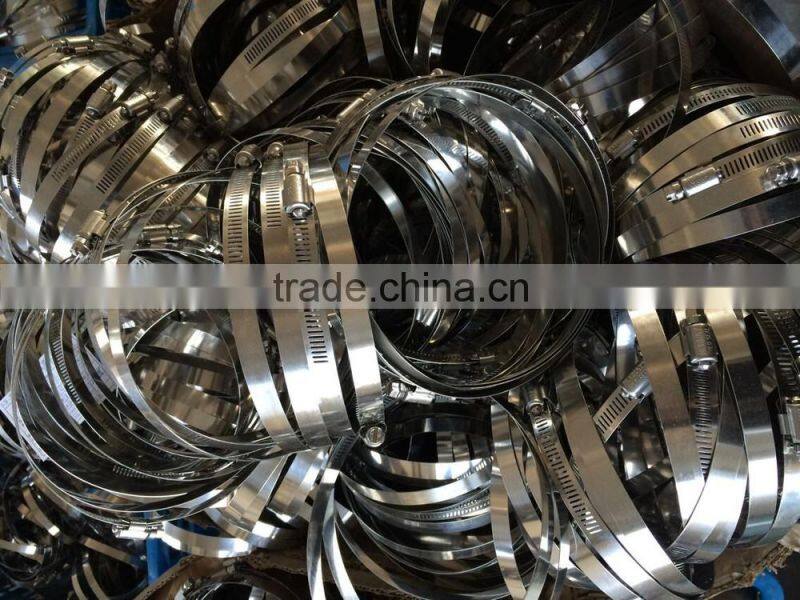

Products images:

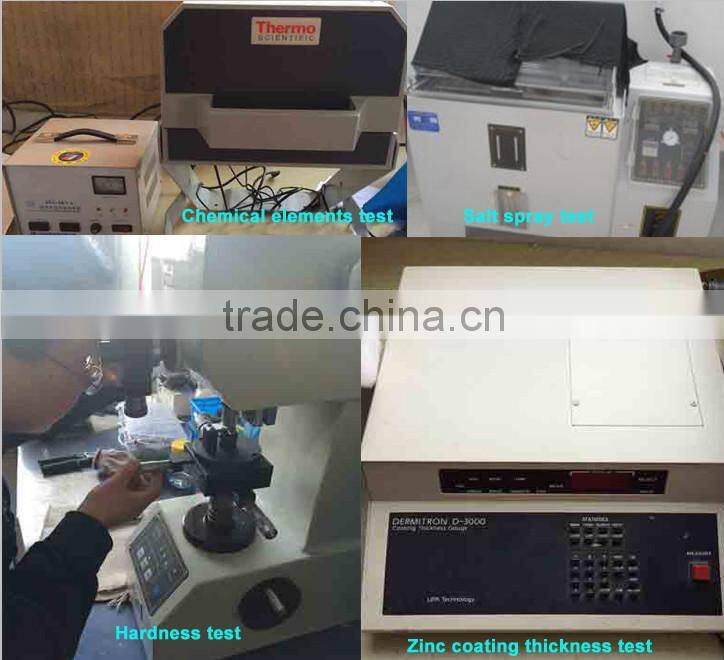

Tests:

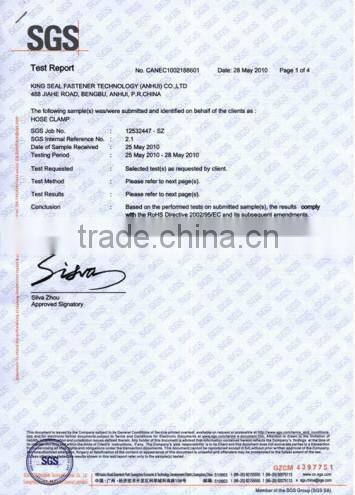

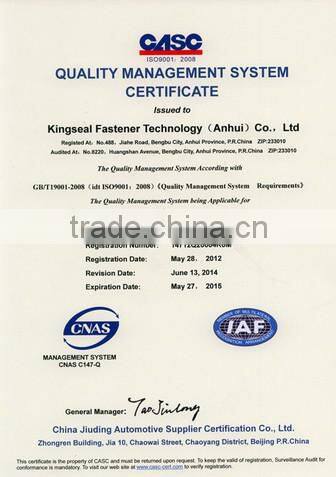

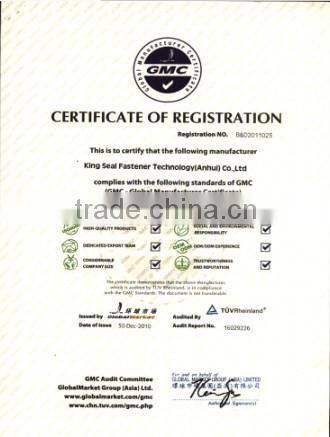

Certificates:

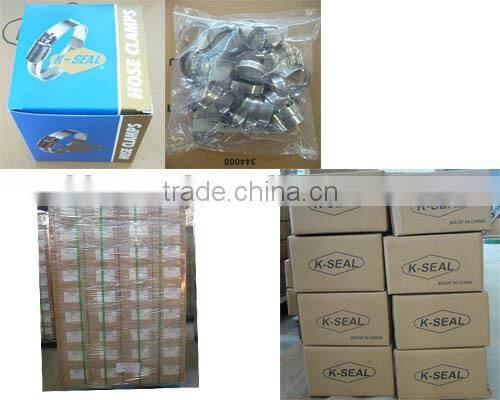

Packaging :

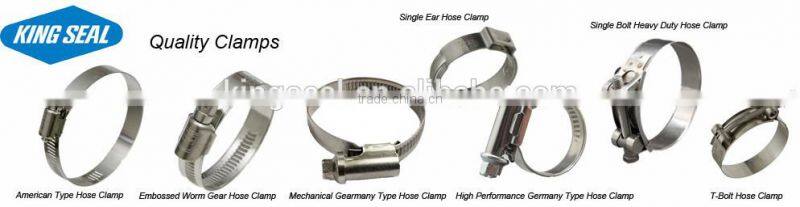

Main products:
