Home > Instruments & Meters > Test Instrument > Test Machine > IIJ-603 Automatic Transformer Oil Dielectric Tester, Breakdown Voltage Testing Equipment

IIJ-603 Automatic Transformer Oil Dielectric Tester, Breakdown Voltage Testing Equipment

US$ 1 - 3,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Chongqing, China

Brand Name:

TOP

Model Number:

IIJ-603

Contact Supplier Request Quote Chat Now

Chongqing TOP Oil Purifier Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Chongqing, China

Brand Name TOP

Model Number IIJ-603

IIJ-603 automatic transformer oil dielectric tester, breakdown voltage testing equipment

Product Description

Features :

> The instrument is of single cup portable design
>5.4 inches LCD screen, English menu easy to man-machine dialogue, with functions of temperature and humidity measurements, and clock display
> Simple operation, auto-complete boost, maintain, stir and let stand, computing, data storage and printout and other operations
> It can store data when the power is cut, automatically save the test results;
> Over voltage, over current, limit and grounding alarm functions to protect the safety of operating personnel
> Unique waveform tuning function, eliminate harmonic waves’ interference for accurate determination
> Use PLC and CPU dual control, guarantee instrument work stable and reliable:
> The instrument controlled by large-capacity single-chip, stable and reliable
> Instruments offers a wide range of watchdog circuit, eliminate the phenomenon of death

Technology and parameter data:

Output voltage	0~80kV(can be set)
Voltage distortion rate	≤2%
Boost rate	2.0kV/S, 2.5kV/S, 3.0kV/S, 3.5kV/S (four gears optional)
Boost capacity	1.5kVA
Accuracy	±(2%+2words)
Power voltage	AC220V±10%
Power frequency	50Hz±2%
Power consumption	≤200W
Temperature	0℃~45℃
Humidity	≤85%RH
Dimension	(w)410mm×(h)390mm×(vertical depth)375mm
Net weight	~29kg

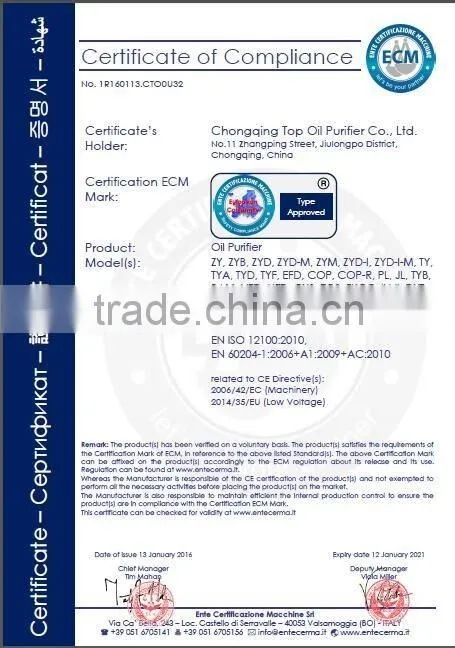

Our company's updated CE certificate:

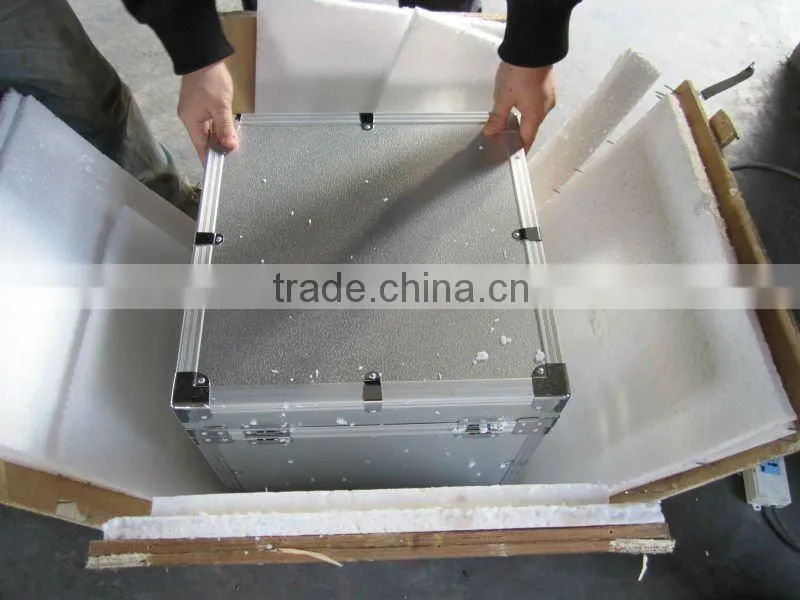

Packaging & Shipping

Reliable packaging and transport

Our Services

Trustable technical and after sale serivece

Pre-Sale Service
1. Professional pre-sale model/configuration selection advise and technical support -- offered by experienced technician.
2. Free on-site installation, debugging and technical training -- offered by strictly trained technology application engineers.

After-Sale Service
1. The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
2. We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
3.We build instrument service profile for our clients to record the product service and maintenance conditions.
4. After instruments start service, we will pay follow-ups to collect the service conditions.

Company Information

About us:

Chongqing TOP Oil Purifier Manufacture Co., Ltd is a professional leading manufacturer of oil purifiers and oil

testers. We takes the mission of existing on the basis of excellent quality as well as developing technical innovation, and introduces advanced technology.

TOP's pruducts are widely used in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway. They help a lot with reducing energy consumption and also environmental pollution.

Top will as always make great effort to and also be proud of supplying you the best oil purifying equipments.

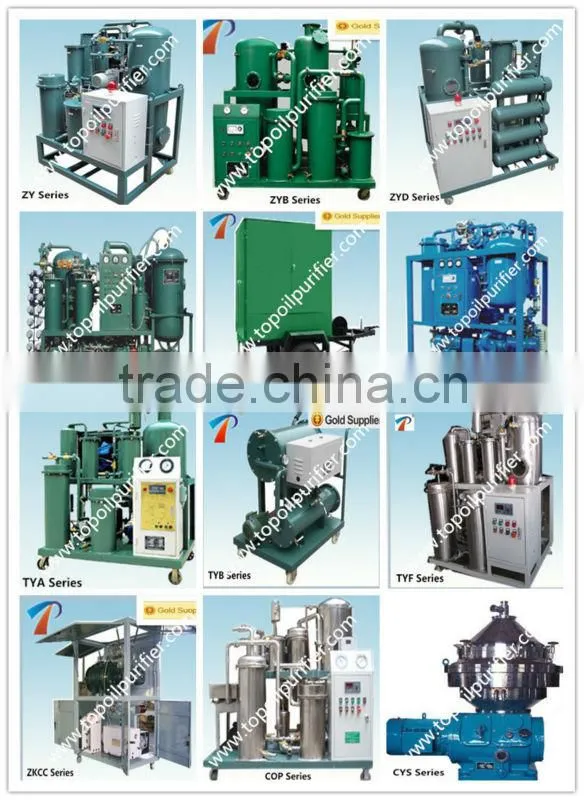

Our Main Products:

Our Purifier Machina:

Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier
Series ZYB Multiply-Function insulating oil treatment machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series TYB Portable light Fuel oil purification machine
Series TYD Vacuum dehydrator
Series TYF Phosphate ester fire-resistance oil purifier
Series PL Plate pressure oil purifier
Series TYD Vacuum dehydrator
Series EFD Explosion protection filtration machine
Series BAM Press filtration system
Series ZKCC Vacuum pumping device
Series COP Cooking oil purification machine
Series CYS Centrifugal oil purification machine
Series JL Portable oil filtering and oiling machine
