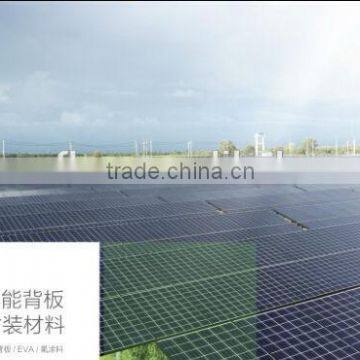

Help CenterThin Film/membrane pv Solar Panel
Related Products
Fluorine alloy film
Performance index GR-M02
Test Items |
Unit |
Test Standard |
Standard value |
Thickness tolerance |
--- |
GB/T6672-2001 |
25-30 |
Tensile strength |
MPa |
ASTM D 882-2002 |
>30 |
Elongation at break |
% |
ASTM D 882-2002 |
>100 |
Heat shrinkage 150℃×30min |
% |
ASTM D 1204-2002 |
<1.5 |
Fire resistance |
|
UL-94 |
VTM-0 |
Breakdown voltage |
KV |
ASTM D 149-1997 |
≥3 |
Water vapor permeability 38℃100%R.H |
g/m2•d |
ASTM F 1249-2006 GB/T 26253 |
≤60 |
|
Damp-heat treatment (85℃×85%RH,2000h) |
|
IEC 61215/ GB/T 9535 |
No bubble, no separation, no crack and significantly sticky |
UV treatment (60kWh.m2) Δb |
- |
IEC 61345/ GB/T 9535 |
≤3 |
|
Hot and cold cycle processing (-40℃~85℃,6h/cycle.400cycle) |
|
IEC 61215/ GB/T 9535 |
No bubble, no separation, no crack and significantly sticky |
|
Wet frozen processing After 50 times Hot and cold cycle (-40℃~85℃,24h/cycle.20cycle) |
|
IEC 61215/ GB/T 9535 |
No bubble, no separation, no crack and significantly sticky |
Thickness of the product can be customized according to customer's request
Application
GREENFLON fluorine alloy film has excellent electrical insulation, weather resistance, barrier property, adhesion, low water permeability.
Quality standard:Q/GREEN J 0542-2013
Technical requirement:IEC6173060664
Environmental credential:ROHS ,REACH In compliance with ROHS and REACH
