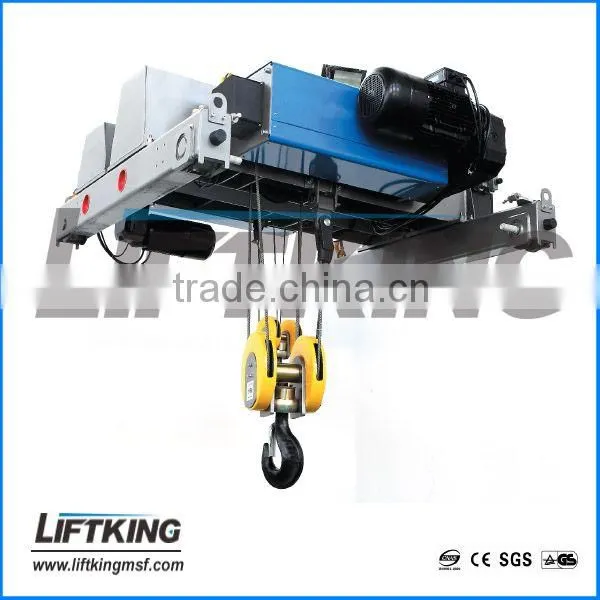

European Style Double Rail Electric Wire Rope Hoist , Capacity 3.2t-50t
US$ 3,500 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
LIFTKING
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Girder Electric Wire Rope Hoist , Capacity 3.2t-50tUS$ 3,500 - 8,000MOQ: 1 Set -
Double Girder Wire Rope Hoist With MotorizedUS$ 3,500 - 8,000MOQ: 1 Set
-
European Style Wire Rope Hoist , Double Girder ,capacity 3.2t-50tUS$ 3,500 - 8,000MOQ: 1 Set
-
European Style Travelling Wire Rope Hoist , Double Girder ,capacity 3.2t-50tUS$ 3,500 - 8,000MOQ: 1 Set
-
European Style Running Wire Rope Hoist , Double Girder ,capacity 3.2t-50tUS$ 3,500 - 8,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
LIFTKING
Model Number
MSF-EDWRH
Usage
Construction Hoist
Power Source
Electric
Sling Type
Wire Rope
Maximum Lifting Weight
50t
Maximum Lifting Height
18m
Lift Speed
5/0.8m/min
Certification
CE
Warranty
12months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
European style double rail electric wire rope hoist1.brand :LIFTKING
2.capacity: 3.2t to 50t
3.CE
Specifications
pact structure
2.lightweight/small volume
nvenient operation
4.European style
European style double rail electric wire rope hoist
Including: single girder electric hoist
MSF series Electric wire rope hoist is a newly developed electric hoist by our company on the basis of introducing advanced German manufacturing technology of electric wire rope hoist integrating the up to date standard of Hoist. It has rectangular shape with the electromotor, planetary reducer and electric in beeline collocation. Reducer is laid inside the hoisting drum, which can completely compare beauty with the same kind of products of foreign countries whether in the appearance or in the technique feature. Especially the modular design reveals the seamless connection with frequency inverter controlled automatic running of high or low speed diving or lifting.
| Capacity (t) | 3200 | 5000 | 6300 | 8000 | 10000 | 12500 | |||||||||||||||||||||||||
| Lifting Height (m) | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | |
| Lifting Speed (m/min) | 5/0.8 | 5/0.8 | 5/0.8 | 5/0.8 | 5/0.8 | 5/0.8 | |||||||||||||||||||||||||
| Lifting Motor (kw) | 3.2/0.45 | 6.1/1 | 6.1/1 | 9.5/1.5 | 9.5/1.5 | 12.5/2 | |||||||||||||||||||||||||
| Traveling Speed (m/min) | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | |||||||||||||||||||||||||
| Traveling Motor (kw) | 0.25*2 | 0.37*2 | 0.37*2 | 0.37*2 | 0.37*2 | 0.55*2 | |||||||||||||||||||||||||
| Wire Rope | Breaking Force | 2160N/mm^2 | |||||||||||||||||||||||||||||
| Safety factor | 4.5:1 | ||||||||||||||||||||||||||||||
| Insulation Grade | F | ||||||||||||||||||||||||||||||
| Control Panel | IP65 | ||||||||||||||||||||||||||||||
| Working Grade (FEM/ISO) |
Lifting | 2M / M5 | 2M / M5 | 2M / M5 | 2M / M5 | 2M / M5 | 1Am / M4 | ||||||||||||||||||||||||
| Traveling | 2M /M5 | 2M /M5 | 2M /M5 | 2M /M5 | 2M /M5 | 2M / M5 | |||||||||||||||||||||||||
| Dimension (mm) |
H | 500 | 520 | 520 | 550 | 550 | 550 | ||||||||||||||||||||||||
| C | 420 | 425 | 425 | 580 | 580 | 580 | |||||||||||||||||||||||||
| Smin(m) | 1.2 | 1.4 | 1.4 | 1.7 | 2 | 1.4 | 1.4 | 1.4 | 1.7 | 2 | 1.4 | 1.4 | 1.4 | 1.7 | 2 | 1.4 | 1.7 | 1.7 | 1.7 | 2 | 1.4 | 1.7 | 1.7 | 1.7 | 2 | 1.4 | 1.7 | 1.7 | 1.7 | 2 | |
| Type | Double Girder Running | ||||||||||||||||||||||||||||||
| Capacity (t) | 16000 | 20000 | 25000 | 32000 | 40000 | 50000 | |||||||||||||||||||||||||
| Lifting Height (m) | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | 6 | 9 | 12 | 15 | 18 | |
| Lifting Speed (m/min) | 4/0.6 | 4/0.6 | 3.3/0.8 | 3.3/0.8 | 0~4 | 0~3 | |||||||||||||||||||||||||
| Lifting Motor (kw) | 16/2.6 | 16/2.6 | 20/5 | 20/5 | 38 | 38 | |||||||||||||||||||||||||
| Traveling Speed (m/min) | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | |||||||||||||||||||||||||
| Traveling Motor (kw) | 0.55*2 | 0.55*2 | 0.75*2 | 1.1*2 | 1.5*2 | 1.5*2 | |||||||||||||||||||||||||
| Wire Rope | Breaking Force | 2160N/mm^2 | |||||||||||||||||||||||||||||
| Safety factor | 4.5:1 | ||||||||||||||||||||||||||||||
| Insulation Grade | F | ||||||||||||||||||||||||||||||
| Control Panel | IP65 | ||||||||||||||||||||||||||||||
| Working Grade (FEM/ISO) |
Lifting | 2M / M5 | 1Am / M4 | 3M / M6 | 2M / M5 | 1Am / M4 | 2M / M5 | ||||||||||||||||||||||||
| Traveling | 2M / M5 | 2M / M5 | 2M /M5 | 2M / M5 | 2M / M5 | 2M / M5 | |||||||||||||||||||||||||
| Dimension (mm) |
H | 720 | 720 | 950 | 950 | 950 | 950 | ||||||||||||||||||||||||
| C | 520 | 520 | 450 | 450 | 960 | 990 | |||||||||||||||||||||||||
| Smin(m) | 1.4 | 1.7 | 2 | 2.4 | 2.7 | 1.4 | 1.7 | 2 | 2.4 | 2.7 | 1.7 | 2 | 2.4 | 2.7 | 3.1 | 1.7 | 2 | 2.4 | 2.7 | 3.1 | 1.7 | 2 | 2.4 | 2.7 | 3.1 | 1.7 | 2 | 2.4 | 2.7 | 3.1 | |
