Copolymer coated aluminum tape,
More than 25 years manufacturing experience
High quality, prompt delivery, best service
Shanghai Wangxun , First nominator in shielding material industry
Product information
Copolymer coated aluminum tape | ||
Material thickness | Aluminum Substrate | 0.08, 0.10, 0.125, 0.15, 0.20 mm |
Coating film | 0.058mm | |
Total | 0.16, 0.20, 0.25, 0.30mm | |
Tensile strength | >=65 MPa | |
Elongation to break | >= 15 % | |
Peel strength | >= 613 N/m | |
Heat seal strength | >= 1750N/m | |
Shear strength | The coated metal tape fails in tension before the bond between coatings fails in shear | |
Moisture Resistance | No Decrease | |

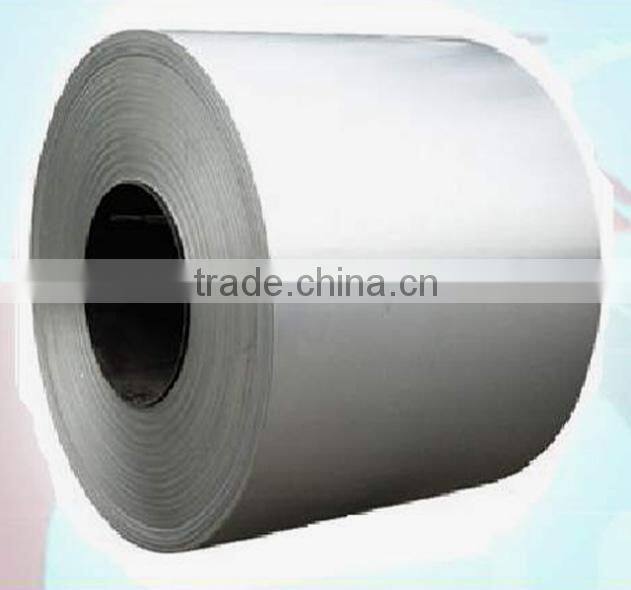

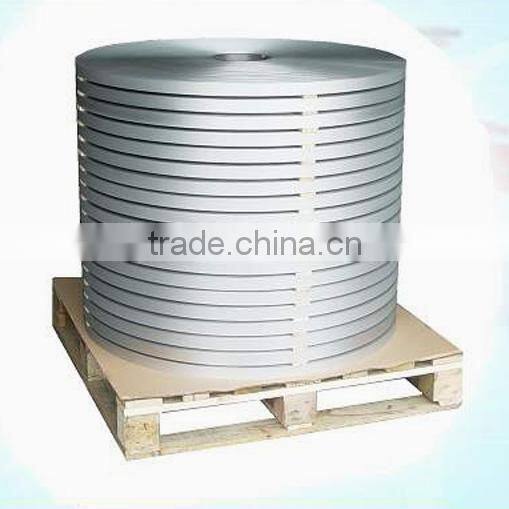

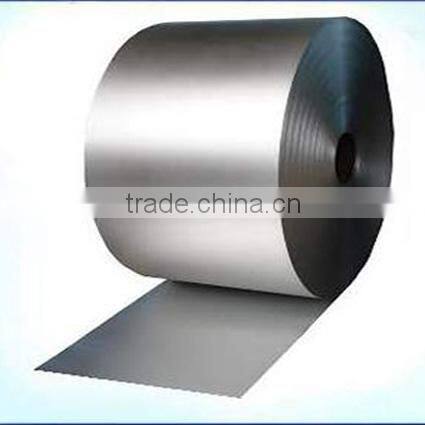

Product:
Main applications:
Telecommunication material. Copolymer coated Al tape provide a moisture, chemical barrier, shielding layer and armor for Fiber Optic Cable, Communication Cable, Power Cable and Coaxial Cable.
SHWX Brand Features:
The copolymer forms good bond to not only the steel substrate, but also Low Density Polyethylene (LDPE), Linear Low Density Polyethylene (LLDPE), Medium Density Polyethylene (MDPE), High Density Polyethylene (HDPE) and Halogen-Free Polyolefin (HFPO) jacketing resins, and consequently forms a "composite protection coat" to provide a reliable moisture, chemical barrier and shielding layer to cable core.
Copolymer coated steel tape serves as an armor to provide mechanical protection against outside force for cable core. It prevents rodent destruction so that the life span of Fiber Optical Cable is extended.
Electrolytic Chrome-Coated Steel (ECCS) is used for steel substrate, so the corrosion crush and twist resistance is very goods, and it is easy to process.
Specification:
Slitting Width: 12mm - 800mm
Jumbo Roll Width: 516mm, 556mm, 610mm, 800mm
Standard Length: 2KM, 3KM, 4KM
Metal Core ID: 76mm, 102mm, 152mm, 406mm
Other Length, width and ID may be at buyer's option.
Product Advantages:
Low Coefficient of Kinetic Friction (CKF), 30%-50% lower than other product.
Free from tool marks, Free from flouncing, Free from joint.
Straight, Smooth, Plain.
Length up to 5km, width from 12mm up to 1100mm at buyer's option.
Two benefits for those characteristics above:
1. During cable manufacturing, the CKF between the plastic clad metal tape and cable manufacture moulds is so little that the tape breaking is minimized, cable production is speed up, and it causes high yield, and reduce cost.
2. Due to low CKF, the wastage of mechanical properties of coated metal tape is small, after being molded, the finished cable has superior aging resistance and the life span of cables is extended.
Certificates & Award

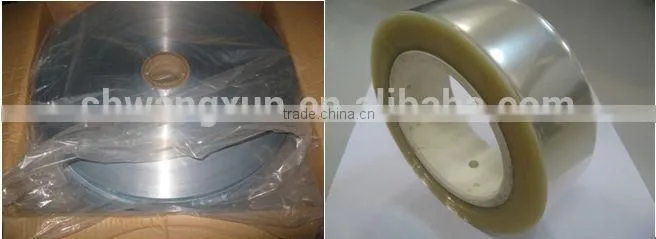

Our products range

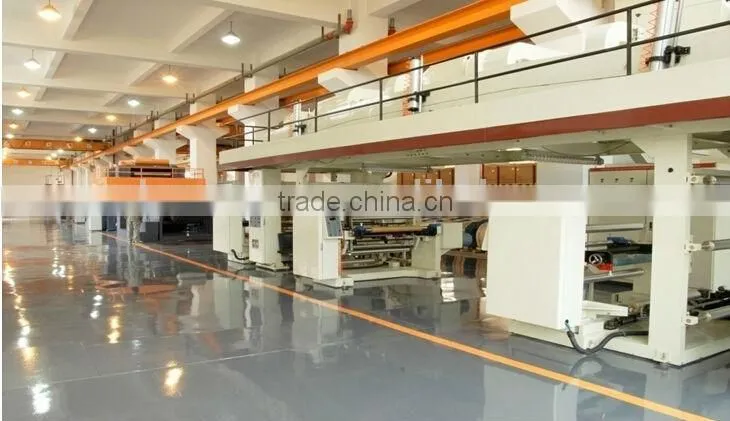

Our Factory
Shanghai Wangxun New Material Co., Ltd. (SHWX) is the most famous and influential material supplier of fiber optic cable and power cable in China. Our products are widely applied in various kinds of cables such as Optic Fiber Cable, Telecommunication Cable, Power Cable, Submarine Cable, Optical Fiber Compound Overhead Ground Wire (OPGW), Control Cable, Signal Cable and Track Cable etc. Our products are also used for magnetic apparatus, cold / hot water pipe and flexible packaging.
The innovation capacity in R&D is exclusively designed, developed and manufactured by ourselves, that is to say, we own 100% the intellectual property rights, and we have obtained six invention patents too. Further, SHWX were involved in the stipulation of China’s new telecommunication industry standards, YD/T723-2007 Laminated Metal Plastic Strip for Telecommunication Cable and Optical Fiber Cable.

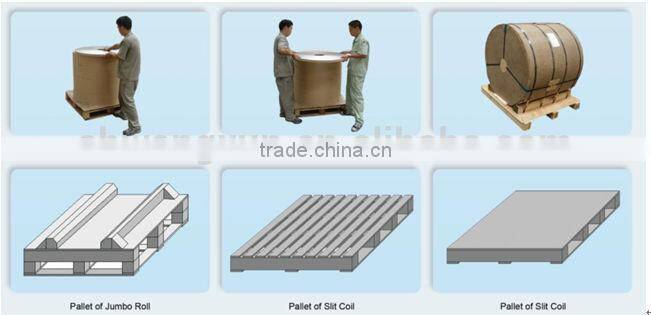

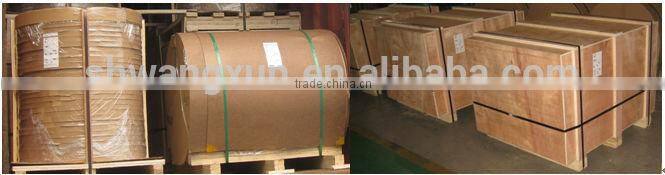

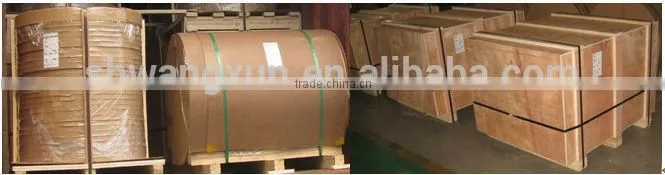

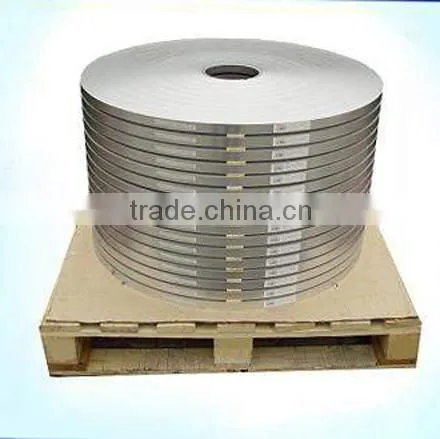

Package:

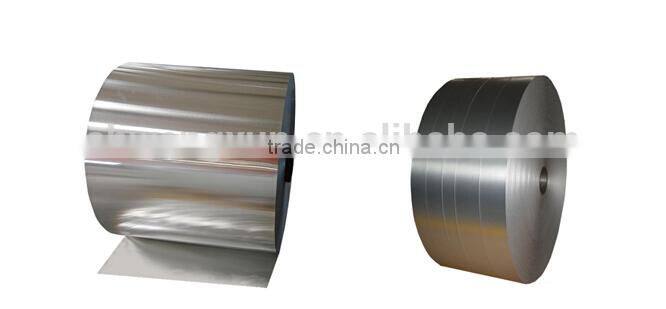

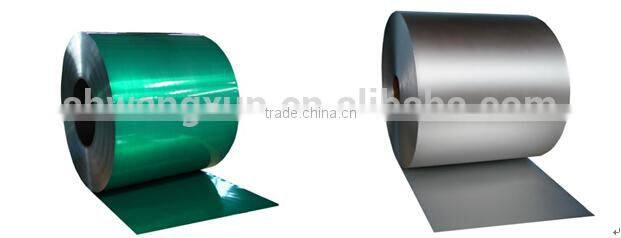

SHWX Product Range:
Aluminum Polyester Mylar Tape, Copper Polyester Mylar Tape, PET Mylar Tape: Used for Coaxial Cable, LAN Cable, Signal Cable, Control Cable etc.
Copolymer coated Steel Tape: Used for Fiber Optic Cable, Communication Cable, Submarine Cable etc.
Copolymer coated AL Tape: Used for Communication Cable, Power Cable etc.
Copolymer coated Stainless Steel Tape: Used for Submarine Cable, Synthetic Cable.
PVC coated Al tape: Used for Communication Cable, Power Cable, Mining Cable etc.

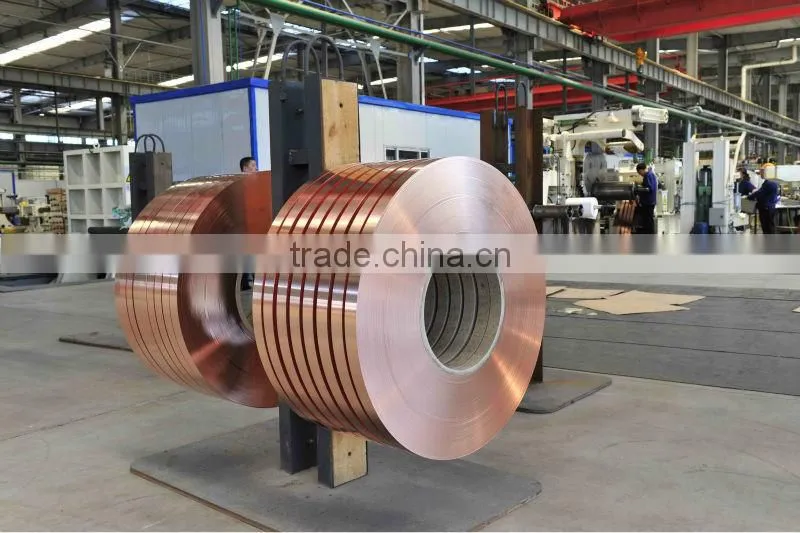

Copper Foil / Copper Tape for Medium and High Voltage Power Cable
