1t Single Speed Electric Chain Hoist With CE Certificate
- shanghai port or any other port in China
- T/T D/P D/A
You May Like
-
1t Electric Construction Chain Hoist
-
1.5t Single Speed Electric Chain Hoist
-
2 Ton Kito Type Suspended Electric Chain Hoist
-
1.5t Dual Speed Electric Chain Hoist With Motorized Trolley Manufacturer With ISO , CE Certification , LIFTKING Brand
-
2t Single Speed Electric Chain Hoist With Two Chain
-
Dual Speed Electric Chain Hoist
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | LIFTKING | Model Number | ECH01-01S | |
| Usage | Construction Hoist | Power Source | Electric | |
| Sling Type | Chain | Maximum Lifting Weight | 1.25t | |
| Maximum Lifting Height | 20m | Lift Speed | 6.6m/min | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1t single speed electric chain hoist with CE certificate
Advantages :
1. We are professional manufacturer of electric chain hoist with rich production experience near 15years
2. Capacity from 250kgs to 25T
3. All the Electric Chain Hoist have passed CE certification
4. Aluminum alloy shell , light but hard .
5.G80 alloy steel chain , can be used in poor invironment .
6.Hook: be hot forged with perfect strength , hard to break .
7.Push button : imported from Taiwan .
8.Can be equipped with remote control , rain cover , travel limiter .
pictures shows in our factory :
1. factory view :

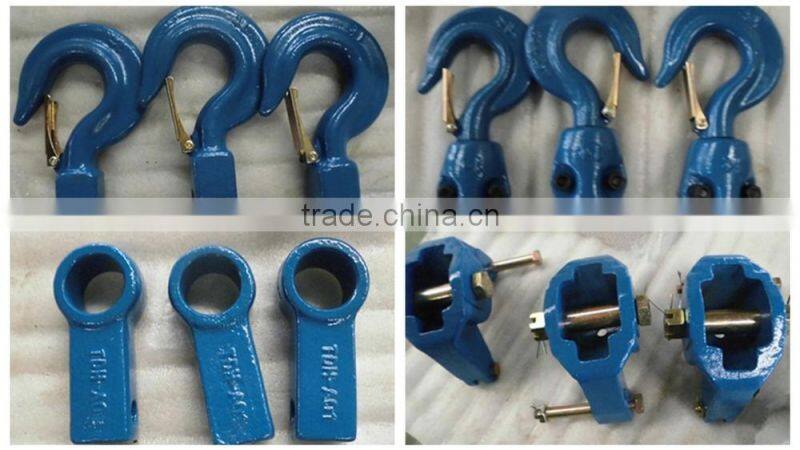

2. almost of spare parts are made by ourself :
3. hoist assembly

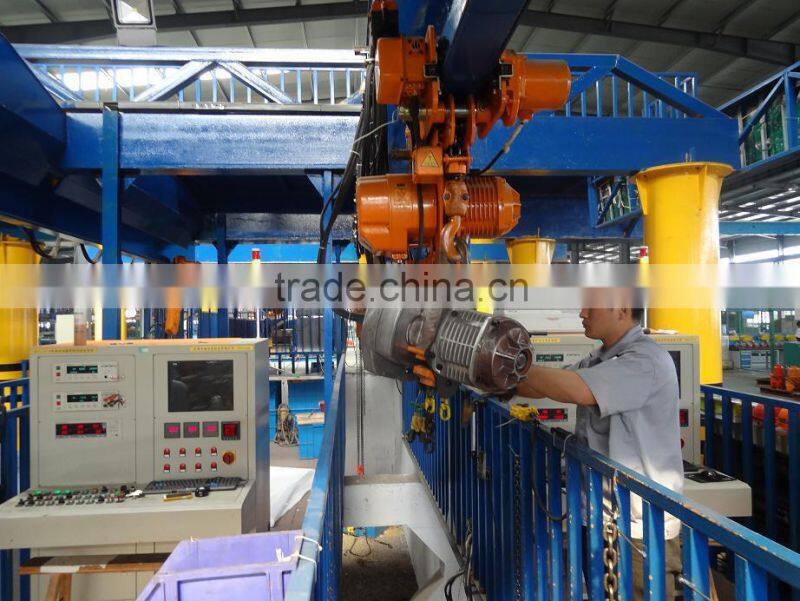

4. every hoist will be tested strictly to ensure the quality :

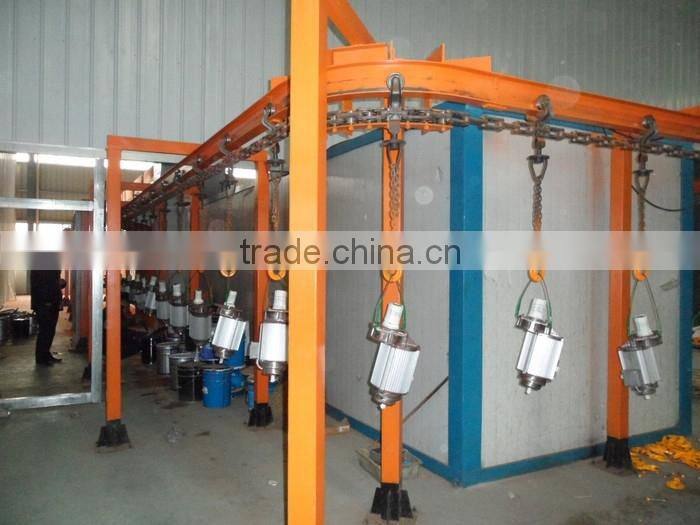

5. color can be painted as your required :
6. production line :

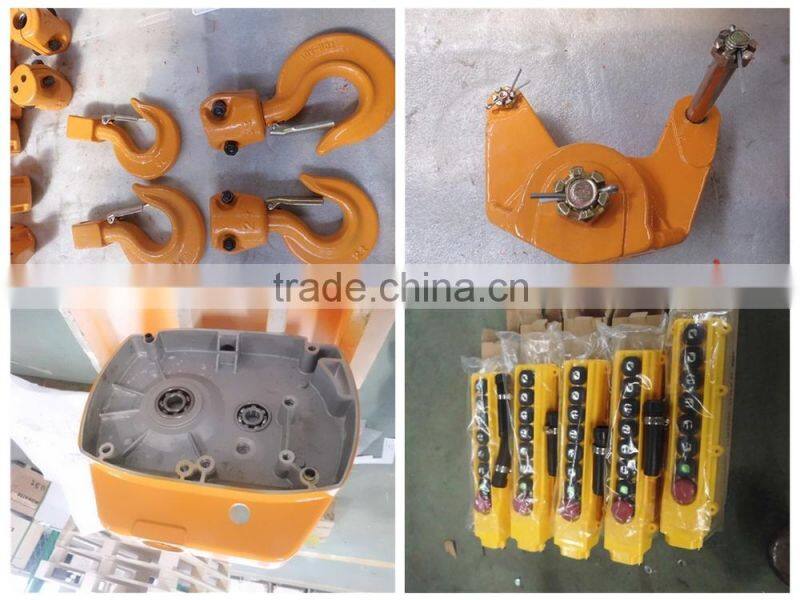

7. spare parts

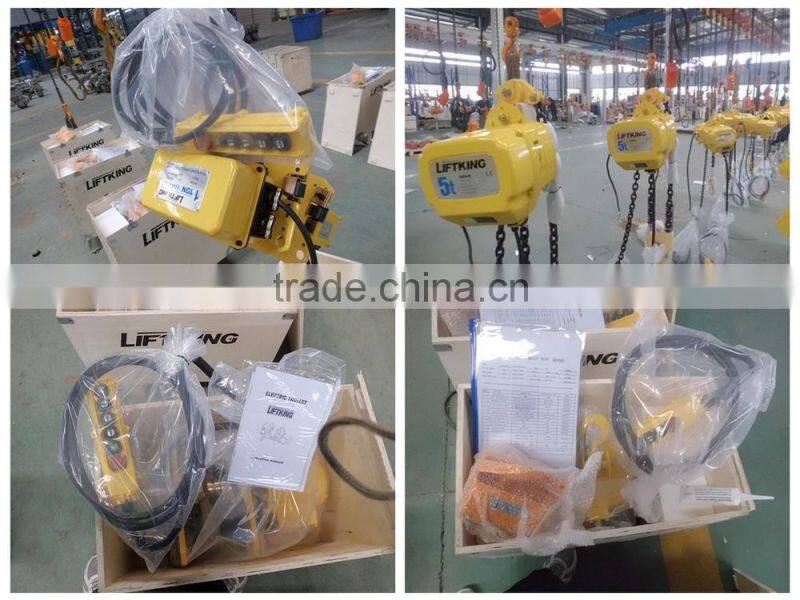

8. package and delivery :

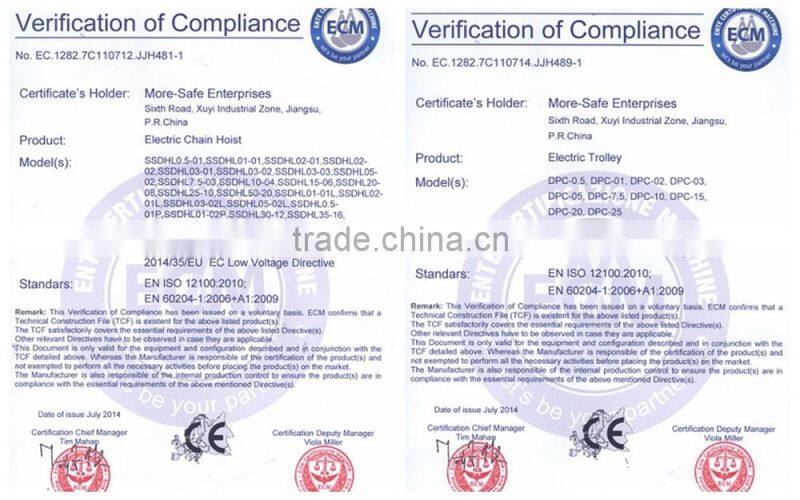

9. CE certificate
Our LIFTKING always waiting for you at two seasons Canton Fair every year :
LIFTKING Electric Chain Hoist specification :
| Single Speed | Technical Parameters | |||||||||
| Model | ECH | |||||||||
| 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S | |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | |||
| Lifting Speed(M/Min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor Power(Kw) | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 1.5 | 3.0 |
| Rotation Speed(R/Min) | 1440 | |||||||||
| Insulation Grade | F | |||||||||
| Power Supply | 3P 220V-690V | |||||||||
| Control Voltage | 24V/36V/48V | |||||||||
| No. Of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. Of Load Chain | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ7.1 | φ11.2 | φ11.2 | φ10.0 | φ7.1 | φ11.2 |
| Net Weight(Kg) | 47 | 61 | 108 | 115 | 73 | 115 | 122 | 131 | 85 | 151 |
| Dual Speed | Technical Parameters | |||||||||
| Model | ECH | |||||||||
| 0.5-01D | 01-01D | 1.5-01D | 02-01D | 02-02D | 2.5-01D | 03-01D | 03-02D | 03-03D | 05-02D | |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | |||
| Lifting Speed(M/Min) | 7.2/2.4 | 6.9/2.3 | 9.0/3.0 | 6.9/2.3 | 3.3/1.1 | 5.4/1.8 | 5.4/1.8 | 4.5/1.5 | 2.4/0.8 | 2.7/0.9 |
| Motor Power(Kw) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 |
| Rotation Speed(R/Min) | 2880/960 | |||||||||
| Insulation Grade | F | |||||||||
| Power Supply | 3P 220V-690V | |||||||||
| Control Voltage | 24V/36V/48V | |||||||||
| No. Of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. Of Load Chain | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ7.1 | φ11.2 | φ11.2 | φ10.0 | φ7.1 | φ11.2 |
| Net Weight(Kg) | 54 | 74 | 144 | 150 | 86 | 148 | 159 | 168 | 102 | 184 |
If you are interested in our products, please let me know the below question:
1. What type do you need? Hook type hoist or hoist with trolley?
2. Capacity ?
3. Lifting height?
4. Single speed or dual speed ?
5. Quantity ?
We will quote the best price to you after receiving your detail information!
