Kito Type Manual Chain Block With G80 Load and Galvanized Hand Chain , LIFTKING Brand Lifitng Tools Manufacturer
- SHANGHAI
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | LIFTKING | Model Number | HSZ-K | |
| Usage | Construction Hoist | Power Source | Hand Chain | |
| Sling Type | Chain | Maximum Lifting Weight | 20t | |
| Maximum Lifting Height | 12m | Certification | ce, CE,ISO9001 | |
| Warranty | 12months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Kito type manual chain block with G80 load and galvanized hand chain , LIFTKING brand lifitng tools manufacturer with CE certificate
Introduction :
Name : manual chain block
Model : HSZ-K , Kito Type chain block
Capacity: 250kgs to 20t
Load chain : Superior Grade 80 load chain -Din standard.
Hand chain : Galvanized
Hooks : Forged and heat treated , stretch indicators .
Test : Individually proof load tested to 1.5 WLL with individual serial number to ensure the quality and safety for each chain hoist .
Usage : Widely used in construction or workshop , where there is no power , easy to operate and portable .
Certificate : CE tested by TUV .
Pictures show :

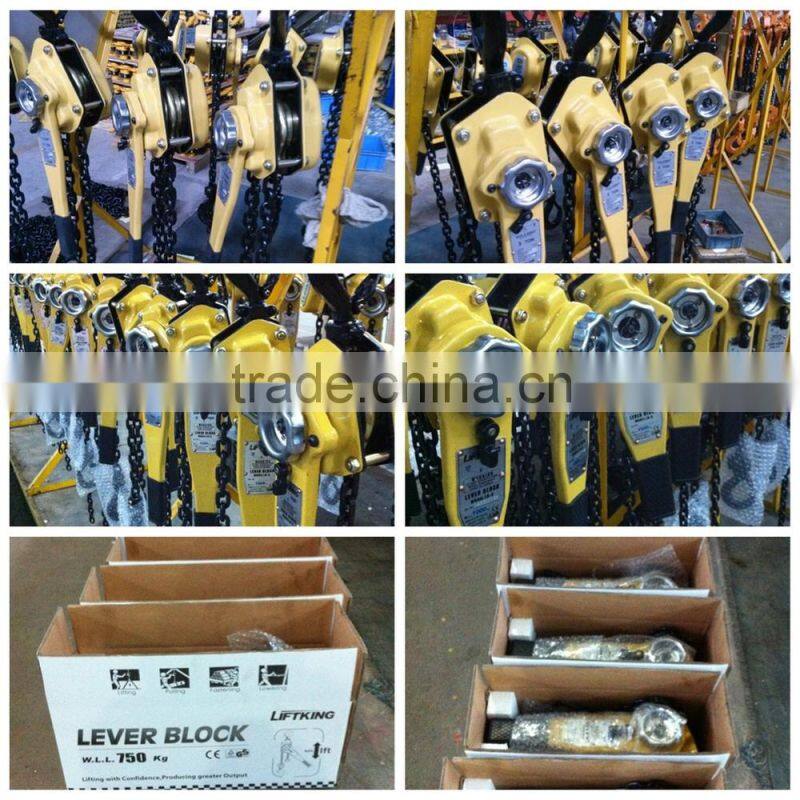

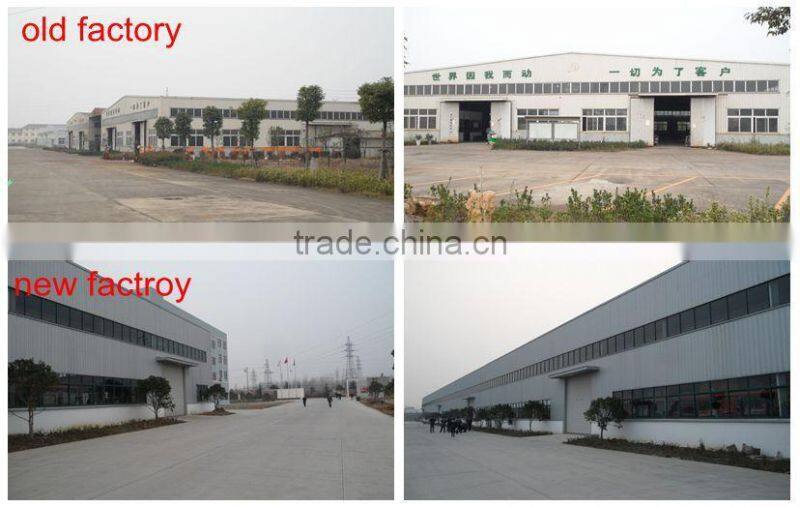

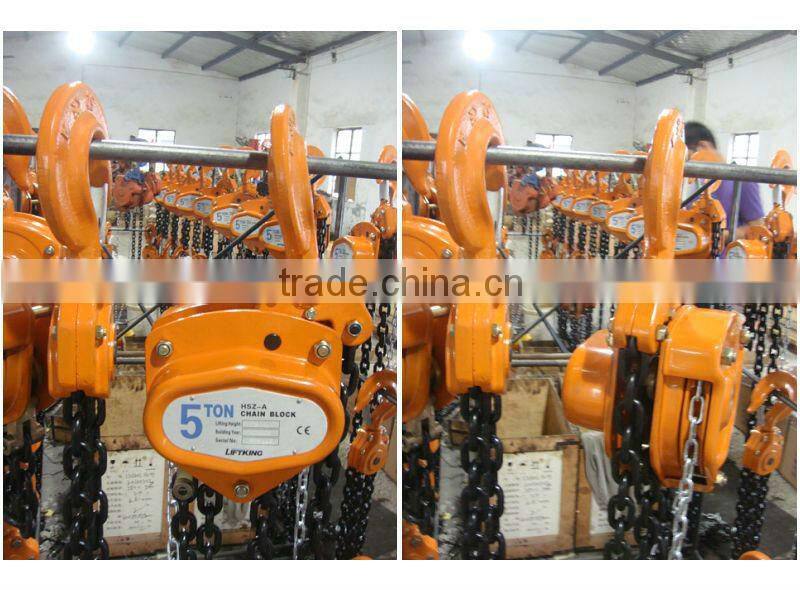

1. Our factory producing electric chain hoist and manual chain block :

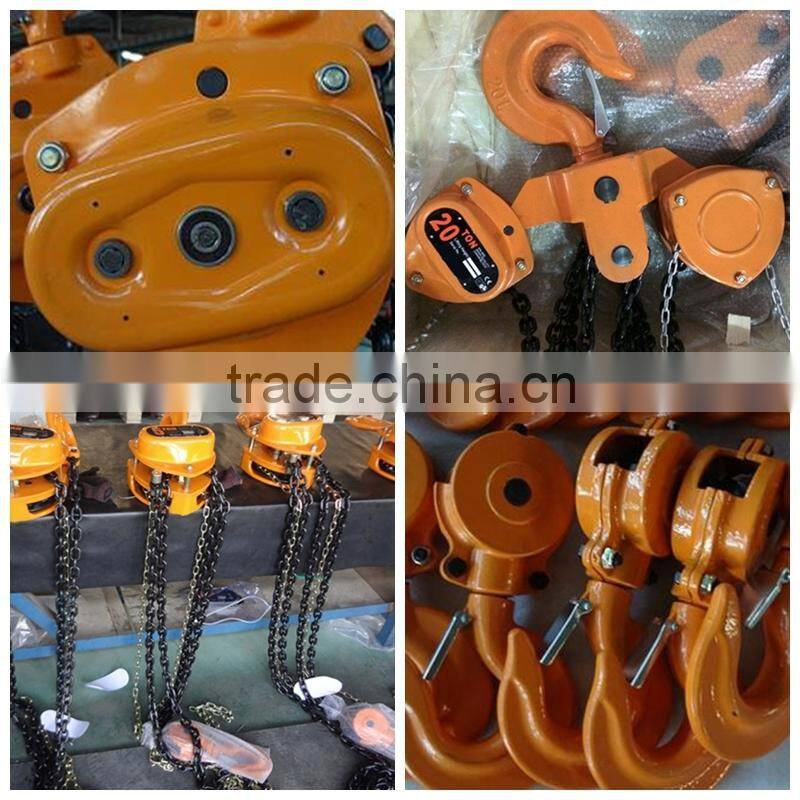

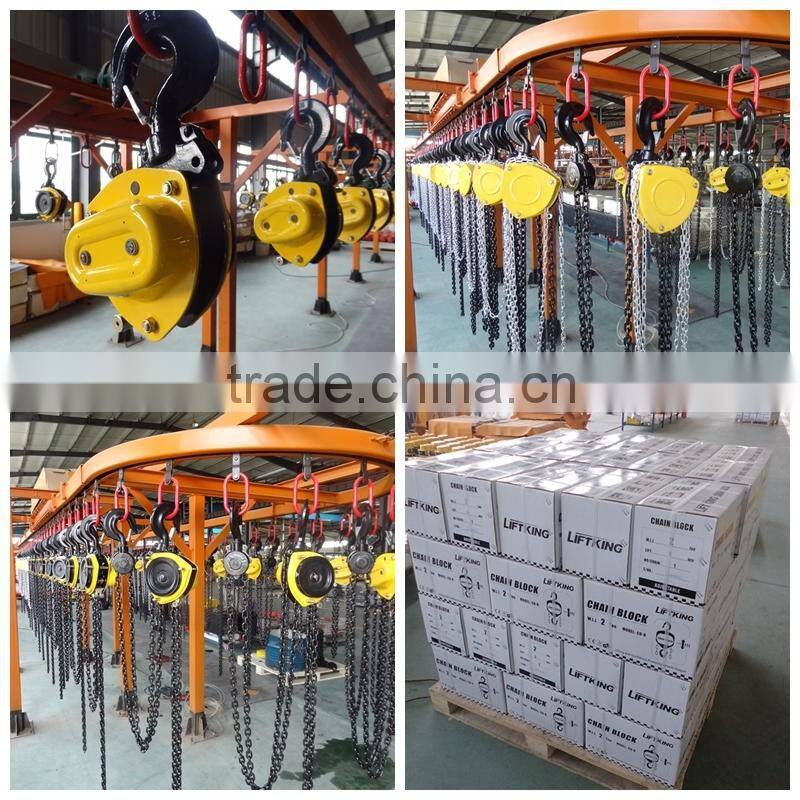

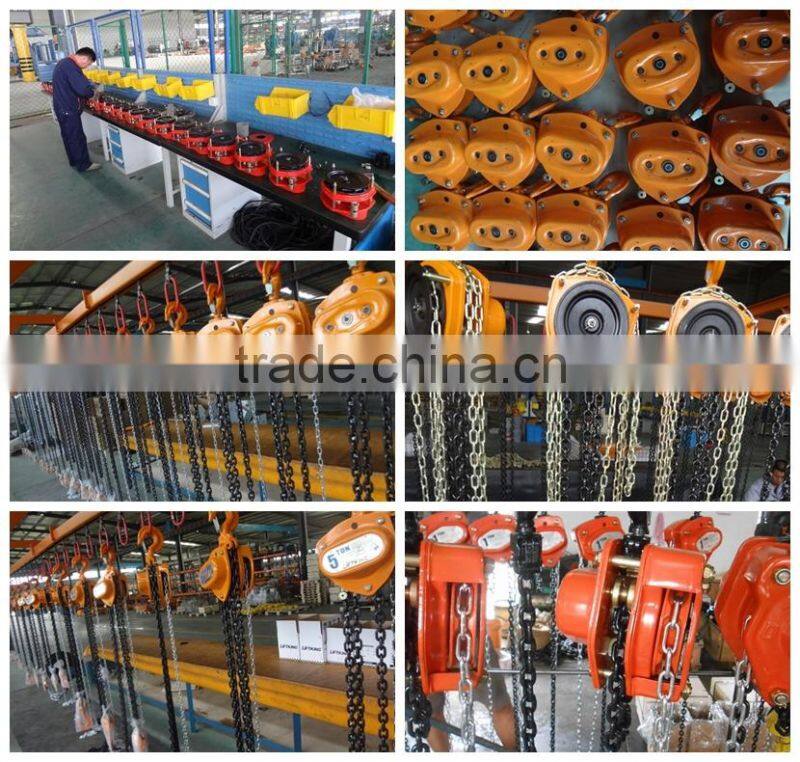

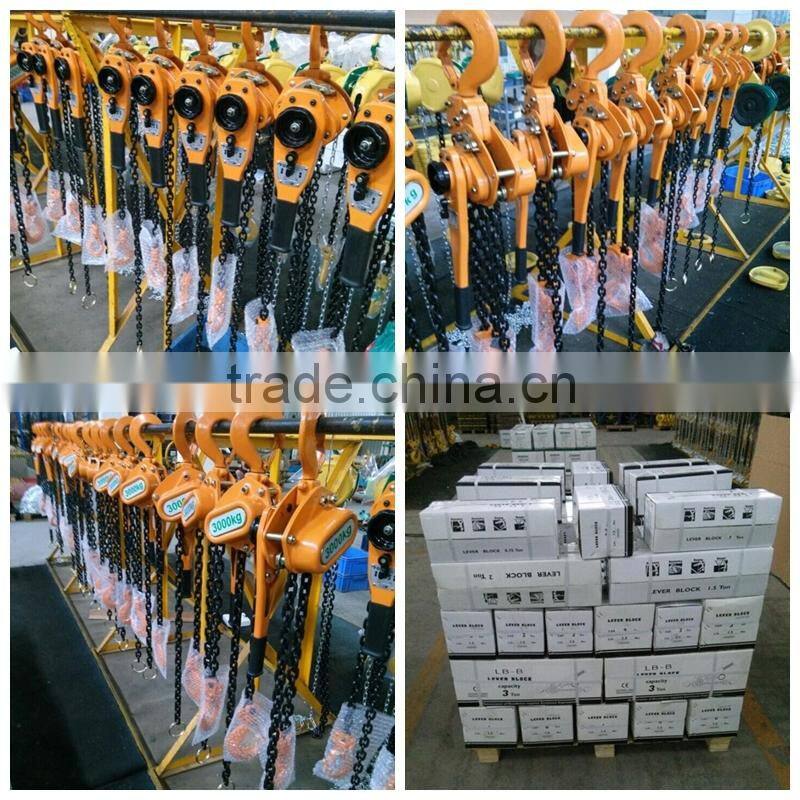

2. Production line :
3. CE certificate
Specification
| Model | HSZ-K | |||||||||
| Capcaity (ton) | 0.25 | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | ||
| Standard Lifting height(m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| Running Test Load (ton) | 0.3125 | 0.625 | 1.25 | 1.875 | 2.5 | 3.75 | 6.25 | 12.5 | ||
| Load Chain Dia. (mm) | Columns | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 4 | |
| Dia | 4 | 5 | 6 | 7 | 8 | 10 | 9 | 9 | ||
| Effort to Required to Lift Max.(n) | 226 | 235 | 245 | 255 | 324 | 363 | 353 | 380 | ||
| Net Weight (kg) | 6.5 | 9.3 | 12 | 16.4 | 19.4 | 31.1 | 40 | 85 | ||

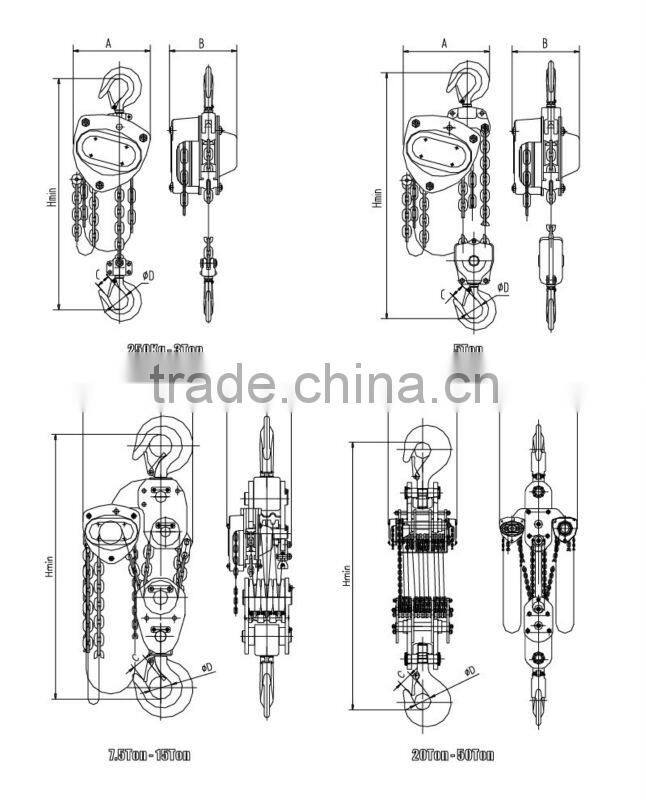

| Dimension (mm) | A | 121 | 148 | 172 | 196 | 210 | 255 | 280 | 463 | |
| B | 114 | 132 | 151 | 173 | 175 | 205 | 189 | 189 | ||
| C | 24 | 25 | 30 | 33 | 35 | 40 | 42 | 56 | ||
| H | 280 | 345 | 376 | 442 | 470 | 548 | 688 | 765 | ||
| Packing Measurements | 23×16×15 | 29×18×17 | 31.5×20×17 | 34×21×23 | 34×21×23 | 40×27.5×23 | 42×32×27 | 52×50×29 | ||
| Extra Weight per Meter of Extra Lift (kg) | 0.81 | 1 | 1.29 | 1.61 | 1.92 | 2.68 | 4.1 | 7.73 | ||
