Product Details
| Place of Origin | Guangdong, China | Brand Name | 2IN1 | |
| Model Number | SK19-2+5P | Type | Adapter | |
| Application | Other, outdoor LED lights, driving power, Solar, Buliding, boats, outdoor LED lights, power, Solar, boats, electrical equipment | Gender | Other, male and female, Male and female |
Product Description

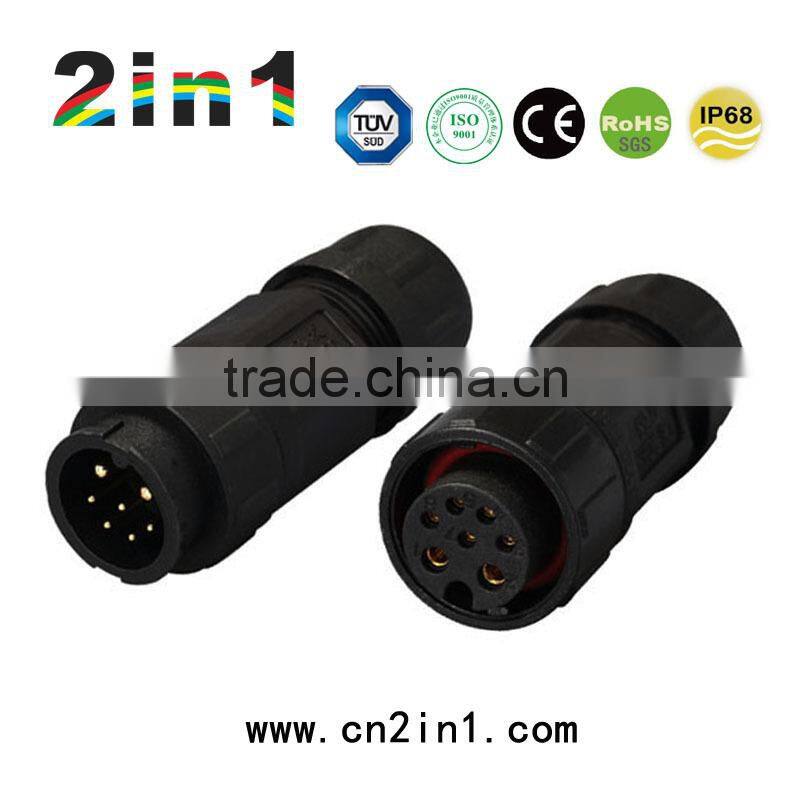

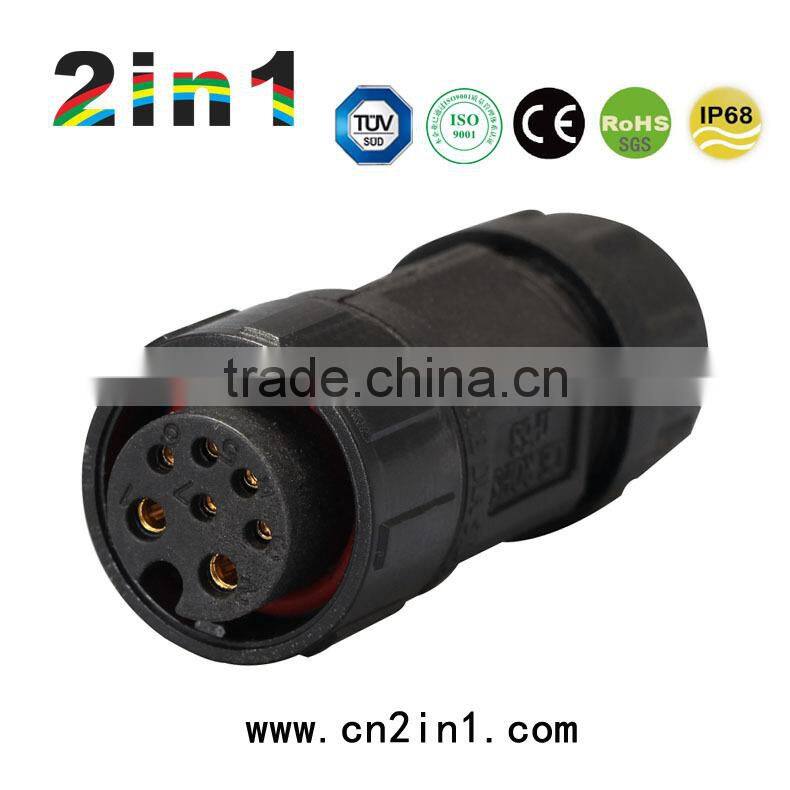

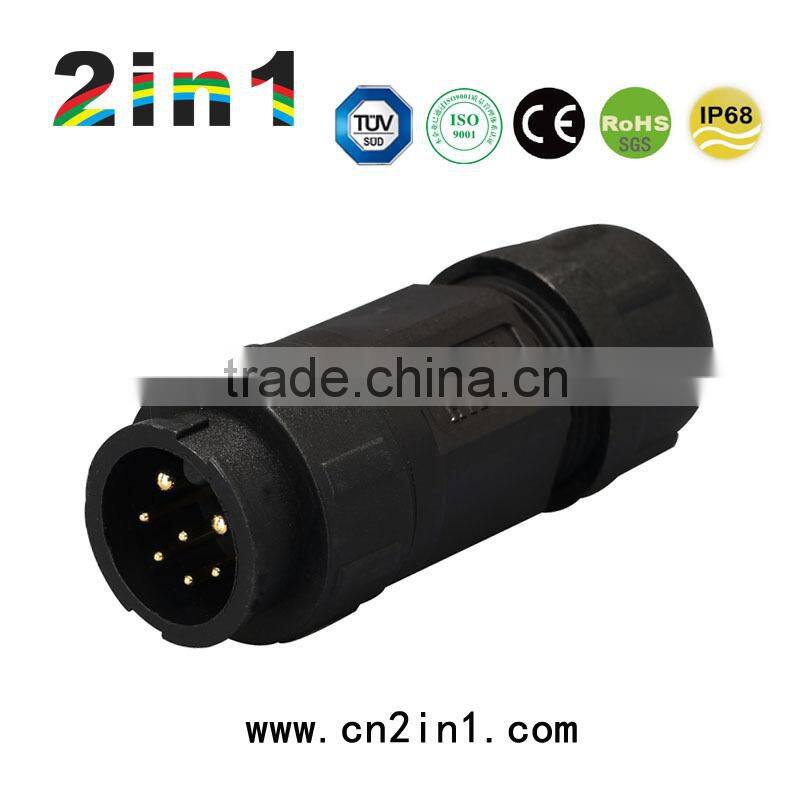

2in1 waterproof connector
Description:
1. Design Structure: Assembled
2. Case Color: Black
3. Case Shape: Straight Line
4. Wiring: Soldering
5. Connection: Screw
6. Waterproof Rating: IP67
7. Weight: 45g / set
Specification:

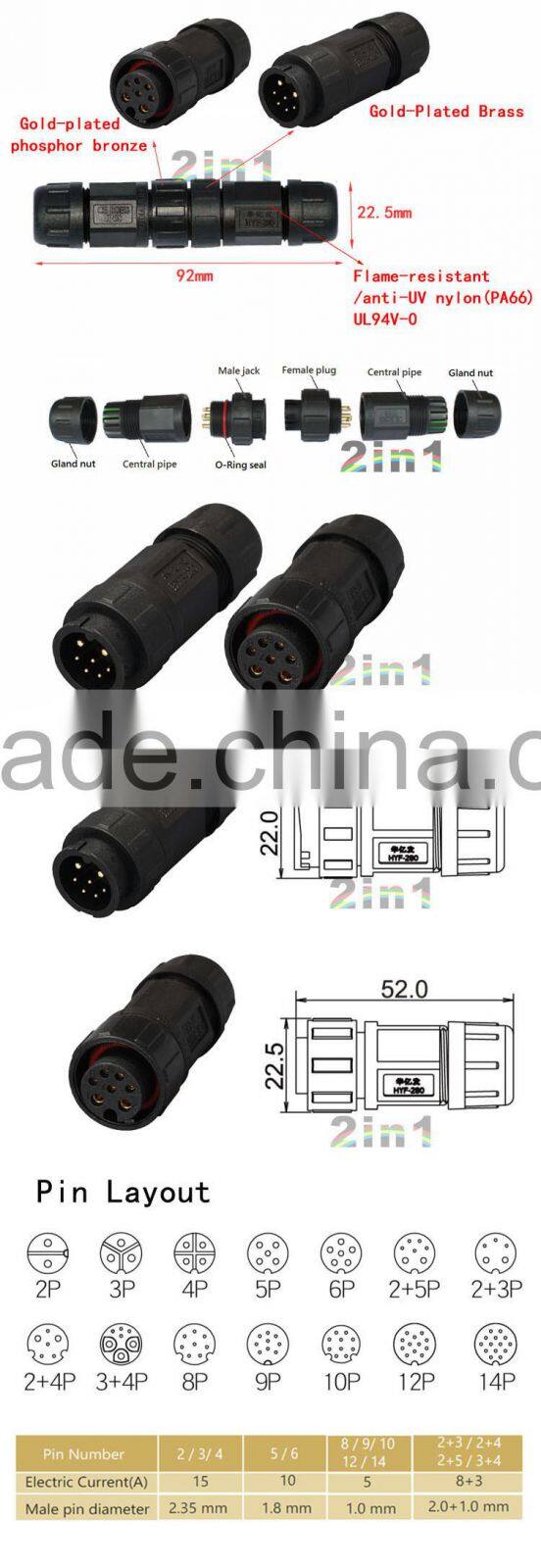

IP67 Soldering Waterproof Electrical Wiring Connector | ||
Model No. | SK19-2+5P | |
Material Description | Shell material | Flame-resistant /anti-UV nylon(PA66)UL94V-0 |
Pin | Gold-plated brass | |
Jack | Gold-plated phosphor bronze | |
Seal – O - Ring | Silicon | |
Times of plug / unplug | Above 3000 times | |
ROHSEnvironmental Protection Material According toULStandard | ||
Performance | Contact resistance | 5 MΩ |
Dielectric resistance | 500 MΩ at DC500V | |
Pin diameter | 2.0+1.0 mm | |
Cable OD Rating | OD ≤12.0mm | |
Contact us:
Packaging &Delivery:
Shipping: We could offer various shipping solutions for your choice, competive express freight such as DHL/ FedEx/ UPS...
As for Mass Orders, a quote of ocean shipping would be provided too if required.
Certification:
Our Company:
Shenzhen 2in1 Technology Co., Ltd is a leading waterproof connector manufacturer in China with over 7 years' experience in waterproof connector filed, specialized in the research, manufacture, and sale of a wide variety of waterproof connector. You have the best choice at here.
FAQ:
1.Q:Are you a factory or trading company?
A: We are a factory. Located in 6F,Luowuwei First Industrial Zone, Dalang Street, Longhua New District
2.Q:How to buy your products?
A:You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style ( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
3.Q:How can i get samples?
A: It's my honor to offer you samples, but we can only give you three for free, and the freight should be paied by yourself.
4.Q:How many materials you can provide?
A:There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/PU/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
5.Q:How does your factory do regarding quality control?
A:Quality is priority. 2in1 people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained TUV Certification and ISO9001.
Welcome to contact us for more details ,most competitive price for you!
