Specifications

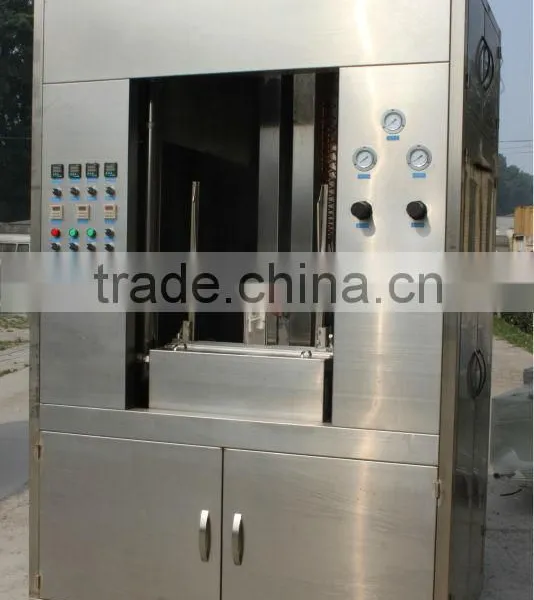

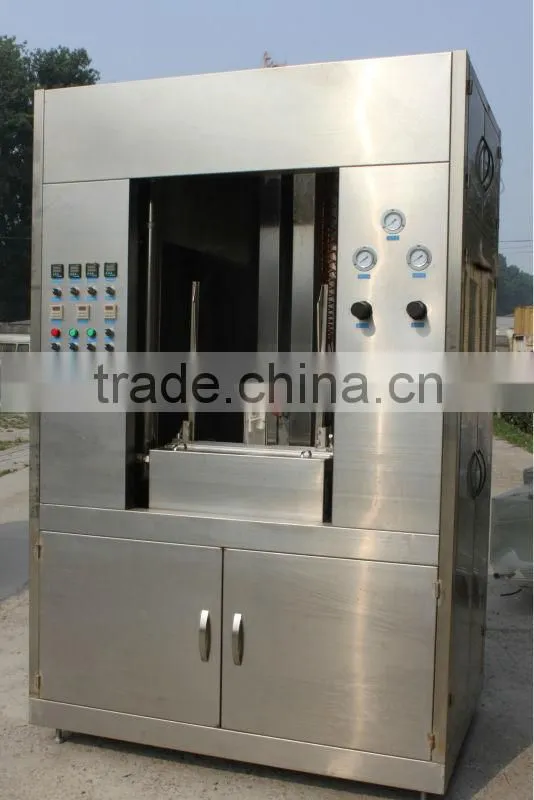

Solder tin coating machine is applied in circuit boards,hot air leveling and wave soldering,welding and hot dip tin soldering.Solder Tin Coating Machine for printed circuit board
Feature:
1,Automatic temperature control system,automatic display;
2,Automatic pressure control system,not get fixed pressure,each work can't start;
3,The adjusting range of rising/falling speed and pressure is big,high efficiency;
4,Substrate Tin coating is uniform;
5,Install emergency stop button.
Specifications:
Max board Size: | 610×540×6mm |
Produce Capacity | 250~300 pieces /hour |
Tin Tank Capacity | 240kg |
bleed Pressure | 8kg |
Air knife Pressure | 5kg/square cm(adjustable) |
Working temperature | 230-280°C(adjustable) |
Hot Wind Temperature | 150-260°C(adjustable) |
Dip Tin time | 0-20 second(adjustable) |
Trim time | 0-20 second(adjustable) |
Power Supply | A.C238V.50HZ/36KW |
Dimension | 1550×800×2100mm |
Machine Structure
1,Machine body and Tin tank is made by Japan Cr18Ne9Ti stainless steel material.
2,Air knife: 2 units for up and down;with non-scaling steel, resist high temperature;
3,Heater: Silicon Carbide far infrared platen heater, 8 pieces, 2.5KW/Piece;
4,Agitate pump: Stainless steel material,1 set;
5,High quality of all the electrical apparatus element,long service life.
Service:
1.Customized design is available.
2.Master operator training program for free.
3.Reasonable and negotiable price,short lead time.
