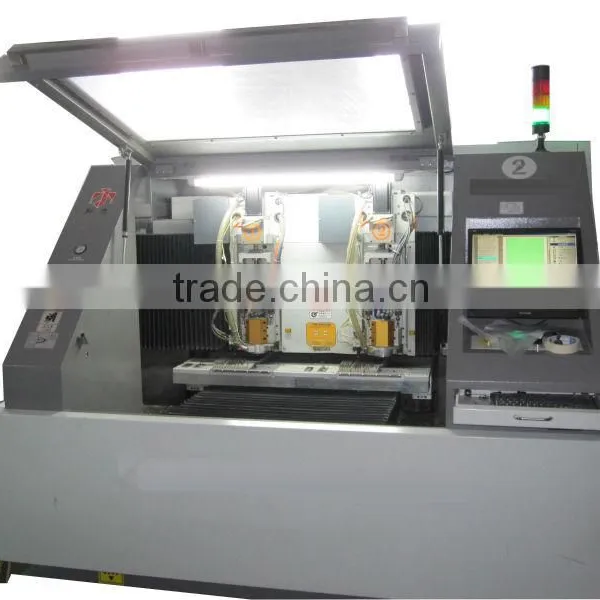

High Speed CNC Drilling Machine
- 20 Set / Sets per Month
- XINGANG(TIANJIN)
- Credit Card
Product Details
Place of Origin: | Beijing, China | Brand Name: | Golden Eagle | Model Number: | D650 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
It is applied in PCB drilling process--before plug-in,drill a hole by this machine to let electronic elements can be inserted.High Speed CNC Drilling Machine
It is applied in PCB board drilling process----before plug-in,drill a hole by this machine to let electronic elements can be inserted,or to make breakover of every circuit layer.
Specifications
Working Table | 550mm×670mm |
Axis positioning table | 560×840×60mm |
X,Y axis positioning feed | 40m/min |
Z axis locomotion feed | 30m/min |
X,Y axis acceleration | 1.2g |
Z axis acceleration | 3g |
Min.drill diameter | Φ0.10mm |
Max.drill diameter | Φ6.35mm |
Fixed workpiece | Φ3.175mm |
Positional precision | 0.005mm |
Repeat positional Precision | 0.002mm |
Holes per time | 2 |
Tool changer number | 250 PCS |
Compressed air pressure | 6.5bar-7bar |
Max speed of spindle optional | 160krpm |
Power supply | 380V/50/60Hz/5KW |
CNC type | Sieb&Meyer CNC 84.00 |
Air flux | 200 L/min |
Dimension | 2100×2020×1820mm |
Weight | 4500kg |
After sales service
1.Customized design is available.
2.Master operator training program for free.
3.Reasonable and negotiable price,short lead time.

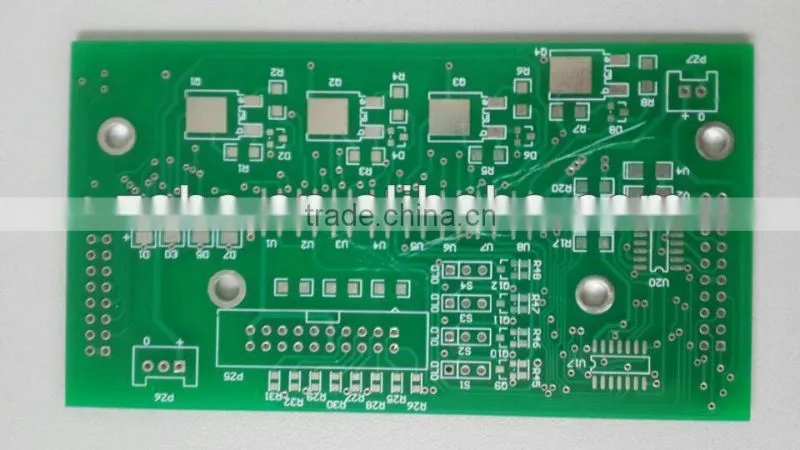

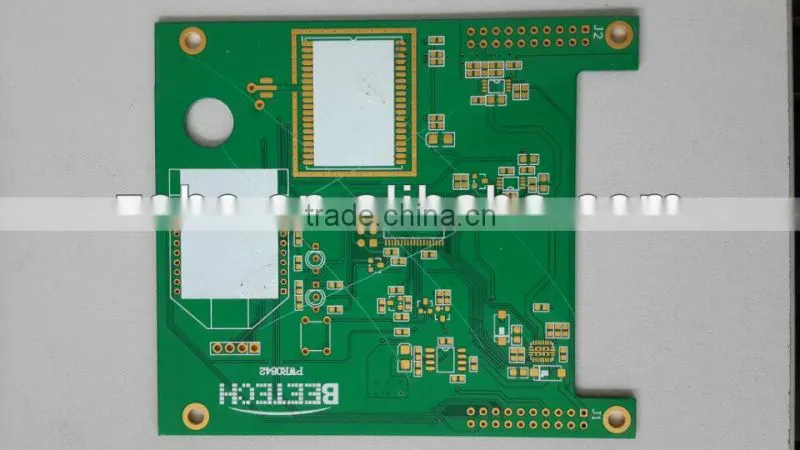

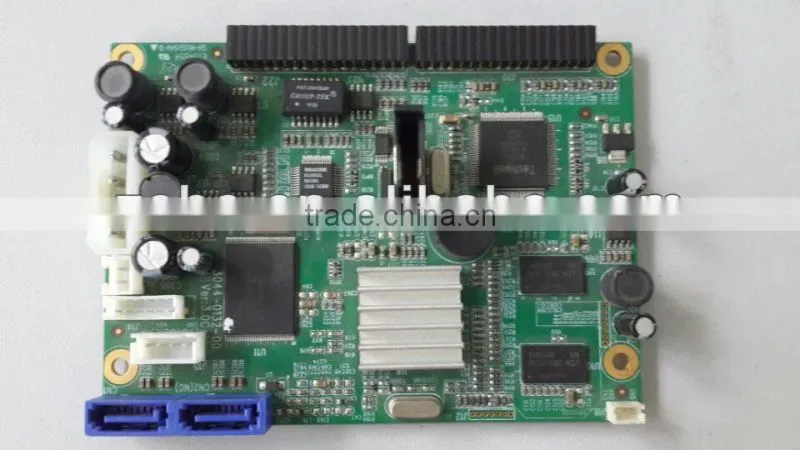

Samples
Packing and Transport
Certificate
FAQ
1.Q:Are you trading company or a factory?
A: We are manufactory and We have import and export License.
2.Q:Where is your factory ?How Can I visit there?
A: Our factory is located in Beijing,the capital of China,Warmly welcome to visit us.
3.Q:How can I get some samples ?
A:It's our honor to offer you samples,please contact us anytime !
4.Q: How does your factory do regarding quality control ?
A: Quality is priority.We focus on quality control from raw material to package.
5.Q:Why us ?
A: 1. 20 years machine manufacture experiences !
2. 4 years good credit supplier on alibaba.
3. satisfaction or we'll refund or rerun-your choice
4. Etching technology can be provided for free to our customer by our well-trained and professional engineers and staffs.
