Specifications
Hot stamping dies etching machine for plasticHigh precision,easy to Operate
Rotating and angle-swing structure
Hot stamping dies etching machine for plastic GE-TB3040

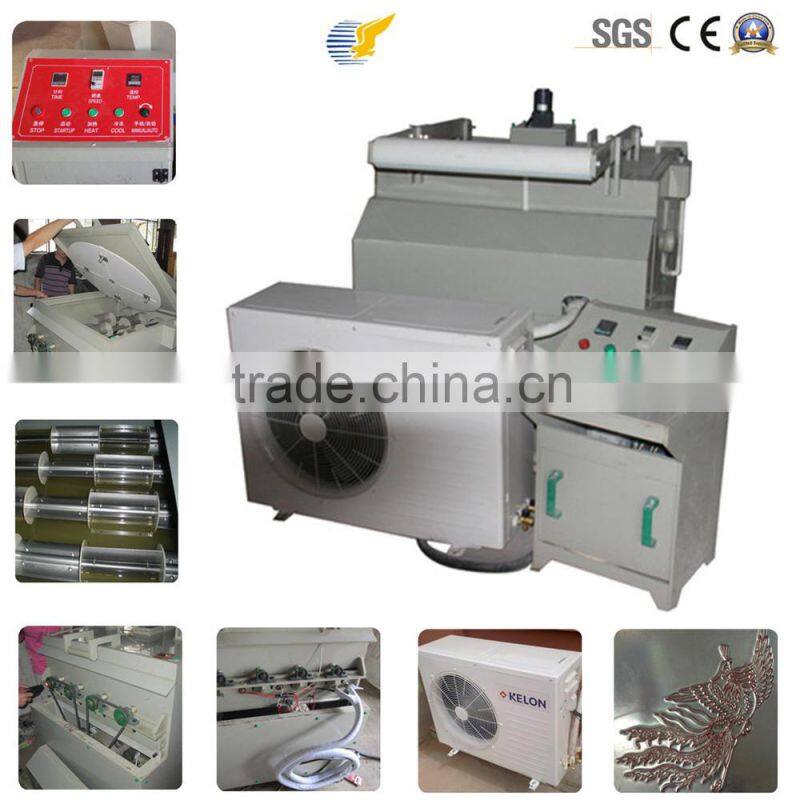

Machine picture:
Specifications:
1. Etching machine for magnesium, copper,zinc
2. high precision,ease of Operation
3. rotating and angle-swing structure

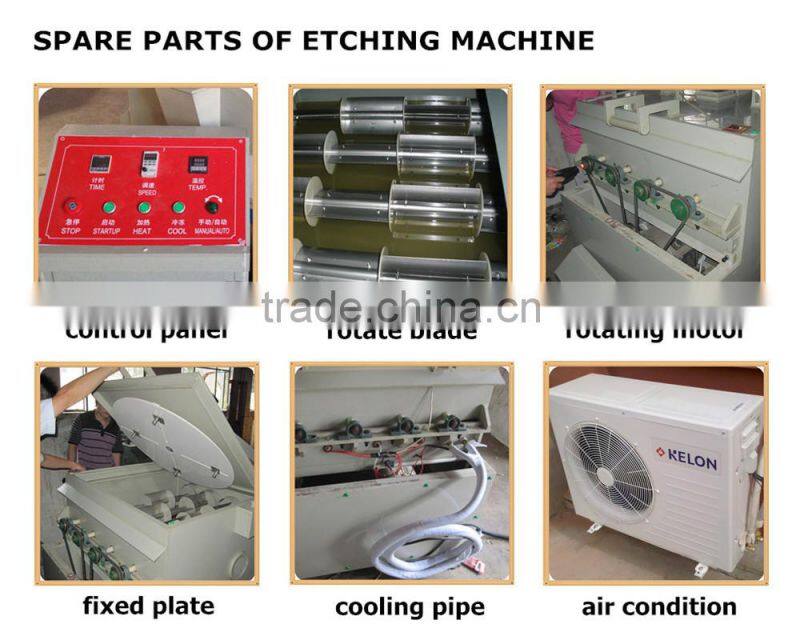

Machine details:
Power | 4.5KW/220V |
Working Size | 300*400mm |
Working Temperature | About 22~30°C |
Heat System | Titanium,1KW |
Cool System | KELON Air Conditioner,2P |
Cooling pipe Diameter | Titanium Pipe |
Machine body material | 15mm PP plate |
Spindle | Titanium (4PCS) |
Tank Volume | 40L |
Machine Size | 1100*800*1300mm |
Weight | About 350kgs |
Automatic Control System
l Speed adjust system l Etching times Control System l Temperature control system l High temperatures resist (0~100°C)PP material |
Introduction
This etching machine can make copper, zinc or magnesium block, it is used for printing industry. The etching system is rotating and angle-swing structure, so we can get the slope of etched edge. |
Features:
1. This etching machine is rotating and angle-swing structure,can get good slope of etched edge.

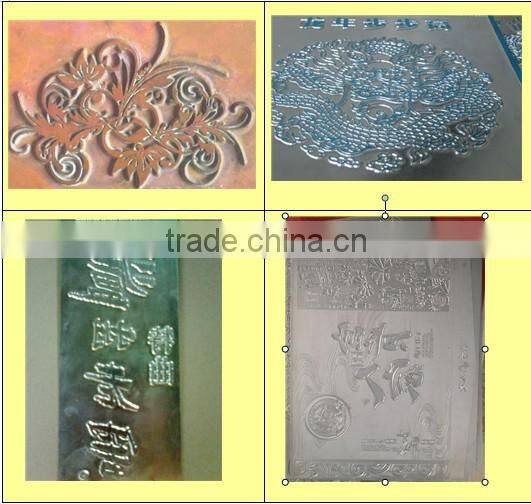

2. This etching machine can make magnesium,zinc or copper block for hot foil stamping dies.
3. Different material need different chemical,nitric acid for zinc or magnesium,ferric chloride for copper.
4. Our factory can also supply raw metal plate and chemical for customer.
5. Our factory supply technical training for making copper,zinc or magnesium.
6. Customer can choose any size as Max metal plate size,as follows,
Model | TB3040 | TB4050 | TB5060 | TB7090 |
Tank Volume | 40L | 40L | 60L | 80L |
Working size | 300*400mm | 400*500mm | 500*600mm | 700*900mm |
Note: Customer can order any size as Max metal plate size. | ||||
