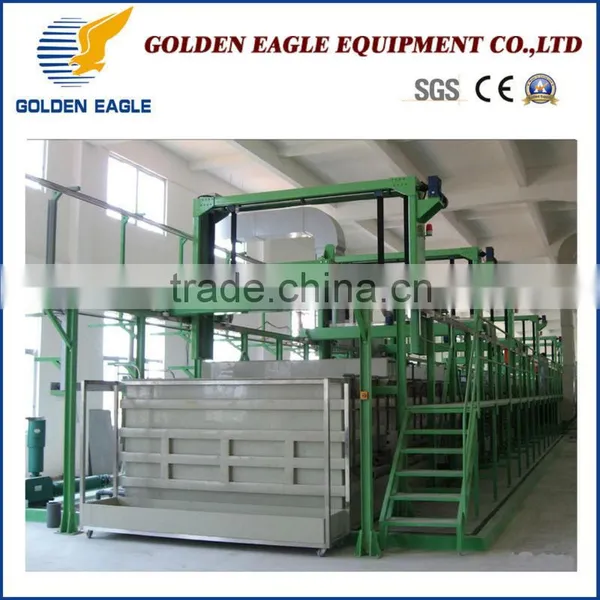

Full Automatic Gantry electroplating machine
Introduction:
Plastic plating widely used in automotive trim,mobile decorative plate and decorative metal signs,mainly used in plating ABS,PC plastic products.
Plating Bath | Process | Time(min) | Temperature(℃) | Heating power |
1 | Loading station(auto chemical dosing) |
|
| |
2 | Chemical degreasing | 15-30 | 50-60 | 12kW |
3 | Rinse | 2-5 | Room temperature |
|
4 | Pickling(HCL &H2SO4) | 10-20 | Room temperature |
|
5 | Rinse | 2-5 | Room temperature |
|
6 | Electro Chemical degreasing | 3-5 | 50-60 | 12kW |
7 | Rinse | 2-5 | Room temperature |
|
8 | Pickling (HCL &H2SO4) | 1-2 | Room temperature |
|
9 | Rinse | 0.5-1 | Room temperature |
|
10 | Zinc1 | 20-60 | 25 | Cooling |
11 | Zinc2 | 20-60 | 25 | Cooling |
12 | Recycle | 2-5 | Room temperature |
|
13 | Rinse | 2-5 | Room temperature |
|
14 | Illumination in HNO3 | 1-2 | Room temperature |
|
15 | Rinse | 2-5 | Room temperature |
|
16 | Passivation
| 20-30sec | 30 | 9kW |
17 | Rinse | 2-5 | Room temperature |
|
18 | Load off |
|
|
|
| Hot Air dryer | 2sets |
| 6kW |

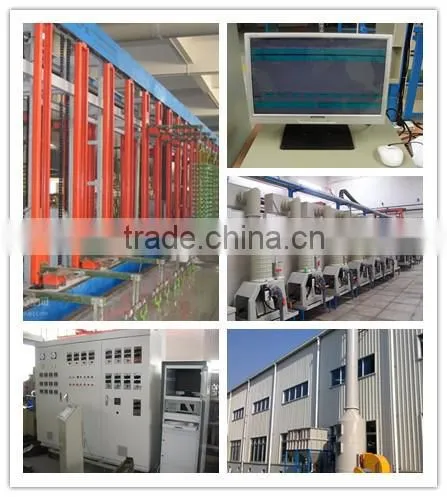

Plating Machine Configuration:
- Electrical Control system including PLC and Touch monitor;
- Crane designed according to your workpiece weight and quantity
- Machine Frame designed according to your plating process and bath quantity
- Plating bath designed according to your plating process and workpiece quantity and size.
- Ventilating system
- Pipes system
- Heating system and cooling system
- Peripheral equipment including rectifier, filter machine, acid god clean tower, waste water and waste gas treatment equipment.
Any plating machine is designed and offered according to your requirement,Please contact with us with details information required as below:
- What is your workpiece material,size,photo?
- What kind of coating will you like to be plated?
- What is the production capacity everyday?
- What is your required plating process?
- What is your factory layout?
