Specifications

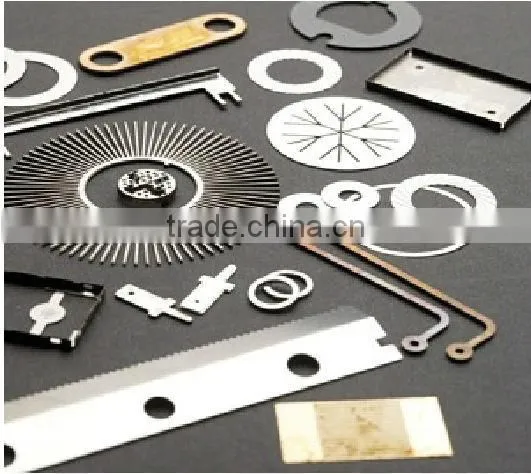

This etching machine can make precison metal parts,steel mesh,metal tag,Gasket,Washer,electron component,Metal Filter etc.Automatic Stainless Steel Etching Machine
Parameters:
Power |
38.5KW/380V/50HZ |
Working width |
1350mm or 1500mm |
Etching system |
Spraying & Swing system |
Heat System |
3KW Titanium * 5pcs |
Etching pump |
4KW*3pcs |
Stripping Pump |
5.5KW*2 pcs |
Working Speed |
0.5~6.5 M/Min (adjust) |
Machine Size |
20550*2250*1850mm |
Weight |
About 8000 kgs |
Automatic Control System
|
l Speed and Pressure Adjust System l Net Filter System l Temperature control system l High temperature (up to 100°C) resist German PP material |
Process
Load (3meter) - etching (3meter) - micro etching (1meter )- washing (1.5meter) - checking (3meter) - stripping (2meter) - washing (1.5meter) - unload (3meter) |
Introduction
|
1.This etching / stripping Line use acid etching solution to get any patterns on the metal surface. Install oscillate system to get perfect etching quality. 2.Products can be decorative stainless steel plate,huge aluminum plate, elevator door, huge name plate etc. 3.Materials can be Iron, Stainless steel, Copper, Brass, Aluminum, titanium etc. 4.Metal plate thickness is approx 0.6~1.0mm,the etching depth is 0.06~0.08mm. |

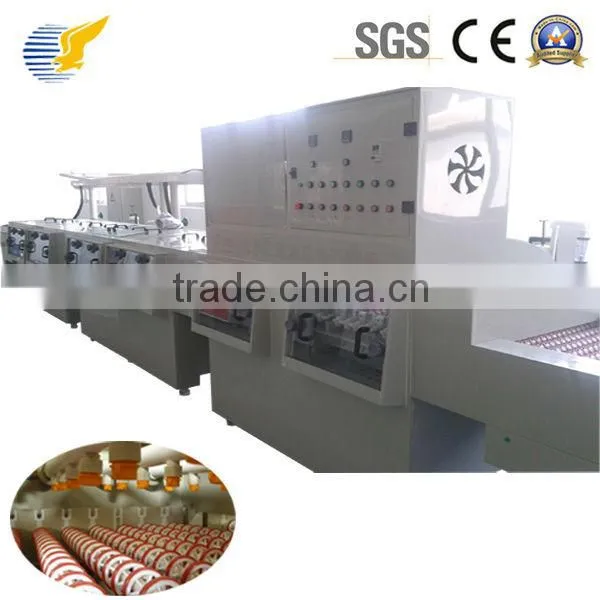

Machine:

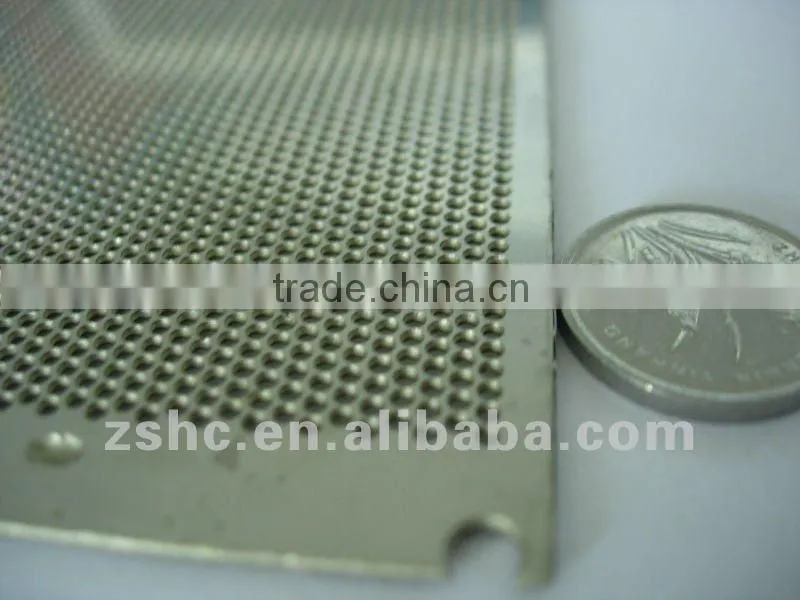

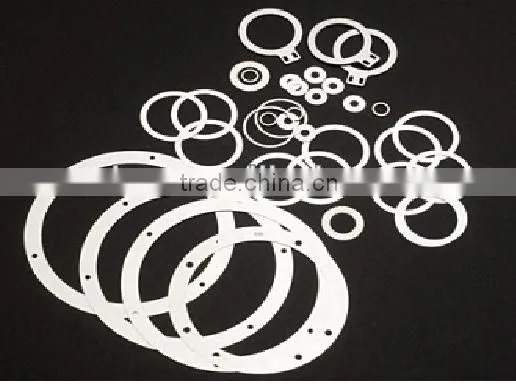

Products of the etching line:
Service:
1.Customized.
2.Free training.
3.Reasonable and negotiable price, short lead time.
Packing and Transport
Certificate:
FAQ:
1.Q:Are you trading company or a factory?
A: We are manufactory and We have import and export License.
2.Q:Where is your factory ?How Can I visit there?
A: Our factory is located in Beijing,the capital of China,Warmly welcome to visit us.
3.Q:How can I get some samples ?
A:It's our honor to offer you samples,please contact us anytime !
4.Q: How does your factory do regarding quality control ?
A: Quality is priority.We focus on quality control from raw material to package.
5.Q:Why us ?
A: 1. 20 years machine manufacture experiences !
2. 4 years good credit supplier on alibaba.
3. satisfaction or we'll refund or rerun-your choice
4. Etching technology can be provided for free to our customer by our well-trained and professional engineers and staffs.
