Sliding Gate Opener,sliding Gate Operator,sliding Gate Motor,sliding Door Operator,sliding Door Opener,sliding Door Motor
US$ 1 - 150
MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ETDOOR
Model Number:
ET-S500/S800
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sliding Gate Opener,sliding Gate Operator,sliding Gate Motor,sliding Door Operator,sliding Door OpenerETS500/800US$ 1 - 150MOQ: 100 Sets -
Sliding Gate Opener/operator/motor,sliding Door Operator,sliding Door OpenerETS500/800US$ 1 - 150MOQ: 100 Sets
-
Sliding Gate Opener,operator,motor,sliding Door Operator,sliding Door OpenerETS500/800US$ 1 - 150MOQ: 50 Sets
-
Auto Sliding Gate Operator,automatic Sliding Door Operator,remote Control Sliding Gate OpenerUS$ 1 - 150MOQ: 50 Sets
-
Auto Sliding Gate Operator,sliding Gate Operator,remote Control Sliding Gate OpenerUS$ 1 - 150MOQ: 50 Sets
Place of Origin
Jiangsu, China
Brand Name
ETDOOR
Model Number
ET-S500/S800
Specifications
ETS500 500kgsETS800 800kgs
Aluminium alloy housing,electronic travel limit
Designed in EU.
ABOUT US

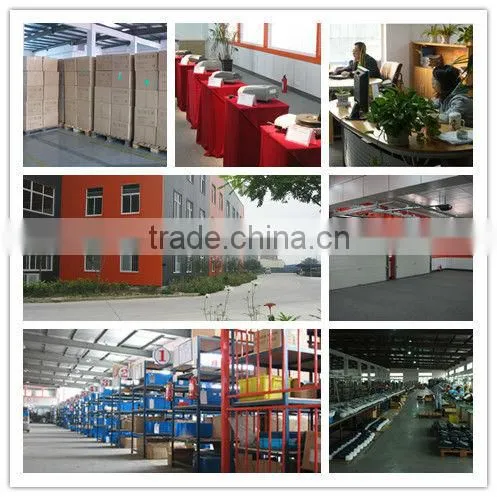

Operating since 1998,we ETDOOR,are a fast growing company specialized in the production of door openers,door components and full set of sectional doors.We have exported our products to over 30 different countries,mainly in EU market.All of our products are in compliance with CE standards.
With more than 10 years' experience and our enthusiastic,industrious work teams,we are now able to provide a wide range of products and solutions to make home-access more convenient along with security.
| Sliding Gate Operator Technical Features: | ||
| Model | ETS500 | ETS800 |
| Weight of sliding gate | 500KG | 800KG |
| Input power | 200~240V/50~60Hz | 200~240V/50~60Hz |
| Motor | 24V DC | 24V DC |
| Rated power | 150W | 180W |
| Rated push and pull force | 210N | 260N |
| Max. push and pull force | 500N | 800N |
| Rated output torque | 7NM | 10NM |
| Max. output torque | 14NM | 22NM |
| Travel speed | 150mm/sec | 150mm/sec |
| Singal light interface | one group | one group |
| Opening edge safety device connection | one group | one group |
| Closing edge safety devic econnection | one group | one group |
| Security switch connection | one group | one group |
| Infrared beam connection | one group | one group |
| O-S-C button connection | one group | one group |
| Soft start/soft sotp | Yes | Yes |
| Auto reverse | Yes | Yes |
| Transmitter frequency | 433.92MHz | 433.92MHz |
| Opening width | 10M | 10M |
| Backup battery | optional | optional |
| Coding format | Rolling code | Rolling code |
| Receive type | ASK | ASK |
| Protection category for motor unit | IP44 | IP44 |
| Protection class | II | II |
