Plastic Blow Molding Machine
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | Apollo | Model Number | ABLB90II |
Product Description
Specifications
Automatic blow molding machineDouble station and single die
Max volume 20L
Adopt Japan&Taiwan technology
CE proved

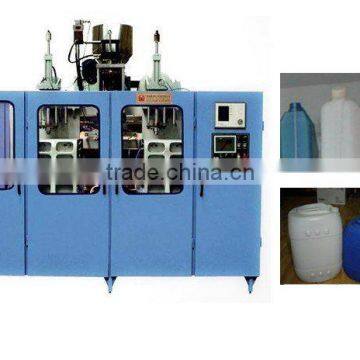

4 gallon bottle blow molding machine
Model No.: ABLB90 (Double station single die head)
ABLB90 4 gallon bottle blow molding machine was specially designed for making plastic water gallons, lubricant oil bottles, tool boxes, plastic drums, and other plastic containers not over 20L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available, the max. product volume is up to 20L.
(2)Double station single die head design,Stable and efficient.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Full automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available,can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
(8)Special screw cut device available
Main parts of Machine | Picture | Explanation |
Oil Pump |
|
Oil pump From Japan YUKEN driving the machine |
Template and MOULD | |
Mould with auto-deflashing unit |
Computer control system (PLC) | |
Japanese Mitisubishi PLC
Used to control all electrial components and touch screen |
Parison controllor | |
MOOG parison Controllor Control the thickness of products |
Screw cutter device | |
This device is able to remove the extra top of gallons
|
PP bottles making | |
Auto-deflashing and screw cutting Technology make the product perfect |
Electric Cabinet | |
This part is the full electric components of the machine |
Technical Parameters: ( ABLB90)
Max. Product volume | 20 liters |
Out put capacity | 110~140pc/h |
Screw diameter | 90mm |
Screw L/D ratio | 24 L/D |
Screw drive power | 45KW |
Screw heating capacity | 8 KW |
No.of heating zone | 4 zones |
Output of HDPE | 128KG/H |
Oil pump drive power | 11 KW |
Clamping force | 108KN |
Max.size of mold | 240-660mm |
Mold stroke | 530 X 550mm |
Max.die diameter | 180mm |
Blowing pressure | 0.6 mpa |
Air Volume | 0.9 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 90 L/MIN |
Size of Machine | 4.2x3x3.1m |
Weight of machine | 11ton |
