PVC Window Machine
Model:SJ02-3500:
1).This machine is used for processing the PVC/UPVC/plastic/Vinyl profiles at angles of -45º ~90º ~45º. the swaying stable feeder is adopted, and the pneumatic driving system is used in profiles clamping and cutting. (It can process the aluminum profile, but only can cut very thin aluminum profile,so here this model usually mainly to cut the PVC/UPVC/Plastic /VInyl profile,if you want to cut both Aluminum and PVC profile, you can choose our model LJZ2-450*3700, model LJZB-500*4200, model LJZY-500*4200, model LJZ-CNC-500*4200.)
If your PVC profile is more than 105mm thickness, for example,your profile is 115mm, you should consider to buy the model LJZ2-450*3700 is better for cutting your PVC profile.
2).It has the features of easy operation and high accuracy.
3).This cutting saw can make about 25-35 windows per day in 8 working hours. If you extend the working time, the production output will be more.
4).We can make the machine according to your true local power supply.
3).Parts brand:
------Button and contactor: Schneider
-----Linear guide:ABBA,TAIWAN
-----SAW Blade:WAGEN,JAPAN
Technical parameters:
Model number |
SJ02-3500 |
Working Air Pressure |
0.4~0.6 Mpa |
Air consumption |
100L/min |
Power supply |
380V 50Hz |
Input power |
2×1.1kw |
Blade rotational speed |
3200 r/min |
Double cutting length |
450~3500mm |
Cutting thickness |
≤105mm |
Cutting width |
≤120mm |
Contour dimension |
4000×1120×1450mm |
Machine weight(about) |
620kg |

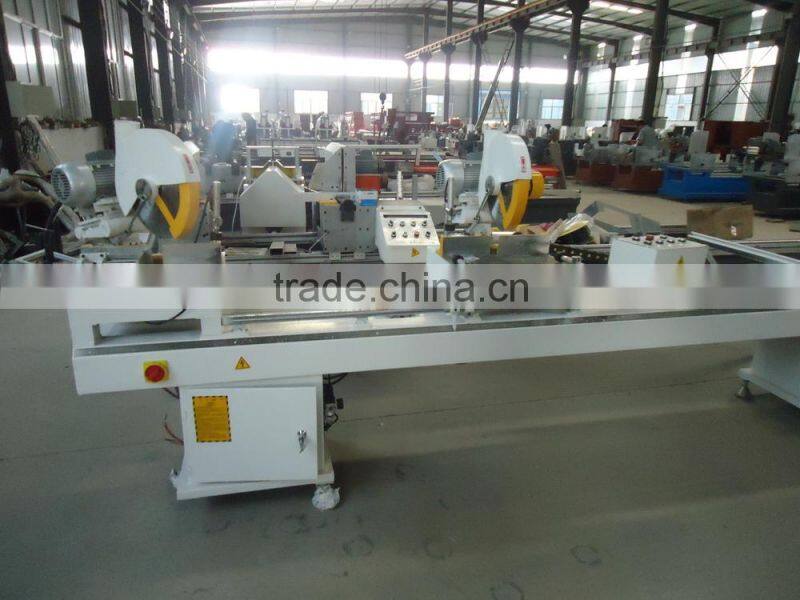

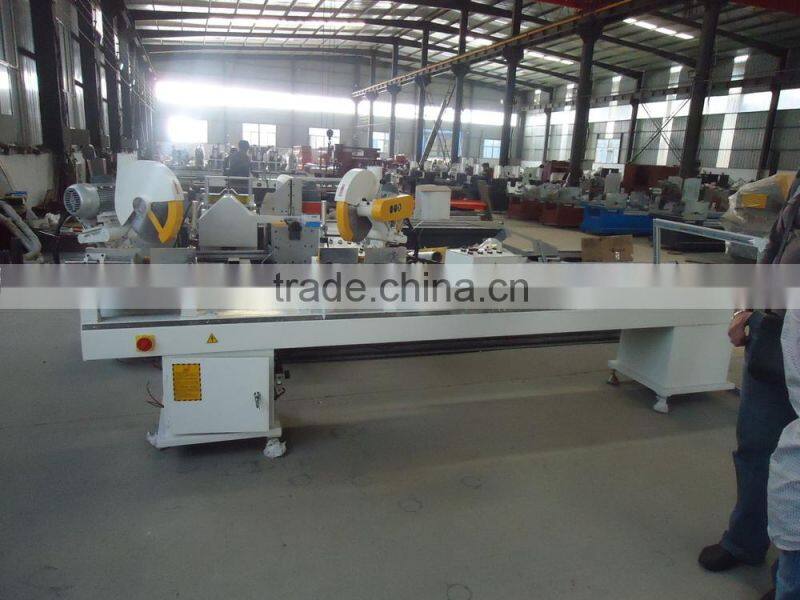

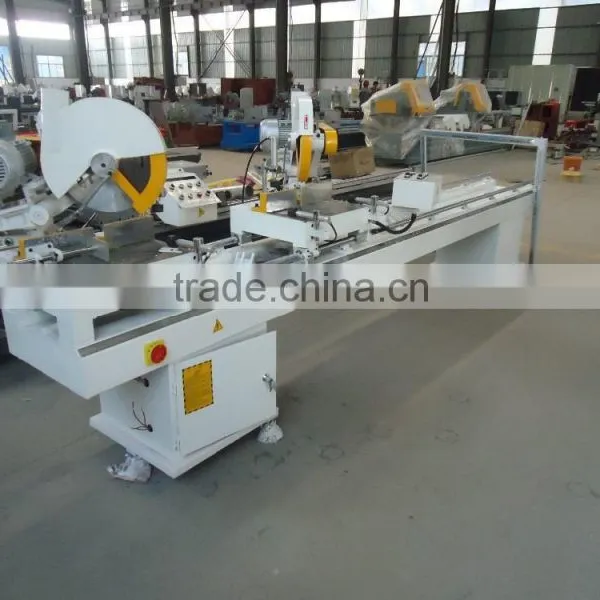

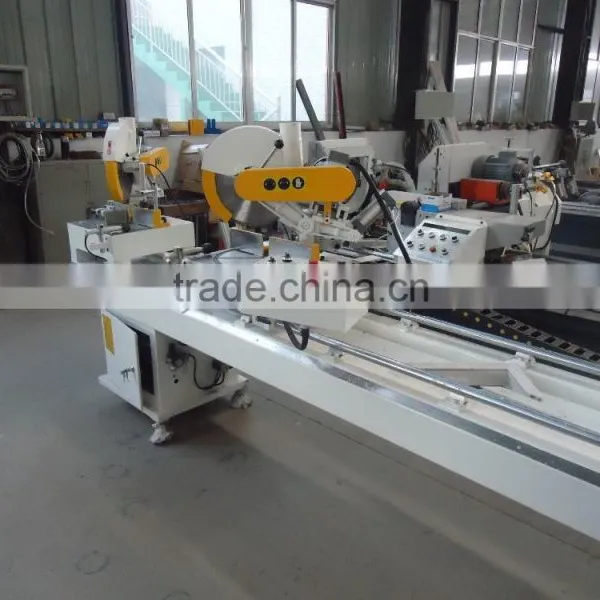

Double head cutting saw:
Jinan better machinery Company Limited :
certification:
contact information:
after sale service:
1). We will provide all spare parts needed for maintenance of the equipments.
2). During the period of guarantee, within 2 years (24 months), the seller we will be responsible for the damage due to the defects in designing and manufacturing.
3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you
CONTACT US :please feel free to contact us. if you are interested in any of our product we are willing to provide our excellent service .... here is our site:
/
