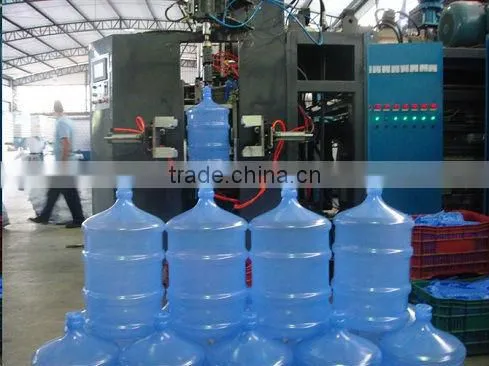

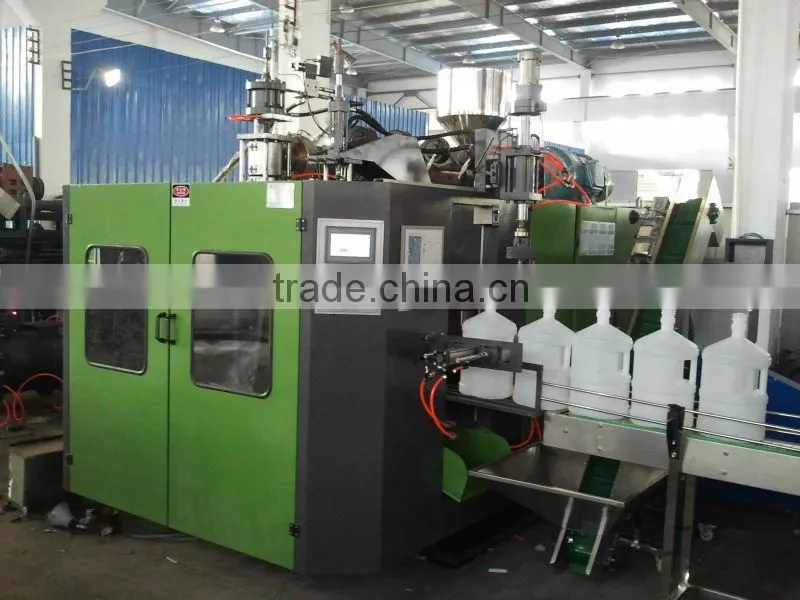

5 Gallon Water Bottle Blow Molding Machine/china Supplier Plastic Blow Molding Machine
US$ 19,800 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Plates
Plastic Processed:
Other, PP,PE,ABS,PVC,PC
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chinese Plastic Brums Barrels Tool Cabinet Blow Molding MachineNegotiableMOQ: 1 Set -
Chinese Plastic Brums Barrels Tool Cabinet Making MachineNegotiableMOQ: 1 Set
-
Chinese 15L 20L 30L Plastic Brums Barrels Tool Cabinet Making MachineNegotiableMOQ: 1 Set
-
20L 25L Gallon PC Bottles Barrels Blow Molding MachineNegotiableMOQ: 1 Set
-
Full Automactic 5 Gallon PC Bottle MachineUS$ 72,000 - 80,000MOQ: 1 Set
Condition
New
Application
Plates
Plastic Processed
Other, PP,PE,ABS,PVC,PC
Screw Design
Single-screw
Automatic Grade
automatic
Place of Origin
Jiangsu, China
Brand Name
china supplier plastic blow molding machine
Model Number
china supplier plastic blow molding machine
Voltage
three phrase 220v or 380v
Power(W)
64kw
Dimension(L*W*H)
4.4*2.6*3.1m
Weight
9.3ton
Certification
CE, ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
plastic blow molding machinehigh quality water extruding machine
deflashing device available
china supplier plastic blow molding machine
Max. Product volume |
20 liters |
Output capacity |
1680~1820pc/day |
Screw diameter |
90mm |
Screw L/D ratio |
25 L/D |
Screw drive power |
37KW |
Screw heating capacity |
18 KW |
No.of heating zone |
4 zones |
Output of HDPE |
130KG/H |
Oil pump drive power |
30 KW |
Clamping force |
260 KN |
Max.size of mold |
450-1000mm |
Mold stroke |
700 X 950mm |
Max.die diameter |
340mm |
Blowing pressure |
0.8 mpa |
Air Volume |
1 M³/MIN |
Cooling water pressure |
0.3mpa |
Water consumption |
90 L/MIN |
Size of Machine |
4.4x2.6x3.1m |
Weight of machine |
9.3ton |
