Specifications
Edge Grinding Machinecess straight edge of flat glass with arris,coarse grind
2.Mitering angle:45,90
3.CE

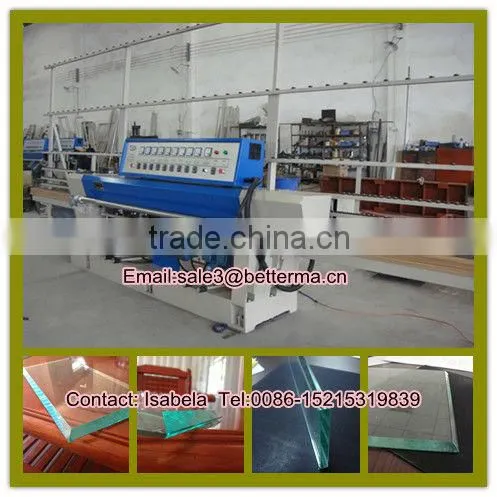

Glass 45 Degree and Flat Edge Grinding Machine (RTJM93P)
Glass edge finish machine/Glass line edging machine/Glass edge grind machine
1.Brief description
RTJM glass straight line miter edging machine is specialized machine for processing the straight edge of flat glass with arris,coarse grinding, fine grinding and polishing have been done in one processing travel, manual and automatic operation is at customer’s option, as well as for legend of grinding wheels.
2.Main technical parameters
1. Power: 380V / 50Hz
2. Inputting speed: 0.8~5.0m / min
3. Max. glass size: 2500×2500mm
4. Min. glass size: 80×80mm
5. Glass thickness: 3~25mm
6. Mitering angle: 45° and 90°
7. Total power: 18.5KW
8. Overall dimension: 6800×1000×2500mm
9. Machine cast-iron base size: 2840x720mm
10. Legend of grinding wheels:
Legend of grinding wheels for 45° angle
3.CONFIGURATION
1. The foundation, transmission box and fro-back beams are of casting materials.
2. The transmission system is adopted of mechanical stepless reducer, double spiral speed reducer, as well as sleeve-type chain of automatic gear.
3. The movement of front beam and grinding spindles are adopted of lead screw driving, and dovetail slider are adopted for supporting and positioning.
4. Front-and-rear pressure pads are adopted of high-intensity plastic material.
5. Rack is made of steel pipes.
6. The conveying belt is of chain constructure.
7. PLC control, with HMI interface operation.
8. Electronics:
4. Glass product samples
1). 45 angle smaple
2).Straight angle sample
