Help CenterMade in China Hot Sale High Quality Blow Moulding Machine Price
Related Products
-
HDPE Plastic Bottle Making Machine/plastic Jerry Can Production Blow Molding MachineUS$ 5,000 - 9,000MOQ: 1 Set -
Made in China Hdpe Bottle Making MachineUS$ 25,000 - 40,000MOQ: 1 Set
-
Made in China Small Extrusion Blow Molding MachineUS$ 25,000 - 40,000MOQ: 1 Set
-
Extrusion Blow Molding MachineUS$ 25,000 - 40,000MOQ: 1 Set
-
China 220Liter Plastic Drum Blow Molding MachineUS$ 900,000 - 1,200,000MOQ: 1 Set
Specifications
blow moulding machine price1 year warranty
deflashing device
competitive price
blow moulding machine price
more details of the machine:
Max. Product volume |
220 liters |
Output capacities |
18~25 pcs/h |
Screw diameter |
120mm |
Screw L/D ratio |
33 L/D |
Screw drive power |
145 KW |
Screw heating capacity |
30 KW |
No.of heating zone |
5 zones |
Output of HDPE |
250 KG/H |
Oil pump drive power |
30 KW |
Clamping force |
900 KN |
Max.size of mold |
1000X1600mm |
Mold stroke |
880-1700mm |
Max.die diameter |
520mm |
Die heating power |
12 KW |
Die heating segments |
5 zones |
Blowing pressure |
0.8mpa |
Air volume |
1.6 M³/MIN |
Cooling water pressure |
0.3mpa |
Water consumption |
180 L/MIN |
package and deliver details
Certifications
some pics about the fair we have been abroad

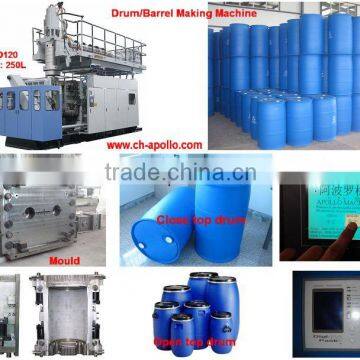

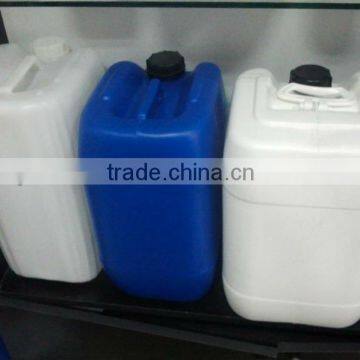

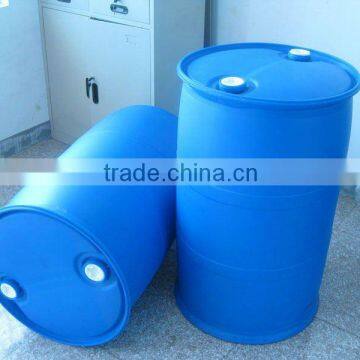

ABLD120 automatic blow moulding machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 220L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the duct volume is up to 160L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Accumulation die head,MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
