Help CenterDouble Glazing Glass Machinery-Vertical Insulating Glass Production Line (Plate Press) (Model LB1800P)
Related Products
-
Insulating Glass Aerator / Insulating Glass Machine Production LineUS$ 1,200 - 1,500MOQ: 1 Set -
Insulating Glass Aerator / Insulating Glass Making MachineUS$ 1,200 - 1,500MOQ: 1 Set
-
Two Component Sealant Extruder /polysulfide Rubber Extruder Machine/double Glass Silicon Sealant Glue Extruder (ST01)US$ 4,200 - 4,300MOQ: 1 Set
-
LB1600G Vertical Semi-automatic Double Glass Produce Line (roller Press)US$ 9,300 - 9,500MOQ: 1 Set
-
Insulating Glass Production Line /Insulating Glass Sealing MachineUS$ 13,000 - 18,000MOQ: 1 Set
Specifications
Double Glazing Glass Machineryduction slot-alu insulating glass
2.PLC control
3.vertical type
Double Glazing Glass Machinery-Vertical Insulating Glass Production Line (Plate Press) (Model LB1800P)
Vertical Insulating Glass Automatic Flat Press Produce Line
1.Product Description
1).The line is special equipment making aluminum groove type insulating glass, which consist of a vertical glass washing machine, a setting aluminum frames, one on one by flat press and a turning table.
2).It can perform main functions such as washing and drying of insulating glass, positioning of aluminum frames, automatic one on one by flat press, setting level and shifting out of insulating glass and so on in the process of making aluminum groove type insulating glass.
3).This line is high in efficiency, low in energy consumption, compact in structure and easy to operate.
4).Features:
A. Washing part is with 3 pairs(6 pieces) washing brushes. Three pair of brushes is well known for its fine quality and durable in use. They can wash Low-E glass.
B. Automatically distinguish the coating side of coated glass and Low-E glass.
C. Adopt waterproof bearing without oil lubricant.
D. The washing body adopts stainless steel and anti-rusting materials.
E. The PLC and other electric elements adopt OMRON brand, import from Japan.
5).It can process the common glass, coated glass,low-E glass,etc..
6).We have models LB1600P,LB1800P,LB2200P,LB2500P, here the model LB1800P is the common model for the max.glass size is 2500*1800mm(Length*Height), if your glass ma.size is smaller or larger than the model LB1800P, you can choose other models according to your true glass size.
2.Technical parameters
Model number |
LB1800P |
Power voltage |
380V/50Hz |
Total power |
23.07Kw |
Min glass size(L*H) |
400*200mm |
Max glass size(L*H) |
2500*1800mm |
Max.Insulating glass thickness |
50mm |
Max. thickness of insulating glass |
3mm-25mm |
Working speed |
Max. in washing section 12m/min |
Max. in accelerator 48m/min | |
Brush |
3pairs (LOW-E) |
Overall dimensions |
15300×2200×2800mm |
Net weight |
6000kg |
3.All Insulating glass production line models
4.Insulating glass/double glass/hollow glass good advantages
1).sound insulation, noise reduction
2).keep warm
3).dust prevention
4).reduce thermal radiation
5.Detailed photos
6.Insulating glass production line Features
7.Machine in our oversea customer workshop
8. Related insualating glass processing flow chart
1).If your factotary is big production plan, here you can choose these following machines
2).If your factotary is common production plan, here you can choose these following machines:
Besides you buy the basic vertical production line, you also need to add some accesary machines, such as Butyl extruder machine, two component coating machine, alu-spacer cutting saw, glass adge polishing machine etc.
If you want to save some cost about the vertical production line, you can consider to by these basic machines is enough:
1).insulating glass/double glass/hollow glass production line, model: LB1800P
2). Butyl glue extruder machine, model : JT01
3).Two component glue coating machine, model: ST01
Rotary coating machine, model: SZT01 (this machine together work with the two component glue coating machine)
Here About the insulating glass second sealant glue, if you donot want to use the Two component sealant glue (Silicon glue or Polysulfide glue) coating machine, you can choose the hot melt sealant glue extruder machine also is ok, they can replace.
4).Glass edge polishing machine, model: SM95

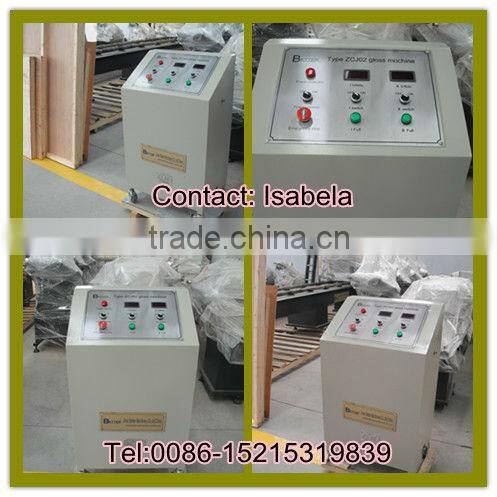

5).Argon filling machine, model:ZCJ02
9.Insulating glass/double glass/hollow glass/vacuum glass products sample
10. Contact information
Contact Person: Isabela
Jinan Better Machinery Co.,Ltd
Address: No.6 Lashan North Road., Jinan, China
Tel: 0086-531-85608516
Mobile No: 0086- 15215319839 (24H on Line)
Fax: 0086-531-61311202 Skype:isabela.liu
11.After-sale service
1). We will provide all spare parts needed for maintenance of the equipments.
2). During the period of guarantee, within 2 years, the seller we will be responsible for the damage due to the defects in designing and manufacturing.
3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you.
WHY YOU CHOOSE US Question AND Answer (If you see same 100% description in other company website on alibab, they copy us, please kindly check and compare.)
1.Question:Are your manufacture?
Answer:we are manufacture of the PVC window door machine, Aluminum window door machines, insulating glass machines.
2.Question:What’s the customer service ?
Answer:
1).reply within 12 hour
2).one to one service
3).24 hours for after -sale serive
3.Question:What’s the guarantee ?
Answer:
1).Our guarantee for 2 year.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
