New arrival egg tray plant / egg box making machine India / egg holder forming machine
- 1 Set / Sets per Month
- SHENZHEN GUANGZHOU SHANGHAI
- T/T
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
Condition: | New | Product Type: | Egg Tray Machine | Processing Type: | Pulp Molding Machine |
Place of Origin: | Hunan, China | Brand Name: | SH | Model Number: | SH-4000A |
Voltage: | 380V | Power(W): | 256.5KW | Dimension(L*W*H): | 2150X2674X2050MM |
Weight: | 2000KG | Certification: | CE | Warranty: | one year for free |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

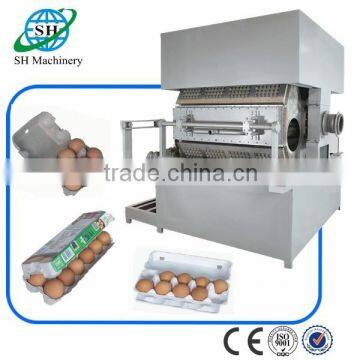

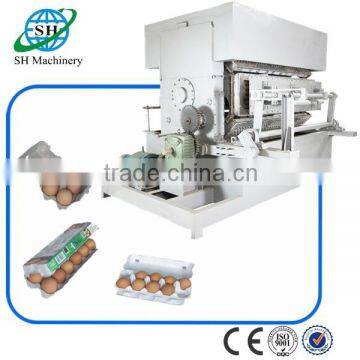

New arrival egg tray plant / egg box making machine India / egg holder forming machine
* Introduction of Egg Tray Machine
This machine is controlled by PLC, highly automation, easily learned, convenient services, and can widely use in different business.
It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial production packing. The equipment is best-selling nation and is sold abroad.
* Main Equipment of Egg Tray Machine
1. pulp molding system: Hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet of pulping system
2. forming system: Rotary forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet of forming system
3. drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc
4. packing system: Packing machine
* Specification of Egg Tray Machine
Capacity | Rotary forming machine | Single Drying Line | Multi Drying Line |
2000 pcs/h | 8 forming platens, platen size 1100 x 450mm | outline dimension 36X2.1X1.9M | outline dimension 12X1.9X3.5M |
3000 pcs/h | 8 forming platens, platen size 1450 x 450mm | outline dimension 40X2.4X1.9M | outline dimension 15X2.2X3.5M |
4000 pcs/h | 8 forming platens, platen size 1800 x 450mm | outline dimension 48X2.8X1.9 | outline dimension 18X2.6X3.5M |
Remarks: The capacity calculation takes the production of 30 cells egg trays as the standard. (Size 295X295MM, weight 75-80g)
* Advantages of Egg Tray Machine
1 | High automation, low labor cost |
2 | Low production cost |
3 | Energy saving(by 30%-50% compared with other manufacture) |
4 | Water saving(complete water treatment system equipped) |
5 | Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer) |
6 | Stable final product quality(same weight, same dimention, strong and good look) |
* Application of Egg Tray Machine
* Instructions of Egg Tray Machine
Pre-sales services
* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements and circumstance to make the best egg tray production line design
* cost/benefit analysis
* to support factory layout
* desigh and make egg tray sample (charge, but if you ordering can offset the purchase price)
In the sale of services
* we are in charge of installing,debugging and training
* technical guidance of frequently asked questions
After-sales service
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* calling, network or door-to-door service
* use friendly English software, user manual and detailed Videos/CD
Xiangtan Shuanghuan Machinery Development Co., Ltd was established in 1986 on the basis of Hunan Pulp Molded Factory that was known as the first company in this field. It’s engaged in research and production of pulp molding machine.
Our guarantees: providing the best services in order to satisfy every reasonable demands of customers, providing complete services including factory design, installment and debugging of machine until accomplishment of the conforming products.
Packaging
Wrapped with corrugated sheets ,then fixed by steel wires in the container.
Shipping
Capacity | Container(Single Drying Line) | Container(Multi Drying Line) |
2000 pcs/h | 4 40'HQ | 3 40'HQ |
3000 pcs/h | 4 40'HQ | 3 40'HQ |
4000 pcs/h | 5 40'HQ | 4 40'HQ |
* What the machine’s frequency, can it apply 60Hz?
Yes, our machine can use 50Hz and 60Hz.
* What is the raw material?
Generally, waste office paper,newspaper,old magazine, carton board and other kinds of waste paper material. We can also make use of waste pulp from paper machine factory.
* Which kind of fuel can be used in the drying system?
Electricity, 0# diesel oil, natural gas, LPG, coal and rice husk.
* Is there any requirements for the area?
Different production lines with different factory layouts. The higher capacity of the machine need larger spaces.
* Which kind of product can this machine make?

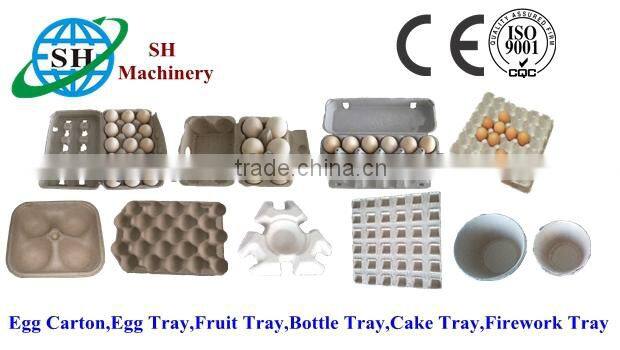

The machine can produce egg tray, egg carton, egg box, fruit tray and cup holder and so on. If you want to produce other paper industrial packages, we can design the different mold for you.
Welcome to contact with us!
1.Your enquiry will be replied in 24 working hrs.
2.Exclusive and unique solutions can be provided by our professional engineers.
3.ODM, we have professional staffs service you in fluent English.
